Metal Plate Leveling Decoiler Straightener Feeder 3 In 1 Material Frame Pressing Arm
Metal Plate Leveling Decoiler Straightener Feeder 3 In 1 Material Frame Pressing Arm
Metal Plate Leveling Decoiler Straightener Feeder 3 In 1 Material Frame Pressing Arm
Metal Plate Leveling Decoiler Straightener Feeder 3 In 1 Material Frame Pressing Arm
Metal Plate Leveling Decoiler Straightener Feeder 3 In 1 Material Frame Pressing Arm
Metal Plate Leveling Decoiler Straightener Feeder 3 In 1 Material Frame Pressing Arm
Metal Plate Leveling Decoiler Straightener Feeder 3 In 1 Material Frame Pressing Arm
Metal Plate Leveling Decoiler Straightener Feeder 3 In 1 Material Frame Pressing Arm
Specifications
Brand Name :
RUIHUI
Certification :
CE, ISO certification
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 Sets Per Month
Delivery Time :
30 work days
Packaging Details :
Wooden Box or Vacuum Packing
Stock Width(mm) :
50~600
Stock Thickness(mm) :
0.2~3.2
Line Speed(m/min) :
16~24
Coil Weight(Kg) :
3000/5000
Work Roll Number(Pcs) :
upper 6/lower 5
Main Motor(Kw) :
AC 4.5
Warranty Period :
12 Months
Description

Material frame pressing arm, metal plate leveling feeder, 3-in-1 feeder


3-in-1 feeder use precautions

1. Pressing arm part: When the material is placed on the rack, be sure to press the press arm and keep the press arm in the automatic state as much as possible, keep the automatic pressure maintaining function, and then remove the material packing strap. In addition, please control the arm.

2. Feeding feed arm press arm: The feed press arm has internal control of the touch screen. Controlling the feed press arm is the key to ensure smooth entry of the material into the machine head. Be sure to familiarize yourself with the operational procedures.

3. Leveling part: When the material is thicker and has a certain width, please increase the air pressure to make the leveling effect better.

4. Shelf part: When loading, please keep the material center line and the center of the rack, that is, the center line of the mold, so as to avoid the phenomenon of bias.

Products:

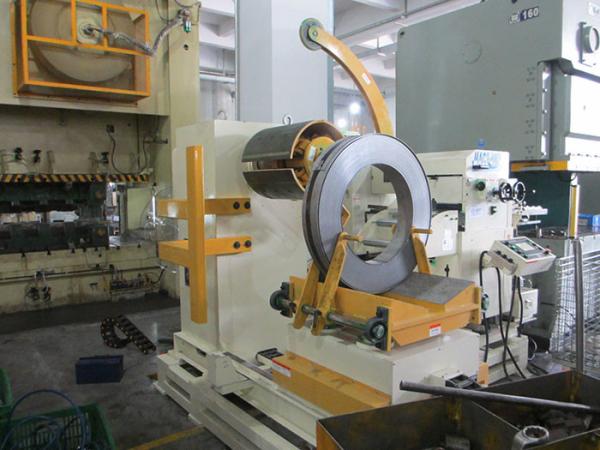

Metal Plate Leveling Decoiler Straightener Feeder 3 In 1 Material Frame Pressing Arm

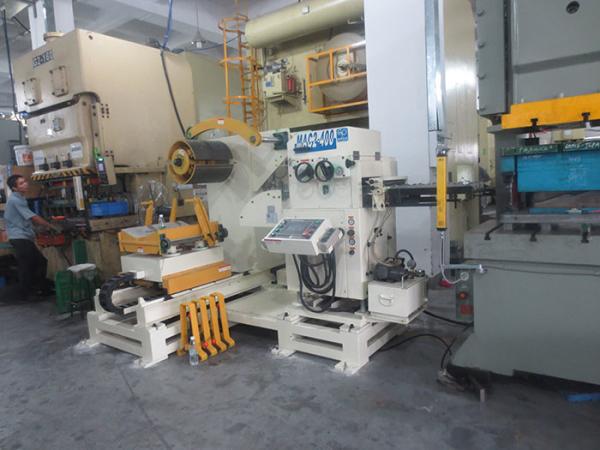

Metal Plate Leveling Decoiler Straightener Feeder 3 In 1 Material Frame Pressing Arm
Specification:

ModelMAC2-400MAC2-500MAC2-600MAC2-800
Stock Width(mm)50-40050-50050-60050-800
Stock Thickness(mm)0.3~3.20.3-3.20.3-3.2-3.2
Max.Coil Weight(kg)300030003000500050007000
Max.Coil O.D.(mm)120012001200
Coil I.D.(mm)88508508
Feed Length(mm)~500*~500*~500*~500*
Max. Line Speed(m/min)16-2416-2416-2416-24
Work Roll Number(pieces)upper 6
lower 5		upper 6
lower 5		upper 6
lower 5		upper 6
lower 5
Feed Roll Number(set)1111
Main Motor(kw)AC2.9AC2.9AC4.4AC4.4
Mandrel Expansionhydraulichydraulichydraulichydraulic
Reel Motor(kw)1.51.51.52.22.23.7
Power(V)3 Phase 220V/380V/50HZ
Operating Air(Mpa)0.490.490.490.49


Straigtening performance:

tock Thicknees (mm)Stock Width (mm)
0.3400500600800
0.4
0.6
0.8
1.0
1.2
1.4
1.6470470
1.8400400
2.0360360
2.3300300300300
2.5230230230230
2.8150150150150
3.2110110110110


*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi
Metal Plate Leveling Decoiler Straightener Feeder 3 In 1 Material Frame Pressing Arm
Metal Plate Leveling Decoiler Straightener Feeder 3 In 1 Material Frame Pressing Arm

1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.

2. After-Sales service:We have an efficient team to meet 24*7 all day service.

3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.

4. Engineers can provide service machinery overseas.
