Specifications
Brand Name :
RUIHUI
Certification :
CE, ISO certification
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 Sets Per Month
Delivery Time :
30 work days
Packaging Details :
Wooden Box or Vacuum Packing
Model Number :
MAC2-600
Price :
Negotiable
Stock Width(mm) :
50~600
Stock Thickness(mm) :
0.3-3.2
Line Speed(m/min) :
16~24
Coil Weight(Kg) :
3000/5000
Work Roll Number(Pcs) :
upper 6/lower 5
Main Motor(Kw) :
AC 4.5
Warranty Period :
12 Months
Use :
metal sheet coil feeder for stamping press
Condition :
New
Application :
Metal Process,Metal Stamping for household appliance,hardware
Control system :
PLC
Type :
Straightener Feeder & Uncoiler,Feeder Machine,Uncoiling Machine
Description

Stamping automated production line, receiving machine, metal foil roll

At present, the commonly used receiving machine in the stamping automatic production line only has a turntable mechanism to collect the stamped strip, for example: metal foil coil material, when the material is stamped, the entire strip is formed.

It is directly conveyed to the receiving tray on the turntable mechanism via the conveying device, and the take-up and receiving operation is performed by the receiving tray. When the tape is collected to a certain length, it is manually cut by the cutting device.

The horizontal automatic receiving machine can achieve the purpose of accurately collecting the tape, eliminating the need for segmentation, saving human resources and shortening the time for charging the tape, thereby improving the efficiency.

The horizontal automatic receiving machine is composed of a detecting device, a conveying device, a lifting device, a tape mechanism and a power mechanism.

When in use, firstly, the charging length of the tape is preset on the control panel of the fully automatic receiving machine, and the seat plate of the conveying device is formed in series with the upper turntable of the tape winding mechanism, and when the tape winding mechanism is operated, the volume is The upper turntable with mechanism starts to rotate.

The upper turntable can be rotated in the forward and reverse directions, so that the empty receiving tray of the upper turntable starts to perform the winding and receiving operation. At this time, the lower turntable of the take-up mechanism is stopped, and the strip after punching is empty. The receiving tray rotates.

It is transported by the detecting device to the conveying device, and then transported to the empty receiving tray by the conveying device. When the upper dial rotates too fast or too slow, or the strip is broken in the middle, it is sensed by the detector of the detecting device.

The sensed signal is transmitted to the control device, causing the control device to adjust the speed of the upper turntable or to stop the operation of the entire receiver to avoid damage to the receiver.

Products:

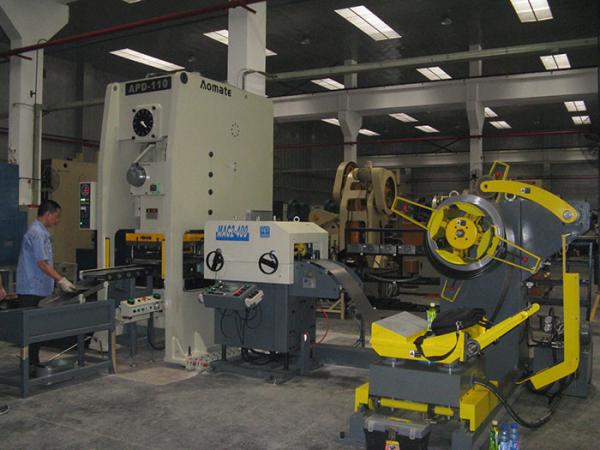

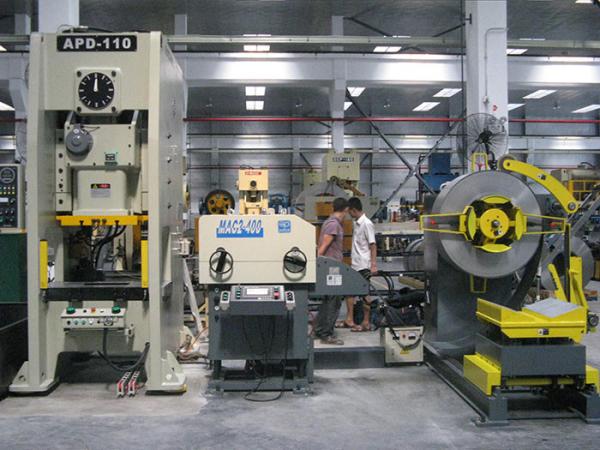

Metal Foil Roll Stamping Receiving Punching Press Machine Automated Production Line

Metal Foil Roll Stamping Receiving Punching Press Machine Automated Production Line

Specification:

Model MAC2-400 MAC2-500 MAC2-600 MAC2-800
Stock Width(mm) 50-400 50-500 50-600 50-800
Stock Thickness(mm) 0.3~3.2 0.3-3.2 0.3-3.2 -3.2
Max.Coil Weight(kg) 3000 3000 3000 5000 5000 7000
Max.Coil O.D.(mm) 1200 1200 1200
Coil I.D.(mm) 8 8 508 508
Feed Length(mm) ~500* ~500* ~500* ~500*
Max. Line Speed(m/min) 16-24 16-24 16-24 16-24
Work Roll Number(pieces) upper 6
lower 5		 upper 6
lower 5		 upper 6
lower 5		 upper 6
lower 5
Feed Roll Number(set) 1 1 1 1
Main Motor(kw) AC2.9 AC2.9 AC4.4 AC4.4
Mandrel Expansion hydraulic hydraulic hydraulic hydraulic
Reel Motor(kw) 1.5 1.5 1.5 2.2 2.2 3.7
Power(V) 3 Phase 220V/380V/50HZ
Operating Air(Mpa) 0.49 0.49 0.49 0.49


Straigtening performance:

tock Thicknees (mm) Stock Width (mm)
0.3 400 500 600 800
0.4
0.6
0.8
1.0
1.2
1.4
1.6 470 470
1.8 400 400
2.0 360 360
2.3 300 300 300 300
2.5 230 230 230 230
2.8 150 150 150 150
3.2 110 110 110 110


*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

Metal Foil Roll Stamping Receiving Punching Press Machine Automated Production Line
Metal Foil Roll Stamping Receiving Punching Press Machine Automated Production Line

1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.

2. After-Sales service:We have an efficient team to meet 24*7 all day service.

3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.

4. Engineers can provide service machinery overseas.
