Specifications
Brand Name :
RUIHUI
Certification :
CE, ISO certification
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 Sets Per Month
Delivery Time :
30 work days
Packaging Details :
Wooden Box or Vacuum Packing
Stock Width(mm) :
50~600
Stock Thickness(mm) :
0.2~3.2
Line Speed(m/min) :
16~24
Coil Weight(Kg) :
3000/5000
Work Roll Number(Pcs) :
upper 6/lower 5
Main Motor(Kw) :
AC 4.5
Warranty Period :
12 Months
Description

Extrusion molding process, fully automatic speed control heavy material rack, feeder

The fully automatic speed control heavy-duty material frame is a heavy-duty material frame developed by Ruihui Machinery for precise control of the unwinding speed. It converts the traditional control of the induction frame to the inverter and three sets of switches for control.

The photoelectric switch is connected with the frequency converter, and the frequency converter is connected with the speed reduction motor. After the photoelectric switch detects the degree of sagging of the plate, a control signal is sent to the frequency converter, and the frequency converter receives the control signal and then controls the speed reduction motor to increase the speed of the speed reduction motor. Slow down or reverse.

It can control the production speed of the material rack in real time, control the unwinding speed of the motor through the frequency converter, make the stop or start action of the heavy material rack smooth, work stably, and the highest unwinding speed can reach 50m/min, which meets the high speed and high precision of the material rack. condition.

Real-time control of the degree of sagging of the sheet can fundamentally solve the problem of unwinding or punching of the material.

The sag of the unwinding plate is greatly lower than the normal sag, causing the plate to block the third group of photoelectrics. The photoelectric switch sends a control signal to the inverter, and the inverter controls the deceleration motor to rotate the rotating shaft to rewind the excess plate.

Products:

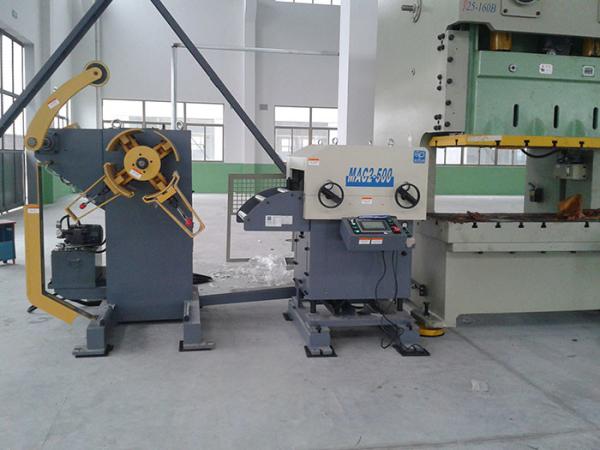

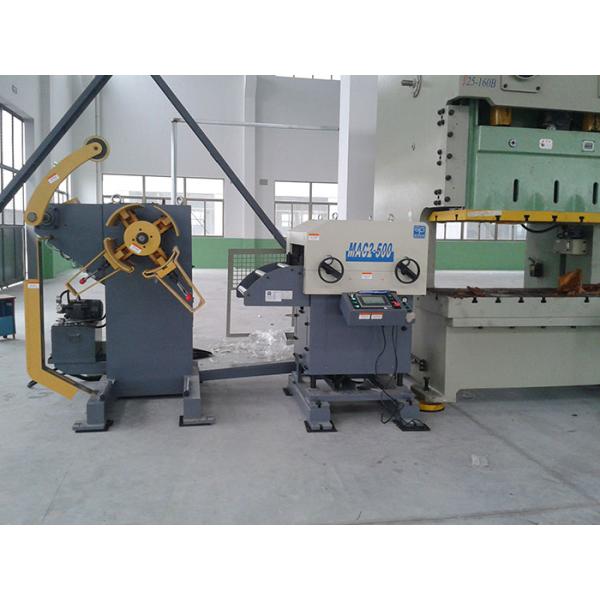

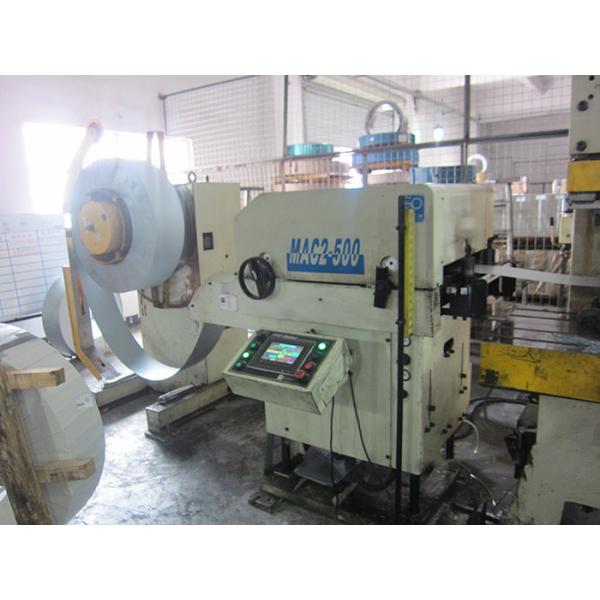

Extrusion Molding Process Heavy Material Rack Feeder Fully Automatic Speed Control

Extrusion Molding Process Heavy Material Rack Feeder Fully Automatic Speed Control

Specification:

Model MAC2-400 MAC2-500 MAC2-600 MAC2-800
Stock Width(mm) 50-400 50-500 50-600 50-800
Stock Thickness(mm) 0.3~3.2 0.3-3.2 0.3-3.2 -3.2
Max.Coil Weight(kg) 3000 3000 3000 5000 5000 7000
Max.Coil O.D.(mm) 1200 1200 1200
Coil I.D.(mm) 8 8 508 508
Feed Length(mm) ~500* ~500* ~500* ~500*
Max. Line Speed(m/min) 16-24 16-24 16-24 16-24
Work Roll Number(pieces) upper 6
lower 5		 upper 6
lower 5		 upper 6
lower 5		 upper 6
lower 5
Feed Roll Number(set) 1 1 1 1
Main Motor(kw) AC2.9 AC2.9 AC4.4 AC4.4
Mandrel Expansion hydraulic hydraulic hydraulic hydraulic
Reel Motor(kw) 1.5 1.5 1.5 2.2 2.2 3.7
Power(V) 3 Phase 220V/380V/50HZ
Operating Air(Mpa) 0.49 0.49 0.49 0.49


Straigtening performance:

tock Thicknees (mm) Stock Width (mm)
0.3 400 500 600 800
0.4
0.6
0.8
1.0
1.2
1.4
1.6 470 470
1.8 400 400
2.0 360 360
2.3 300 300 300 300
2.5 230 230 230 230
2.8 150 150 150 150
3.2 110 110 110 110


*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi
Extrusion Molding Process Heavy Material Rack Feeder Fully Automatic Speed Control
Extrusion Molding Process Heavy Material Rack Feeder Fully Automatic Speed Control

1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.

2. After-Sales service:We have an efficient team to meet 24*7 all day service.

3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.

4. Engineers can provide service machinery overseas.
