Copper Based Alloy Die Stamping NC Feeder Machine Punch Automated Processing
Copper Based Alloy Die Stamping NC Feeder Machine Punch Automated Processing
Copper Based Alloy Die Stamping NC Feeder Machine Punch Automated Processing
Copper Based Alloy Die Stamping NC Feeder Machine Punch Automated Processing
Copper Based Alloy Die Stamping NC Feeder Machine Punch Automated Processing
Copper Based Alloy Die Stamping NC Feeder Machine Punch Automated Processing
Copper Based Alloy Die Stamping NC Feeder Machine Punch Automated Processing
Copper Based Alloy Die Stamping NC Feeder Machine Punch Automated Processing
Specifications
Brand Name :
RUIHUI
Certification :
CE, ISO certification
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 Sets Per Month
Delivery Time :
30 work days
Packaging Details :
Wooden Box or Vacuum Packing
Stock Width(mm) :
50~600
Stock Thickness(mm) :
0.2~3.2
Line Speed(m/min) :
16~24
Coil Weight(Kg) :
3000/5000
Work Roll Number(Pcs) :
upper 6/lower 5
Main Motor(Kw) :
AC 4.5
Warranty Period :
12 Months
Description

Punch automated processing, copper-based alloy die stamping, NC feeder

With the improvement of the quality and automation of punching, sheet metal stamping is developing towards high speed and high precision, and CNC punching machine can meet this demand.

The rotary encoder on the precision punching machine can detect the specific position of the crankshaft of the punching machine. At different positions, the controller feeds the NC feeder to feed, relax, return, and clamp the material, and complete the feeding action with high precision.

It has changed the problem that the conventional feeding device often appears to be untimely and inaccurate in the relaxation movement. The punching automatic production line is matched with the punch encoder by the NC feeder, which can optimize the entire feeding process, increase the range of servo feeding, save energy and extend the service life of the equipment.

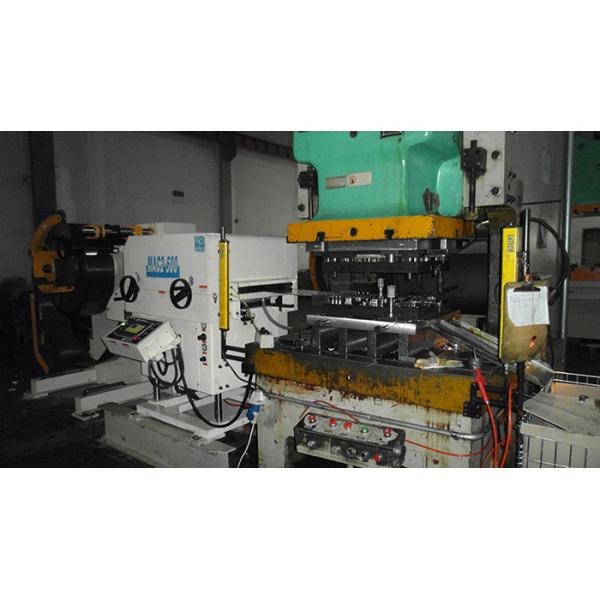

When the NC feeder is used with a precision punch, the punch crankshaft allows the NC feeder to feed at a 240° clockwise to 90° range. At 240°, the feeding action starts and follows the current angle of the punch to drive the feeder in a timely and even manner.

When the crank is running to 90°, the feeding is completed. Feeding in this way, the feed time makes full use of the entire feed interval. The servo drive drive current is small and the change is small, so that the energy loss is small. At the same time, the NC feeder receives less impact, slower wear, less feeder failure, and greatly improved service life.

Products:

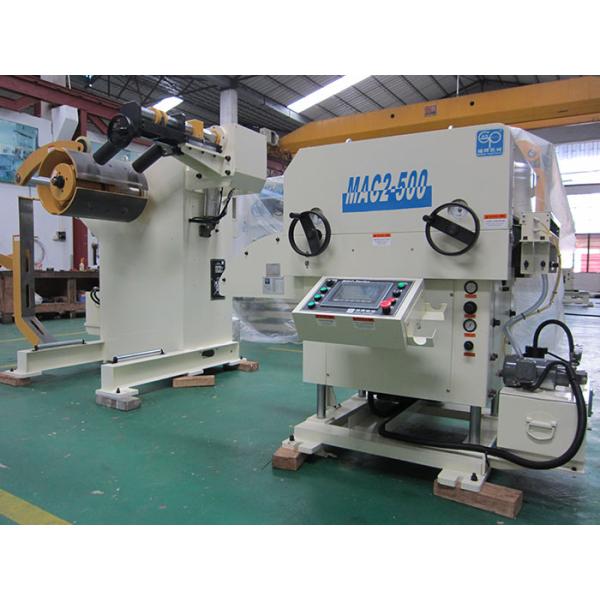

Copper Based Alloy Die Stamping NC Feeder Machine Punch Automated Processing

Copper Based Alloy Die Stamping NC Feeder Machine Punch Automated Processing

Specification:

Model MAC2-400 MAC2-500 MAC2-600 MAC2-800
Stock Width(mm) 50-400 50-500 50-600 50-800
Stock Thickness(mm) 0.3~3.2 0.3-3.2 0.3-3.2 -3.2
Max.Coil Weight(kg) 3000 3000 3000 5000 5000 7000
Max.Coil O.D.(mm) 1200 1200 1200
Coil I.D.(mm) 8 8 508 508
Feed Length(mm) ~500* ~500* ~500* ~500*
Max. Line Speed(m/min) 16-24 16-24 16-24 16-24
Work Roll Number(pieces) upper 6
lower 5		 upper 6
lower 5		 upper 6
lower 5		 upper 6
lower 5
Feed Roll Number(set) 1 1 1 1
Main Motor(kw) AC2.9 AC2.9 AC4.4 AC4.4
Mandrel Expansion hydraulic hydraulic hydraulic hydraulic
Reel Motor(kw) 1.5 1.5 1.5 2.2 2.2 3.7
Power(V) 3 Phase 220V/380V/50HZ
Operating Air(Mpa) 0.49 0.49 0.49 0.49


Straigtening performance:

tock Thicknees (mm) Stock Width (mm)
0.3 400 500 600 800
0.4
0.6
0.8
1.0
1.2
1.4
1.6 470 470
1.8 400 400
2.0 360 360
2.3 300 300 300 300
2.5 230 230 230 230
2.8 150 150 150 150
3.2 110 110 110 110


*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi
Copper Based Alloy Die Stamping NC Feeder Machine Punch Automated Processing
Copper Based Alloy Die Stamping NC Feeder Machine Punch Automated Processing

1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.

2. After-Sales service:We have an efficient team to meet 24*7 all day service.

3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.

4. Engineers can provide service machinery overseas.
