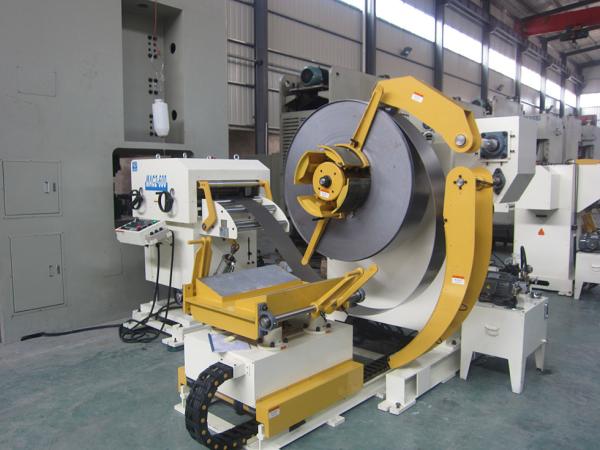

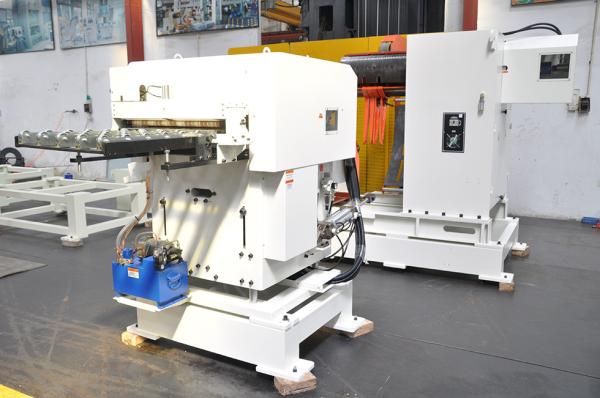

Automatic Trolley Mandrel Expansion Metal Sheet Feeder Decoiler & Straightening Machine

For stamping with a single die, it is usually not necessary to equip the press with automated feeding equipment. However, the press feeder is an indispensable device when using a progressive die for continuous press processing.

At present, the punch feeders used in continuous stamping production mainly include air, roller and NC feeder. Although the air feeder is low in price, it is gradually eliminated by the market due to its high failure rate, low precision and high maintenance cost.

Although the NC feeder has stable performance and convenient operation, it needs to be fed by servo motor, and the price is relatively high. It cannot be accepted by most customers. At this time, the roller feeder has high precision, low failure and easy maintenance. The advantages of additional energy consumption have become the most used feeding equipment in the stamping industry.

In actual use, fix the roller feeder with the mounting plate on the side center of the die on the punching table, fix the relaxation device on the slider, and let the loosening screw just press the extension of the relaxation bracket, and use the eccentric disk for the eccentric disk. The mount is mounted on the punch output shaft, and the connecting rod, rocker arm and body are all installed.

According to the width and thickness requirements of the material, the material thickness, feeding time, feeding distance and relaxation of the roller feeder can be adjusted, and then the inching test and single-action test can be carried out to carry out high-precision continuous automatic production.

Specification:

Straigtening performance:

*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi
