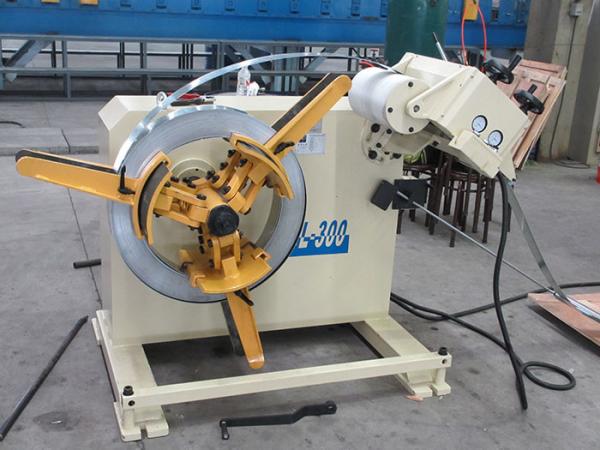

Nc Straightener Feeder Forming Metal Machine / Precision Leveling Machine
Nc Straightener Feeder Forming Metal Machine / Precision Leveling Machine
Nc Straightener Feeder Forming Metal Machine / Precision Leveling Machine
Nc Straightener Feeder Forming Metal Machine / Precision Leveling Machine
Nc Straightener Feeder Forming Metal Machine / Precision Leveling Machine
Nc Straightener Feeder Forming Metal Machine / Precision Leveling Machine
Nc Straightener Feeder Forming Metal Machine / Precision Leveling Machine
Nc Straightener Feeder Forming Metal Machine / Precision Leveling Machine
Specifications
Brand Name :
RUIHUI
Certification :
CE, ISO certification
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 Sets Per Month
Delivery Time :
30 work days
Packaging Details :
Wooden Box or Vacuum Packing
Condition :
New
After-sales Service Provided :
Field maintenance and repair service, Engineers available to service machinery overseas
Product name :
NC Servo Feeder
Name :
NC Servo Feeder
Stock width :
20-1000mm
Stock thickness :
0.3-3.2mm
Releasing Performance :
-80
Motor :
Yaskawa
Bearing :
Japan NSK
Power :
3Phase 220V/380V/50HZ
Description
Material Feeder, Forming Metal Machine, Nc Straightener Feeder, Bed feeder, Precision leveling machine

http://www.ruihui.net

Preventive advice for servo feeder feed inaccuracy
1. Whether the air pressure is unstable or not, you can check it out. This mainly refers to the air feeder. This has been highlighted above.
2. Is the feeder speed too fast? Generally speaking, the servo feeder is at most 150-200 in one minute. If you play too much, the feeder can't keep up, it is easy to cause the feed to be inaccurate.
3. Is there a problem with the mold? You can try to manually check the product to see if there is a problem with the mold.
4. Check if the feeder has air leakage (depending on pneumatic relaxation or mechanical relaxation).
5. Relaxation is not good enough, that is to say, whether the cooperation between the punching cam and the feeder is synchronized. If you can't relax, try adjusting the punch cam or the feed box.

6. Whether the material is too oily, it is easy to cause the feeding to slip.
Nc Straightener Feeder Forming Metal Machine / Precision Leveling Machine
Specification:

ModelMAC2-400MAC2-500MAC2-600MAC2-800
Stock Width(mm)50-40050-50050-60050-800
Stock Thickness(mm)0.3~3.20.3-3.20.3-3.2-3.2
Max.Coil Weight(kg)300030003000500050007000
Max.Coil O.D.(mm)120012001200
Coil I.D.(mm)88508508
Feed Length(mm)~500*~500*~500*~500*
Max. Line Speed(m/min)16-2416-2416-2416-24
Work Roll Number(pieces)upper 6
lower 5		upper 6
lower 5		upper 6
lower 5		upper 6
lower 5
Feed Roll Number(set)1111
Main Motor(kw)AC2.9AC2.9AC4.4AC4.4
Mandrel Expansionhydraulichydraulichydraulichydraulic
Reel Motor(kw)1.51.51.52.22.23.7
Power(V)3 Phase 220V/380V/50HZ
Operating Air(Mpa)0.490.490.490.49


Straigtening performance:

tock Thicknees (mm)Stock Width (mm)
0.3400500600800
0.4
0.6
0.8
1.0
1.2
1.4
1.6470470
1.8400400
2.0360360
2.3300300300300
2.5230230230230
2.8150150150150
3.2110110110110


*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi
Nc Straightener Feeder Forming Metal Machine / Precision Leveling Machine
Nc Straightener Feeder Forming Metal Machine / Precision Leveling Machine

1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.
2. After-Sales service:We have an efficient team to meet 24*7 all day service.
3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
4. Engineers can provide service machinery overseas.
