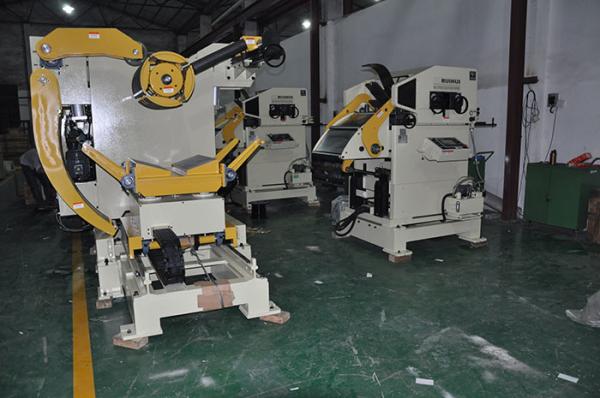

Metal Parts Stamping Automatic Feeding Equipment / Feeder Car Alarms Sheet Straightening Machine
Metal Parts Stamping Automatic Feeding Equipment / Feeder Car Alarms Sheet Straightening Machine
Metal Parts Stamping Automatic Feeding Equipment / Feeder Car Alarms Sheet Straightening Machine
Metal Parts Stamping Automatic Feeding Equipment / Feeder Car Alarms Sheet Straightening Machine
Metal Parts Stamping Automatic Feeding Equipment / Feeder Car Alarms Sheet Straightening Machine
Metal Parts Stamping Automatic Feeding Equipment / Feeder Car Alarms Sheet Straightening Machine
Specifications
Brand Name :
RUIHUI
Certification :
CE, ISO certification
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 Sets Per Month
Delivery Time :
30 work days
Packaging Details :
Wooden Box or Vacuum Packing
Condition :
New
Stock width :
20~300mm
Stock thickness :
0.3~3.2mm
Stock thickness*Stock width :
2.0*200/3.2*80
Pass line :
70~170mm
Releasing Performance :
~80
Motor :
Yaskawa
Bearing :
Japan NSK
Main Motor :
AC0.75
After-sales Service Provided :
Engineers available to service machinery overseas
Description
Metal Parts Stamping, Automatic Feeding Equipment, Feeder Car Alarms, Punching Machines, Manual Lathe
www.ruihui.net
The yaw NC feeder adopts the servo motor to control the feeding and the left and right displacement. The operator only needs to input the width of the material and the diameter of the blanking on the touch screen of the Ruihui yaw NC feeder. The PLC in the electric box will automatically calculate the most.
The distance between the moving and feeding materials is automatically realized to achieve round and round cutting. It is the most practical and efficient feeding equipment for wafer stamping production.

Common faults and solutions for feeders.
First, the feeder is very vibrating during operation.
Reasons: 1. The raw material is too curved, the raw material is not chamfered 3. and the center is dislocated.
Solution: 1. try to buy straight material 2. material tail chamfer 3. re-calibration center.
Second, the pressure is insufficient.
Reasons: 1. The amount of hydraulic oil is insufficient 2. The motor is working normally. 3. The filter is clogged 4. The seal is damaged.
Solution: 1. Replenish hydraulic oil 2. Check circuit connection 3. Replace filter core 4. Replace seal ring.
Third, can not start.
Cause: The power is not connected.
Solution: Check if the power supply is connected.
Metal Parts Stamping Automatic Feeding Equipment / Feeder Car Alarms Sheet Straightening Machine
Specification:

ModelMAC2-400MAC2-500MAC2-600MAC2-800
Stock Width(mm)50-40050-50050-60050-800
Stock Thickness(mm)0.3~3.20.3-3.20.3-3.2-3.2
Max.Coil Weight(kg)300030003000500050007000
Max.Coil O.D.(mm)120012001200
Coil I.D.(mm)88508508
Feed Length(mm)~500*~500*~500*~500*
Max. Line Speed(m/min)16-2416-2416-2416-24
Work Roll Number(pieces)upper 6
lower 5		upper 6
lower 5		upper 6
lower 5		upper 6
lower 5
Feed Roll Number(set)1111
Main Motor(kw)AC2.9AC2.9AC4.4AC4.4
Mandrel Expansionhydraulichydraulichydraulichydraulic
Reel Motor(kw)1.51.51.52.22.23.7
Power(V)3 Phase 220V/380V/50HZ
Operating Air(Mpa)0.490.490.490.49


Straigtening performance:

tock Thicknees (mm)Stock Width (mm)
0.3400500600800
0.4
0.6
0.8
1.0
1.2
1.4
1.6470470
1.8400400
2.0360360
2.3300300300300
2.5230230230230
2.8150150150150
3.2110110110110


*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi
Metal Parts Stamping Automatic Feeding Equipment / Feeder Car Alarms Sheet Straightening Machine
Metal Parts Stamping Automatic Feeding Equipment / Feeder Car Alarms Sheet Straightening Machine

1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.
2. After-Sales service:We have an efficient team to meet 24*7 all day service.
3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
4. Engineers can provide service machinery overseas.
