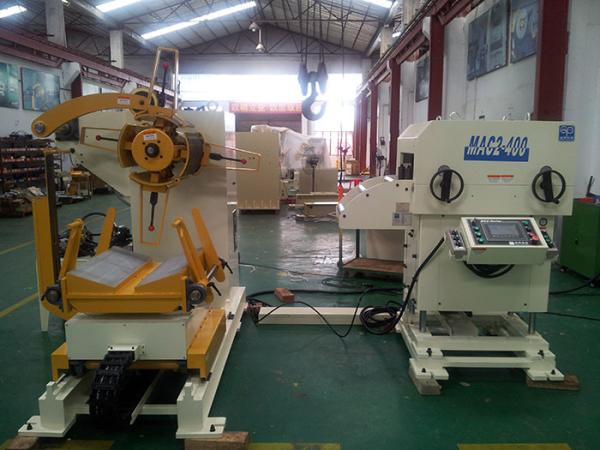

MAC Punch Three - In - One Feeder Hydraulic Parts Stamping , Strip Straightening Machine
MAC Punch Three - In - One Feeder Hydraulic Parts Stamping , Strip Straightening Machine
MAC Punch Three - In - One Feeder Hydraulic Parts Stamping , Strip Straightening Machine
MAC Punch Three - In - One Feeder Hydraulic Parts Stamping , Strip Straightening Machine
MAC Punch Three - In - One Feeder Hydraulic Parts Stamping , Strip Straightening Machine
MAC Punch Three - In - One Feeder Hydraulic Parts Stamping , Strip Straightening Machine
Specifications
Brand Name :
RUIHUI
Certification :
ISO9001:2008
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 Sets Per Month
Delivery Time :
30 work days
Packaging Details :
Wooden Box or Vacuum Packing
Condition :
New
Type :
Uncoiling Machine
Use :
Sheet
Voltage :
380V 50Hz
Power(W) :
2.0KW
Dimension(L*W*H) :
1400*1800*1700
Weight :
1.5-11T
Warranty :
1 Year
Material width :
50-400mm
material thickness :
0.3-2.3mm
coil weight :
3000kg
work roll number :
Upper 4 /down 3
Feed roll number :
1
Material :
metal
Power :
380V/50HZ
Description
Three-in-One Feeder, Hydraulic Parts Stamping, Guangdong Strip Straightening Machine, Ruihui MAC punch feeder
www.ruihui.net

The three-in-one feeder is a fully automatic feeding device for feeding, rectifying and material racking, high-tech, high-precision and high-efficiency equipment. And the three-in-one feeder has many functions and advantages, saves space, is durable, and has simple operation. It is especially effective for extra long, extra wide and thick materials.

1. The three-in-one feeder adopts computer NC control system, which is more user-friendly design. It is suitable for feeding and correcting all kinds of metal sheets. It is suitable for a wide range of materials from 0.3-6.0 thick, designed for space saving and easy operation.

2. three-in-one feeder is suitable for continuous stamping processing of various hardware, electronics, electrical appliances, toys and auto parts, feeding correction, accurate and durable; material roll device, using oil pressure expansion, material is sent to the die, no manual entry Material, labor saving, high safety.

3. The three-in-one feeder adopts imported Japanese servo motor, electrical box electronic parts and controller, etc. The product has low failure rate and long service life.

4. three-in-one feeder simple structure design, maintenance, management are simple, and enhance the safety of the operator's work; roller chrome plating, high precision, very durable.

5. The three-in-one feeder can set the feeding length arbitrarily, the operation is easy, the safety and stability are high, and the front end of the coil is flattened to facilitate the material to enter the roller. The motor drives the press arm device to keep the material from loose.

MAC Punch Three - In - One Feeder Hydraulic Parts Stamping , Strip Straightening Machine

Specification:

Model MAC2-400 MAC2-500 MAC2-600 MAC2-800
Stock Width(mm) 50-400 50-500 50-600 50-800
Stock Thickness(mm) 0.3~3.2 0.3-3.2 0.3-3.2 -3.2
Max.Coil Weight(kg) 3000 3000 3000 5000 5000 7000
Max.Coil O.D.(mm) 1200 1200 1200
Coil I.D.(mm) 8 8 508 508
Feed Length(mm) ~500* ~500* ~500* ~500*
Max. Line Speed(m/min) 16-24 16-24 16-24 16-24
Work Roll Number(pieces) upper 6
lower 5		 upper 6
lower 5		 upper 6
lower 5		 upper 6
lower 5
Feed Roll Number(set) 1 1 1 1
Main Motor(kw) AC2.9 AC2.9 AC4.4 AC4.4
Mandrel Expansion hydraulic hydraulic hydraulic hydraulic
Reel Motor(kw) 1.5 1.5 1.5 2.2 2.2 3.7
Power(V) 3 Phase 220V/380V/50HZ
Operating Air(Mpa) 0.49 0.49 0.49 0.49


Straigtening performance:

tock Thicknees (mm) Stock Width (mm)
0.3 400 500 600 800
0.4
0.6
0.8
1.0
1.2
1.4
1.6 470 470
1.8 400 400
2.0 360 360
2.3 300 300 300 300
2.5 230 230 230 230
2.8 150 150 150 150
3.2 110 110 110 110


*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi
MAC Punch Three - In - One Feeder Hydraulic Parts Stamping , Strip Straightening Machine
MAC Punch Three - In - One Feeder Hydraulic Parts Stamping , Strip Straightening Machine

1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.
2. After-Sales service:We have an efficient team to meet 24*7 all day service.
3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
4. Engineers can provide service machinery overseas.
