Decorative Stainless Steel Architectural Mesh X Tend Webnet With Smooth Surface
Decorative Stainless Steel Architectural Mesh X Tend Webnet With Smooth Surface
Decorative Stainless Steel Architectural Mesh X Tend Webnet With Smooth Surface
Decorative Stainless Steel Architectural Mesh X Tend Webnet With Smooth Surface
Specifications
Brand Name :
Yuntong
Model Number :
YT-2450
Certification :
CE Certificate,SGS
Place of Origin :
Hebei,China
MOQ :
10 square meters
Payment Terms :
T/T, , Western Union, Papal,
Supply Ability :
1000000 square meters per year
Delivery Time :
Within 2 weeks after detail confirms
Packaging Details :
Plastic foam and carton box for inner packing,Fumigated wooden cases for outer packing.
name :
architectural stainless steel wire mesh
Wire diameter :
1.2mm-3.2mm
Mesh Aperture :
25x25-200x200mm
Cable Structure :
1*7,7*7,7*19,1*19
Usage :
aviary netting,animal enclosure
Feature :
High durability,temperature tolerance,smooth surface
Type :
Woven Type and Ferrule Type
Description

Metal Mesh Architectural Decorative Wire Mesh X-tend Webnet

Introduction of Metal Mesh Architectural Decorative Wire Mesh X-tend Webnet:

The stainless steel rope mesh is manufactured using a unique hand-woven interlocking technique from standard 7” x 7” and 7" x 19" ,stainless steel cable to create diamond openings from 1” through 4”.

Specification of Metal Mesh Architectural Decorative Wire Mesh X-tend Webnet:

  • Material : Stainless steel 304,304L,316,306L etc.
  • Ferrules Material : Tinned-copper,Nickel-plated copper, Stainless steel etc.
  • Cable construction and Diameter : 7x7 (Dia.: 1.2 - 2.5mm), 7x19 (Dia.: 3.0 - 4.0mm)

Mesh Types of Metal Mesh Architectural Decorative Wire Mesh X-tend Webnet:


The S.S cable mesh are handmade from the stainless steel wire rope, there are two types: knotted mesh and ferruled mesh

  • Kontted mesh is a kind of plain weave, each wrap wire rope crosses alternately above and below each weft wire rope, warp and weft wire ropes generally have the same diameter.
  • Ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.
YT-Metal Mesh Architectural Decorative Wire Mesh X-tend Webnet
Model Wire Diameter Mesh Opening Normal Break
inch mm inch mm 1bs.
YT-1220 3/64 1.2 4/5 x 4/5 20 x 20 270
YT-1225 3/64 1.2 1x1 25.4 x 25.4 270
YT-1230 3/64 1.2 1.2 x 1.2 30 x 30 270
YT-1238 3/64 1.2 3/2 x 3/2 38 x 38 270
YT-1625 1/16 1.6 1 x 1 25.4 x 25.4 480
YT-1630 1/16 1.6 1.2 x 1.2 30 x 30 480
YT-1638 1/16 1.6 3/2 x 3/2 38 x 38 480
YT-1650 1/16 1.6 2 x 2 51 x 51 480
YT-1676 1/16 1.6 3 x 3 76 x 76 480
YT-2038 5/64 2.0 3/2 x 3/2 38 x 38 676
YT-2050 5/64 2.0 2 x 2 51 x 51 676
YT-2060 5/64 2.0 2.4 x 2.4 60 x 60 676
YT-2076 5/64 2.0 3 x 3 76 x 76 676
YT-2450 3/32 2.4 2 x 2 51 x 51 920
YT-2460 3/32 2.4 2.4 x 2.4 60 x 60 920
YT-2476 3/32 2.4 3 x 3 76 x 76 920
YT-2490 3/32 2.4 3.55 x 3.55 90 x 90 920
YT-2410 3/32 2.4 4 x 4 102 x 102 920
YT-3250 1/8 3.2 2 x 2 51 x 51 1600
YT-3276 1/8 3.2 3 x 3 76 x 76 1600
YT-3290 1/8 3.2 3.55 x 3.55 90 x 90 1600
YT-3210 1/8 3.2 4 x 4 102 x 102 1600
YT-3212 1/8 3.2 4.75 x 4.75 120 x 120 1600

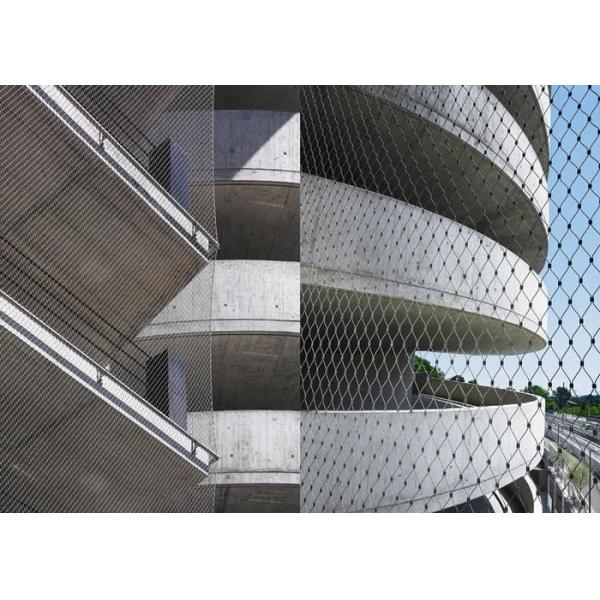

Applications of Metal Mesh Architectural Decorative Wire Mesh X-tend Webnet:

Our stainless steel architectural rope mesh is an extremely strong containment netting suitable for smaller mammals, primates and large birds. Individual mesh knots are double fastened and the netting does not have to be installed under tension.
