Architectural Stainless Steel Wire Rope Mesh / Hand Woven Rope Mesh For Swimming Pools
Architectural Stainless Steel Wire Rope Mesh / Hand Woven Rope Mesh For Swimming Pools
Architectural Stainless Steel Wire Rope Mesh / Hand Woven Rope Mesh For Swimming Pools
Architectural Stainless Steel Wire Rope Mesh / Hand Woven Rope Mesh For Swimming Pools
Specifications
Brand Name :
Yuntong
Model Number :
YT-2050
Certification :
CE & SGS
Place of Origin :
Hebei,China
MOQ :
10 square meters
Price :
Negotiable
Payment Terms :
T/T, , Western Union, L/C
Supply Ability :
1000000 square meters per year
Delivery Time :
Within 2 weeks after detail confirms
Packaging Details :
Plastic foam and carton box for inner packing,Fumigated wooden cases for outer packing.
Material :
stainless steel 304,316,316L
Wire diameter :
1.2mm-3.2mm
Mesh Aperture :
25x25-200x200mm
Cable Structure :
1*7,7*7,7*19,1*19
Usage :
aviary netting,animal enclosure
Feature :
High durability,temperature tolerance,smooth surface
Type :
Woven Type and Ferrule Type
name :
stainless steel architectural mesh
Description

Stainless Steel Architectural Hand Woven Rope Mesh for Swimming Pools

Brief Introduction of Stainless Steel Architectural Hand Woven Rope Mesh for Swimming Pools:

Pliable, transparent grid structures made of stainless steel rope from the YT series are multifunctional and durable: mounted on railings or in staircases, they provide support and guidance; on facades, they can be used as training systems for plants; in large rooms, they will create subtle accents as filigreed partitions. The Stainless Steel Rope Mesh was subjected to numerous tests and complies with all applicable standards: As a permanent protective and safety net for bridges or observation platforms, it is absolutely UV- and weather-resistant, unlike conventional knotted plastic fiber nets.

Structure of Stainless Steel Architectural Hand Woven Rope Mesh for Swimming Pools:

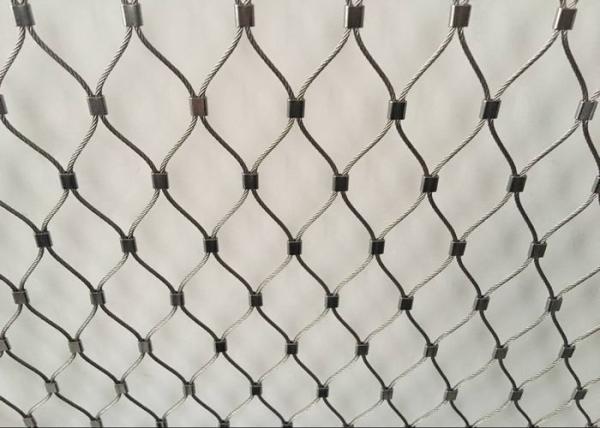

The stainless steel rope mesh is manufactured using a unique hand-woven interlocking technique from standard 7” x 7” and 7" x 19" ,stainless steel cable to create diamond openings from 1” through 4”.

Specification of Stainless Steel Architectural Hand Woven Rope Mesh for Swimming Pools:

YT-Stainless Steel Architectural Hand Woven Rope Mesh for Swimming Pools
Model Wire Diameter Mesh Opening Normal Break
inch mm inch mm 1bs.
YT-1220 3/64 1.2 4/5 x 4/5 20 x 20 270
YT-1225 3/64 1.2 1x1 25.4 x 25.4 270
YT-1230 3/64 1.2 1.2 x 1.2 30 x 30 270
YT-1238 3/64 1.2 3/2 x 3/2 38 x 38 270
YT-1625 1/16 1.6 1 x 1 25.4 x 25.4 480
YT-1630 1/16 1.6 1.2 x 1.2 30 x 30 480
YT-1638 1/16 1.6 3/2 x 3/2 38 x 38 480
YT-1650 1/16 1.6 2 x 2 51 x 51 480
YT-1676 1/16 1.6 3 x 3 76 x 76 480
YT-2038 5/64 2.0 3/2 x 3/2 38 x 38 676
YT-2050 5/64 2.0 2 x 2 51 x 51 676
YT-2060 5/64 2.0 2.4 x 2.4 60 x 60 676
YT-2076 5/64 2.0 3 x 3 76 x 76 676
YT-2450 3/32 2.4 2 x 2 51 x 51 920
YT-2460 3/32 2.4 2.4 x 2.4 60 x 60 920
YT-2476 3/32 2.4 3 x 3 76 x 76 920
YT-2490 3/32 2.4 3.55 x 3.55 90 x 90 920
YT-2410 3/32 2.4 4 x 4 102 x 102 920
YT-3250 1/8 3.2 2 x 2 51 x 51 1600
YT-3276 1/8 3.2 3 x 3 76 x 76 1600
YT-3290 1/8 3.2 3.55 x 3.55 90 x 90 1600
YT-3210 1/8 3.2 4 x 4 102 x 102 1600
YT-3212 1/8 3.2 4.75 x 4.75 120 x 120 1600

Service of Yuntong

Yuntong is experienced in manufacturing high quality flexible rope mesh,providing different wire rope diameter,mesh width process,the nets shapes can be finished at square panel,rhombus panel,triangular panel. customized nets height and length.supplied more than 30 types border design plans to meet different installation required.
