Yuntong Stainless Steel Wire Rope Mesh / Metal Rope Mesh For Protect School Football
Yuntong Stainless Steel Wire Rope Mesh / Metal Rope Mesh For Protect School Football
Yuntong Stainless Steel Wire Rope Mesh / Metal Rope Mesh For Protect School Football
Yuntong Stainless Steel Wire Rope Mesh / Metal Rope Mesh For Protect School Football
Specifications
Brand Name :
Yuntong
Model Number :
YT-2050
Certification :
CE & SGS
Place of Origin :
Hebei,China
MOQ :
10 square meters
Price :
Negotiable
Payment Terms :
T/T, , Western Union, L/C
Supply Ability :
1000000 square meters per year
Delivery Time :
Within 2 weeks after detail confirms
Packaging Details :
Plastic foam and carton box for inner packing,Fumigated wooden cases for outer packing.
Material :
stainless steel 304,316,316L
Wire diameter :
3/64",1/16",5/64",3/32",1/8"
Mesh Aperture :
1"x1",2"x2",3"x3",4"x4",5"x5"
Cable Structure :
1*7,7*7,7*19,1*19
Usage :
bird netting,aviary mesh,zoo mesh
Feature :
High durability,temperature tolerance,smooth surface
Type :
Woven Type and Ferrule Type
Technique :
By hands
Description

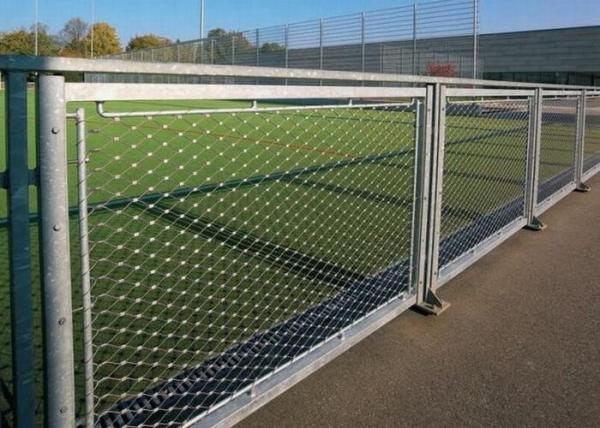

Metal Rope Mesh to Protect Football in School

We are happy to introduce you to an exciting product: Metal Rope Mesh to Protect Football in School, which is woven from high quality 304,316 and 316L stainless steel wire rope, and all the raw material for producing stainless steel wire cable mesh is imported from South Korea and Japan.Our Stainless Steel Wire Mesh & Wire Cloths with the high tech machines using high grade stainless steel wire. Our Stainless Steel Wire Rope Mesh for Skywalk in Zoo or Gardens are also not affected by acids and excessive heat. It has great advantage over ordinary wire cable mesh.

Brief Introduction of Metal Rope Mesh to Protect Football in School:

1. Material : Stainless steel 304,304L,316,306L etc.
2. Ferrules Material : Tinned-copper,Nickel-plated copper, Stainless steel etc.
3. Cable construction and Diameter : 7x7 (Dia.: 1.2 - 2.5mm), 7x19 (Dia.: 3.0 - 4.0mm)

Structure of Metal Rope Mesh to Protect Football in School:

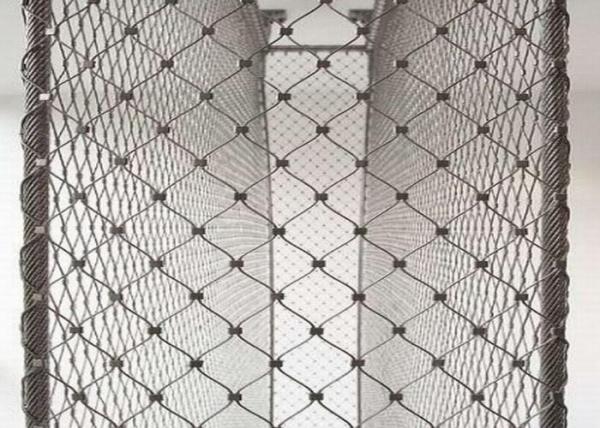

The stainless steel rope mesh is manufactured using a unique hand-woven interlocking technique from standard 7” x 7” and 7" x 19" ,stainless steel cable to create diamond openings from 1” through 4”.

Specification of Metal Rope Mesh to Protect Football in School:

Hole Size 1.2MM(3/64) 1.6MM(1/16) 2.0MM(5/64) 2.4MM(3/32) 3.2MM(1/8)
20 x 35mm YT-1235
25 x 42mm YT-1225 YT-1625
30 x 52mm YT-1230 YT-1630 YT-2030
35 x 60mm YT-1235 YT-1635 YT-2035
38 x 66mm YT-1238 YT-1638 YT-2038 YT-2438
40 x 69mm YT-1240 YT-1640 YT-2040 YT-2440 YT-3040
50 x 86mm YT-1250 YT-1650 YT-2050 YT-2450 YT-3050
60 x 104mm YT-1260 YT-1660 YT-2060 YT-2460 YT-3060
70 x 120mm YT-1270 YT-1670 YT-2070 YT-2470 YT-3070
76 x 131mm YT-1276 YT-1676 YT-2076 YT-2476 YT-3076
80 x 138mm YT-1280 YT-1680 YT-2080 YT-2480 YT-3080
90 x 154mm YT-1290 YT-1690 YT-2090 YT-2490 YT-3090
100 x 173mm YT-12100 YT-16100 YT-20100 YT-24100 YT-30100
120 x 206mm YT-12120 YT-16120 YT-20120 YT-24120 YT-30120

Yuntong is experienced in manufacturing high quality flexible rope mesh,providing different wire rope diameter,mesh width process,the nets shapes can be finished at square panel,rhombus panel,triangular panel. customized nets height and length.supplied more than 30 types border design plans to meet different installation required.Service of Yuntong
