SUS 316 7x7 7x19 Knotted Wire Mesh , Hand Woven Flexible Wire Mesh Netting
SUS 316 7x7 7x19 Knotted Wire Mesh , Hand Woven Flexible Wire Mesh Netting
SUS 316 7x7 7x19 Knotted Wire Mesh , Hand Woven Flexible Wire Mesh Netting
SUS 316 7x7 7x19 Knotted Wire Mesh , Hand Woven Flexible Wire Mesh Netting
Specifications
Brand Name :
Yuntong
Model Number :
YT-2050
Certification :
CE & SGS
Place of Origin :
Hebei,China
MOQ :
10 square meters
Price :
Negotiable
Payment Terms :
T/T, , Western Union, L/C
Supply Ability :
1000000 square meters per year
Delivery Time :
Within 2 weeks after detail confirms
Packaging Details :
Plastic foam and carton box for inner packing,Fumigated wooden cases for outer packing.
name :
stainless steel wire netting
Wire diameter :
1.2mm-3.2mm
Mesh Aperture :
25x25-200x200mm
Cable Structure :
1*7,7*7,7*19,1*19
Usage :
aviary netting,animal enclosure
Feature :
High durability,temperature tolerance,smooth surface
Description

SUS 316 7x7 7x19 Knotted Cable Net Hand-woven Mesh

We are happy to introduce you to an exciting product: SUS 316 7x7 7x19 Knotted Cable Net Hand-woven Mesh. which is woven from high quality 304,316 and 316L stainless steel wire rope, and all the raw material for producing stainless steel wire cable mesh is imported from South Korea and Japan.Our Stainless Steel Wire Mesh & Wire Cloths with the high tech machines using high grade stainless steel wire. Our Stainless Steel Wire Rope Mesh for Skywalk in Zoo or Gardens are also not affected by acids and excessive heat. It has great advantage over ordinary wire cable mesh.

Brief Introduction of SUS 316 7x7 7x19 Knotted Cable Net Hand-woven Mesh:

1. Material : Stainless steel 304,304L,316,306L etc.
2. Ferrules Material : Tinned-copper,Nickel-plated copper, Stainless steel etc.
3. Cable construction and Diameter : 7x7 (Dia.: 1.2 - 2.5mm), 7x19 (Dia.: 3.0 - 4.0mm)

Structure of SUS 316 7x7 7x19 Knotted Cable Net Hand-woven Mesh:

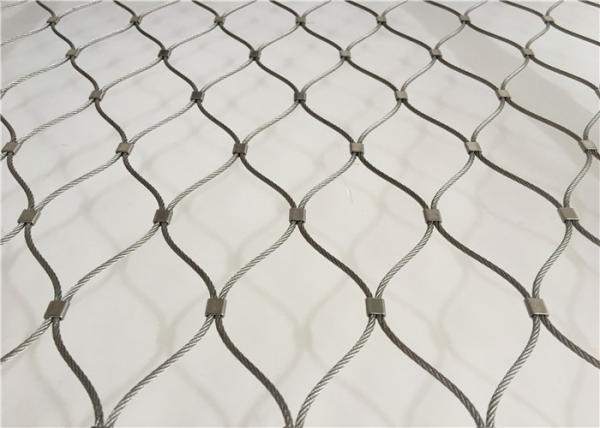

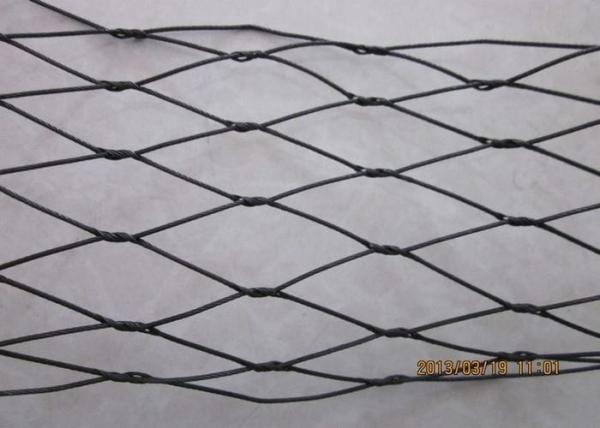

The stainless steel rope mesh is manufactured using a unique hand-woven interlocking technique from standard 7” x 7” and 7" x 19" ,stainless steel cable to create diamond openings from 1” through 4”.

Specification of SUS 316 7x7 7x19 Knotted Cable Net Hand-woven Mesh:

Structure 1.0 mm 1.5 mm 2.0 mm 3.0mm 4.0 mm
Structure 7 x 7 7 x 7 7 x 7 7 x 19 7 x 19
Single Wire TS (N/mm2) 1770 1770 1770 1570 1570
Opening Rope Diameter
OW X OH 1.0 mm 1.5 mm 2.0 mm 3.0 mm 4.0 mm
20 x 35 YT1020 　 　 　 　
25 x 43 YT1025 YT1525 　 　 　
35 x 61 YT1035 YT1535 　 　 　
40 x 69 YT1040 YT1540 YT2040 　 　
50 x 87 YT1050 YT1550 YT2050 YT3050 　
60 x 104 YT1060 YT1560 YT2060 YT3060 YT4060
70 x 121 YT1070 YT1570 YT2070 YT3070 YT4070
80 x 139 YT1080 YT1580 YT2080 YT3080 YT4080
100 x 173 YT10100 YT15100 YT20100 YT30100 YT40100
120 x 242 YT10120 YT15120 YT20120 YT30120 YT40120
160 x 277 YT10160 YT15160 YT20160 YT30160 YT40160
180 x 312 YT10180 YT15180 YT20180 YT30180 YT40180
200 x 346 YT10200 YT5200 YT20200 YT30200 YT40200

The application of stainless steel rope mesh

1. Green Facade - Cable System for Most Climbing Plants

2. Aviary Netting - Lightweight, Durable and Long Lasting

3. Cable Zoo Mesh - Solution to Enclosing Most Animals

4. Helipad Safety Net - Modular Heliport Webbing

5. Safety Net - Structural Measure to Prevent Suicide

6. Cable Mesh - Excellent Solution to Safety

7. Steel Mesh Balustrade - bridge, stair, balcony, path
