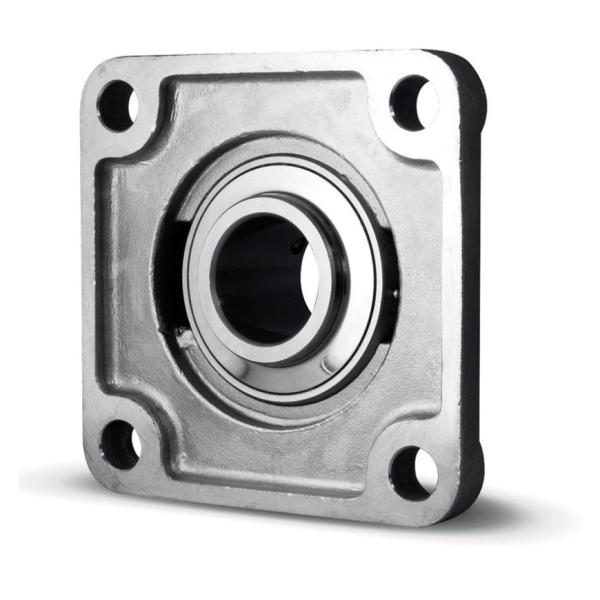

Flange Bearing / Flange Housing Unit SS UCF201 - Shaft 12 mm
Flange Bearing / Flange Housing Unit SS UCF201 - Shaft 12 mm
Specifications
Brand Name :
DEEG
Model Number :
UCF201
Certification :
ISO9001 , ISO14001
Place of Origin :
China
MOQ :
1PC
Price :
USD0.1~99/ Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000 Piece/Pieces per Month
Delivery Time :
5-10Days
Packaging Details :
Single Box(White Box/Color Box/Wooden Box),or per your requst.
Model :
UCF201
Structure :
Steel Pillow Block
Material :
GCR15
Rolling Element :
Roller
Precision Degree :
P6,P5,P4
75mm Pillow Block Bearing :
V1Z1 V2Z2
Description

Flange Bearing / Flange Housing Unit SS UCF201 - Shaft 12 mm

UCF201 Steel Pillow Block Bearing:

Model Number: UCF-201
Seal Type: Double Shielded, 2RS
Material: Chrome steel, Gcr15
Precision Rating: P0-P5
Brand: TOPE or other brands
Payment term: T/T,L/C,Western Union, PayPal
Delivery time: 1-5 days for small amout, 15-40 days for big amount


Flange Bearing / Flange Housing Unit SS UCF201 - Shaft 12 mm

Typ Shaft
-Ø
in mm		 Dimensions in mm Weight
(kg)
a e i g l S Z Bi n ds
UCF201 12 86 64 15 12 25,5 12 33,3 31 12,7 M10 0,63
UCF202 15 86 64 15 12 25,5 12 33,3 31 12,7 M10 0,63
UCF203 17 86 64 15 12 25,5 12 33,3 31 12,7 M10 0,63
UCF204 20 86 64 15 12 25,5 12 33,3 31 12,7 M10 0,63
UCF205 25 95 70 16 14 27 12 35,7 34 14,3 M10 0,82
UCF206 30 108 83 18 14 31 12 40,2 38,1 15,9 M10 1,1
UCF207 35 117 92 19 16 34 14 44,4 42,9 17,5 M12 1,5
UCF208 40 130 102 21 16 36 16 51,2 49,2 19 M14 1,9
UCF209 45 137 105 22 18 38 16 52,2 49,2 19 M14 2,3
UCF210 50 143 111 22 18 40 16 54,6 51,6 19 M14 2,5
UCF211 55 162 130 25 20 43 19 58,4 55,6 22,2 M16 3,4
UCF212 60 175 143 29 20 48 19 68,7 65,1 25,4 M16 4,4
UCF213 65 187 149 30 20 50 19 69,7 65,1 25,4 M16 5,3
UCF214 70 193 152 31,8 24,8 54,8 19 76,2 74,6 30,2 M16 6
UCF215 75 200 159 35 22 57 19 79,5 77,8 33,3 M16 6,6
UCF216 80 208 165 35 23 59 23 84,3 82,6 33,3 M20 7,5
UCF217 85 220 175 36 24 63 23 87,6 85,7 34,1 M20 9,1
UCF218 90 235 187 42 27 70 23 98,3 96 39,7 M20 11,3

Technical Data

Inside Diameter (mm): 12
a (mm): 86
e (mm): 64
i (mm): 15
Number of Mounting Holes: 4
Housing Type: Flange
Housing Material: Stainless Steel
Housing No.: SSF 204
Grub Screw: M6
Cage Material: Stainless Steel
Bearing No.: SSUC 201
Ring Material: Stainless Steel
Shaft Fastening: Grub Screws
Rolling Element Material: Stainless Steel
Max. Tightening Torques (Nm) For Bearing Insert: 5.5
Product weight: 0,630 Kg

FAQ:

Q1: Are you trading company or manufacturer ?


A: We are factory and professional manufactuer of bearings.


Q2: Can I get a sample to check out the quality ?


A: Sure, free samples are available for stock products if you can payfor the shipping cost.


Q3: Can you do OEM to print my logo/brand on the products ?


A: Yes, we can print your logo/brand on the products, you just need to send us your logo/brand files, we will show you how it looks like before shipping out.


Q4: How long is your delivery time ?


A: Generally we have regular stocks for standard bearings that can be shippedin 2 days after your payment. It will take 15-35 days for new production order, which depends on your order quantity.
