Specifications
Brand Name :
DEEG
Model Number :
2AC08-11/2D1
Certification :
ISO9001 , ISO14001
Place of Origin :
China
MOQ :
1PC
Price :
USDN1/ Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000 Piece/Pieces per Month
Delivery Time :
5-10Days
Packaging Details :
Single Box(White Box/Color Box/Wooden Box),or per your requst.
Model :
2AC08-11/2D1
Vibration Level :
V2,V3
Sealing/Shield :
Rubber Seals
Structure :
pillow block bearings
Precision Degree :
P6,P5,P4
The Number of Rows :
Single
Rolling Body :
Ball Bearings
Spherical :
Non-Aligning Bearings
Description

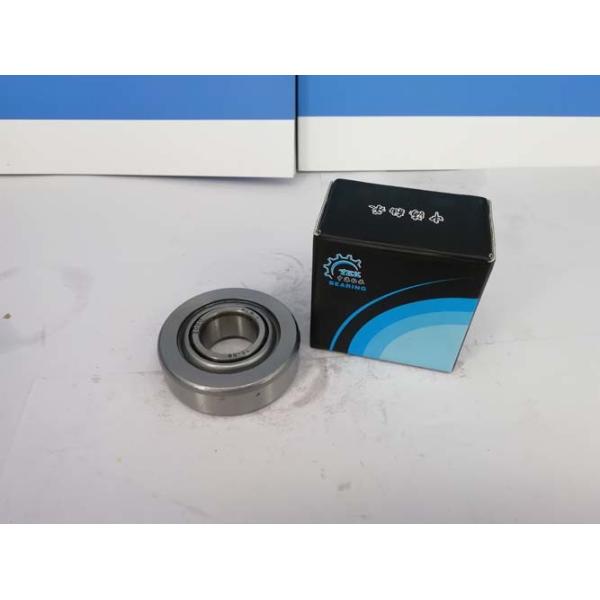

2AC08-11/2D1 disk harrow bearing With Square Hole Agricultural Machinery Bearing 38*80*80mm Agriculture Bearings

2AC08-11/2D1 Agricultural Machinery Bearing Description:

Model Number 2AC08-11/2D1
Inside Diameter: 2 11/64
Outside Diameter: 3 15/16
Thickness: 2 13/64
Seal Type: Double Shielded, 2RS
Material: Chrome steel, Gcr15
Precision Rating: P0-P5
BCA/FEDERAL MOGUL DC214TTR2
FAFNIR/TORRINGTON GW214PP2

2AC08-11/2D1 Agricultural Machinery Bearing

2AC08-11/2D1 Disk Harrow Custom Ball Bearings 38*80*80mm CE Certificate

more models:

Bearing type Style d D Be Bi Dynamic load The static load

Weight

Lbs.

GW209PPB2 3 1.7717 3.3465 1.1880 1.1880 7350 4150 1.44
45.000 85.000 30.175 30.175
GW209PPB4 3 1.5350 3.3465 1.1880 1.1880 7350 4150 1.65
39.000 85.000 30.175 30.175
GW209PPB11 1 1.7810 3.3465 0.8660 1.4380 7350 4150 1.37
45.237 85.000 22.000 36.525
GW210PPB2 3 1.9380 3.5433 1.1880 1.1880 7880 4650 1.50
49.225 90.000 30.175 30.175
GW210PPB5 3 1.7850 3.5433 1.1880 1.1880 7880 4650 1.8
45.339 90.000 30.175 30.175
GW210PP9 5 1.9450 3.5433 0.9060 1.4380 7880 4650 1.75
49.403 90.000 23.000 36.525
GW211PP2 4 2.1880 3.9370 1.3120 1.3120 9740 5850 3.00
55.575 100.000 33.325 33.325
GW211PPB2 3 2.1880 3.9370 1.3120 1.3120 9740 5850 2.62
55.575 100.000 33.325 33.325
GW211PPB8 1 2.1880 3.9370 0.9840 1.3120 9740 5850 1.85
55.575 100.000 25.000 33.325
GW211PPB9 1 2.1950 3.9370 0.9840 1.5620 9740 5850 2.02
55.753 100.000 25.000 39.675
GW211PPB10 3 1.9380 3.9370 1.3120 1.3120 9740 5850 2.26
49.225 100.000 33.325 33.325
GW211PPB13 1 1.7850 3.9370 0.9840 1.3120 9740 5850 2.02
45.339 100.000 25.000 33.325
GW211PPB14 1 2.0150 3.9370 0.9840 1.3120 9740 5850 2.00
51.181 100.000 25.000 33.325
GW211PP25 5 1.7800 3.9370 1.3120 1.7500 9740 5850 2.44
45.212 100.000 33.325 44.450
GW214PP2 4 2.7559 4.9213 1.5620 1.5620 14000 8800 4.19
70.000 125.000 39.675 39.675
GW214PPB2 3 2.7559 4.9213 1.5620 1.5620 14000 8800 3.96
70.000 125.000 39.675 39.675
GW214PPB3 3 1.9380 4.9213 1.5620 1.5620 14000 8800 4.24
49.225 125.000 39.675 39.675
GW214PPB5 2 2.7559 4.9213 1.5620 2.4380 14000 8800 4.75
70.000 125.000 39.675 61.925
GW214PPB6 1 2.6881 4.9213 1.1024 2.6875 14000 8800 5.14
68.278 125.000 28.000 68.263

W208PPB10 Agricultural Machinery Bearing Advantages:

1. High operation precision;

2. Most rolling bearings can also be subjected to radial and axial loads, so the combined structure of bearings is simple;

3. For axle diameters of the same size, the width of rolling bearing is smaller than that of sliding bearing, which can make the axial structure of machinery compact;

4. Under ordinary conditions, the efficiency of rolling bearing is equal to that of hydrodynamic smooth bearing, but higher than that of inclusion smooth bearing.

Shipping Methods:


1. For small amount (GW<100KGS), we can send you by express, such as DHL, Fedex, TNT etc
2. For GW between 100KGS to 500KGS, we can send you by sea shipping or air shipping
3. For large amount (GW > 500KGS), we can send you by sea

Packing Method:


We have multiple packages for shielded radial ball bearing GW208PP6
1. Industrial package: plastic tube + paper carton + wooden pallet
craft paper + paper carton + wooden pallet
2. Individual package: individual paper box + paper carton + wooden pallet
3. As customer's demand

Factory picture

2AC08-11/2D1 Disk Harrow Custom Ball Bearings 38*80*80mm CE Certificate2AC08-11/2D1 Disk Harrow Custom Ball Bearings 38*80*80mm CE Certificate

FAQ:

Q: Are you a trading company or a factory?

A: We have both. We are trading company and we have own factory.

Q: What is the delivery time if we place an order?

A: For small orders, our delivery time is 3 days. If the amount is large, usually our delivery time is 7-20 days.

Q: What is your payment term?

A: We accept T/T, W/U, PayPal and L/C.

Q: Do you have a warranty on bearings?

Answer: In normal use, our bearing guarantee period is 1 year.
