205PP7 Agricultural Machinery Bearing Ball Bearings 04-051-001
205PP7 Agricultural Machinery Bearing Ball Bearings 04-051-001
205PP7 Agricultural Machinery Bearing Ball Bearings 04-051-001
205PP7 Agricultural Machinery Bearing Ball Bearings 04-051-001
Specifications
Brand Name :
DEEG
Model Number :
205PP7
Certification :
ISO9001 , ISO14001
Place of Origin :
China
MOQ :
1PC
Price :
USDN1/ Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000 Piece/Pieces per Month
Delivery Time :
5-10Days
Packaging Details :
Single Box(White Box/Color Box/Wooden Box),or per your requst.
Model :
205PP7
Material :
GCR15
Rolling Element :
Balls
Vibration Level :
V2,V3
Number Of Row :
Single Row
Precision Rating :
P0,P6,P5,P4,P2
Weight :
0.2 KG
Seals Type :
ZZ,2RS,Open
Description

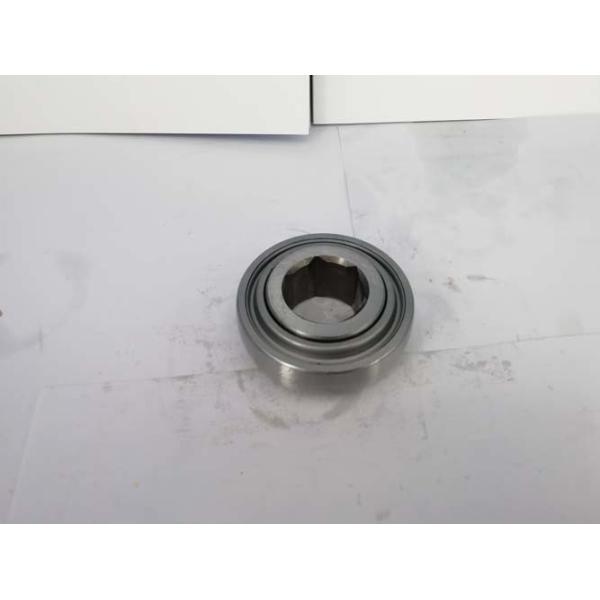

205PP7 Agricultural Machinery Bearing 23.8x52x52mm Application Bearings 04-051-001​

205PP7 Agricultural Machinery Bearing

23.8x52x52mm Bearing Features:

Inner Ring Diameter (bore):23.8

Outer Ring Diameter: 52

Width:52

Weight:0.2KG

205PP7 Agricultural Machinery Bearing Description:

Model Number 205PP7
Seal Type: Double Shielded, 2RS
Material: Chrome steel, Gcr15
Precision Rating: P0-P5
Brand: TOPE or other brands
Payment term: T/T,L/C,Western Union, PayPal
Delivery time: 1-5 days for small amout, 15-40 days for big amount

205PP7 Agricultural Machinery Bearing

205PP7 Agricultural Machinery Bearing Ball Bearings 04-051-001

more models:

Bearing type Style Trunnion A D Be Bi Dynamic load The static load

Weight

Lbs.
GW208PPB5 1 1 1/8 1.1800 3.1496 0.8270 1.4380 7340 3650 1.47
28.575 29.972 80.000 21.000 36.525
GW208PPB6 1 1 1.0300 3.1496 0.8270 1.4380 7430 3650 1.75
25.400 26.162 80.000 21.000 36.525
GW208PPB8 2 1 1/8 1.1800 3.1496 1.1880 1.4380 7430 3650 1.75
28.575 29.972 80.000 30.175 36.525
GW208PP17 4 1 1/8 1.1800 3.3755 1.1880 1.4380 7430 3650 2.04
28.575 29.972 85.738 30.175 36.525
GW208PPB17 2 1 1/8 1.1800 3.3755 1.1880 1.4380 7430 3650 2.04
28.575 29.972 85.738 30.175 36.525
GW209PPB5 2 1 1/4 1.2900 3.3465 1.1880 1.4380 7350 4150 1.75
31.750 32.776 85.000 30.175 36.525
GW209PPB8 1 1 1/4 1.2900 3.3465 0.86650 1.4380 7350 4150 1.65
31.750 32.776 85.000 22.000 36.525
GW210PP4 5 1 1/8 1.1800 3.5433 1.1880 1.1880 7880 4650 2.31
28.575 29.972 90.000 30.175 30.175
GW210PPB4 3 1 1/8 1.1800 3.5433 1.1880 1.1880 7880 4650 1.75
28.575 29.972 90.000 30.175 30.175
GW211PP3 5 1 1/2 1.5311 3.9370 1.3120 1.3120 9740 5850 2.79
38.100 39.890 100.000 33.325 33.325
GW211PPB3 3 1 1/2 1.5311 3.9370 1.3120 1.3120 9740 5850 2.66
38.100 39.890 100.000 33.325 33.325
GW211PP5 4 1 1/2 1.5311 4.0000 1.4380 1.7500 9740 5850 2.69
38.100 39.890 101.600 36.525 44.450
GW211PP17 4 1 1/2 1.5311 3.9370 1.3120 1.7500 9740 5850 2.62
38.100 39.890 100.000 33.325 44.450
GW211PPB17 1 1.5311 3.9370 1.3120 1.7500 9740 5850 2.55
38.100 39.890 100.000 33.325 44.450
GW212PP50 4 1 3/4 1.7400 4.3307 1.5620 2.0000 11790 8110 4.35
44.450 45.466 110.000 38.252 50.800
GW214PPB4 3 2 2.0551 4.9213 1.5620 1.5620 14000 8800 4.75
50.800 52.200 125.000 39.675 39.675
GW216PP2 4 2 1/4 2.3150 5.5118 1.1810 2.5000 16280 10400 6.32
57.150 58.800 140.000 30.000 63.500


205PP7 Agricultural Machinery Bearing Applications:

1. Plough disc connection bearing


2. Tillers, tractors, lawn harvesters,


3. Balers and high-power harvesting machines


4. Such as green feed harvesters and combine harvesters

Competitive advantage:
1. Coaxiality of the sealing contact surface means that the sealing function and service life have been significantly improved

2. The outer cover extends toward the width of the sealing ring to ensure the protection of the sealing lip against mechanical damage.

3. Galvanized inner cover and outer cover

Factory Photos:

205PP7 Agricultural Machinery Bearing Ball Bearings 04-051-001

How to place an order:

1. Send us your bearing inquiry, including your bearing models, your quantity. If you have brand requirement, please tell us which brand do you need as well.


2. We will quote bearing price for you. Moreover, According to the quantity of goods, we will give you different options of transportation.


3. If you agree with our price, we will make proforma invoice for payment


4. After payment is done, we will start to prepare bearings and arrange shipment

FAQ:

Q1: Are you trading company or manufacturer ?


A: We are factory and professional manufactuer of bearings.

Q2: Can I get a sample to check out the quality ?


A: Sure, free samples are available for stock products if you can payfor the shipping cost.

Q3: Can you do OEM to print my logo/brand on the products ?


A: Yes, we can print your logo/brand on the products, you just need to send us your logo/brand files, we will show you how it looks like before shipping out.

Q4: How long is your delivery time ?

A: Generally we have regular stocks for standard bearings that can be shippedin 2 days after your payment. It will take 15-35 days for new production order, which depends on your order quantity.
