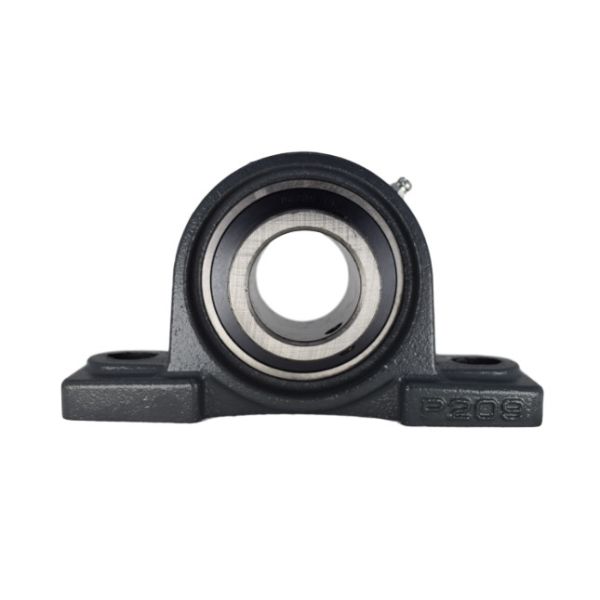

2-7/16" Pillow Block Bearing UCP212-39 General Industrial Equipment

UCP212-39 Steel Pillow Block Bearing:

61.9*69.9*238mm Bearing Features:

Inner Ring Diameter (bore):61.9mm

Outer Ring Diameter:69.9mm

Width:238mm

Bearing Weight:4.6KG

UCP212-39 Steel Pillow Block Bearing Description:

UCP212-39 Steel Pillow Block Bearing:


INTERCHANGE
AMI: UCP 212-39
Browning: VPS-239
Dodge: P2B-SC-207
Fafnir: RASC-2 7/16
Fafnir: YAS-2 7/16
Link-Belt: P3-U239N
Link-Belt: P3-Y239N
NSK: USP212-39S
NTN: UCP212-207T
Peer: FHSP212-39G
RHP: NP-2 7/16
Sealmaster: NP-39
UCP212-39 Steel Pillow Block Bearing Features:

1.Outer spherical bearing with seat is a high precision component product which is composed of grease sealed deep groove ball bearing and bearing seat of various shapes.
2.Bearing components can be installed directly on the main body of the mechanical device through several bolts, which has the function of adjusting the center and can supplement the grease.
3.It is a very simple product for installation and use.
4.The sealing device with double structure can work in harsh environment. Bearing seat is usually cast.


UCP212-39 Steel Pillow Block Bearing Advantages:

1.Outer spherical bearing with seat is composed of outer spherical bearing and bearing seat. There is no need to design another bearing box in use. It is small in size and simple in structure. It can be installed directly on the design part of the main engine with bolts. It is convenient to use.

2.Simple and practical
Bearing seat is integral structure, bearing capacity is large, rigidity is good, bearing and bearing seat can be interchangeable, that is, the same bearing seat can be installed with different types of bearings; similarly, the same type of bearing can choose different types of bearing seat.

3.Auto-adjustable
The outer spherical bearing with seat can work under the condition of two bearing seats with different axes, and the maximum automatic adjustment angle can reach 2 degrees.

Shipping Method:
1. For small amount (GW<100KGS), we can send you by express, such as DHL, Fedex, TNT etc
2. For GW between 100KGS to 500KGS, we can send you by sea shipping or air shipping
3. For large amount (GW > 500KGS), we can send you by sea

Factory Photo:



How to Place an Order:
1. Send us your bearing inquiry, including your bearing models, your quantity. If you have brand requirement, please tell us which brand do you need as well.
2. We will quote bearing price for you. Moreover, According to the quantity of goods, we will give you different options of transportation.

3. If you agree with our price, we will make proforma invoice for payment
4. After payment is done, we will start to prepare bearings and arrange shipment


Working principle:
1.Outer spherical bearing can bear radial load, radial load and axial load.
2.When it only bears radial load, the contact Angle is zero. When the deep groove ball bearing has a large radial clearance.

3.It has the performance of angular contact bearing and can bear a large axial load.

FAQ:

Q1: Are you trading company or manufacturer ?
A: We are factory and professional manufactuer of bearings.

Q2: Can I get a sample to check out the quality ?
A: Sure, free samples are available for stock products if you can payfor the shipping cost.

Q3: Can you do OEM to print my logo/brand on the products ?
A: Yes, we can print your logo/brand on the products, you just need to send us your logo/brand files, we will show you how it looks like before shipping out.

Q4: How long is your delivery time ?
A: Generally we have regular stocks for standard bearings that can be shippedin 2 days after your payment. It will take 15-35 days for new production order, which depends on your order quantity.
