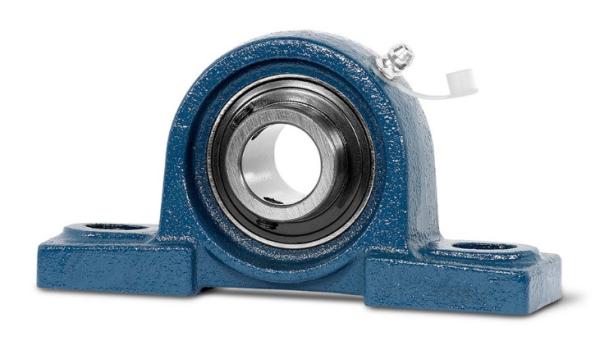

UCP215-215T 2-15/16" Pillow Block Bearing UCP215-47 Made In China In 2020

UCP215-47 Steel Pillow Block Bearing:

76.2*86.2*275mm Bearing Features:

Inner Ring Diameter (bore):76.2mm

Outer Ring Diameter:86.2mm

Width:275mm

Bearing Weight:7.3KG

UCP215-47 Steel Pillow Block Bearing Description:

UCP215-47 Steel Pillow Block Bearing:

INTERCHANGE
AMI: UCP 215-47
Browning: VPS-247
Dodge: P2B-SC-215
Fafnir: RASC-2 15/16
Fafnir: YAS-2 15/16
Link-Belt: P3-U247N
Link-Belt: P3-Y247N
NSK: USP215-47S
NTN: UCP215-215T
Peer: FHSP215-47G
RHP: NP-2 15/16
Sealmaster: NP-47

The UCP215-47 2-15/16" pillow block bearing unit is equipped with two specially designed setscrews positioned in the inner ring of the ball bearing to lock onto the shaft. The pillow block set screws are placed at a 90-degree angle to optimize balance between holding power and inner ring distortion. The UCP215-47 2-15/16" pillow block bearings are relubricatable and offer a full-width inner ring for added stability.

The UCP215-47 pillow block bearing also features a positive-contact, three-piece, fiber-imbedded R-seal to protect against harmfull contaminants and retain lubricant. The setscrew locking mechanism on the pillow block bearing is easy to install and well suited for reversing applications and normal loads.

Applications for the UCP215-47 2-15/16" pillow block bearing include: Construction, Conveyors, Food and Beverage, Packaging and General Industrial Equipment

Packing Method:

We have multiple packages for shielded radial ball bearing

1. Industrial package: plastic tube + paper carton + wooden pallet

craft paper + paper carton + wooden pallet

2. Individual package: individual paper box + paper carton + wooden pallet

3. As customer's demand

Factory Photo:

Working principle:

1.Outer spherical bearing can bear radial load, radial load and axial load.

2.When it only bears radial load, the contact Angle is zero. When the deep groove ball bearing has a large radial clearance.

3.It has the performance of angular contact bearing and can bear a large axial load.
