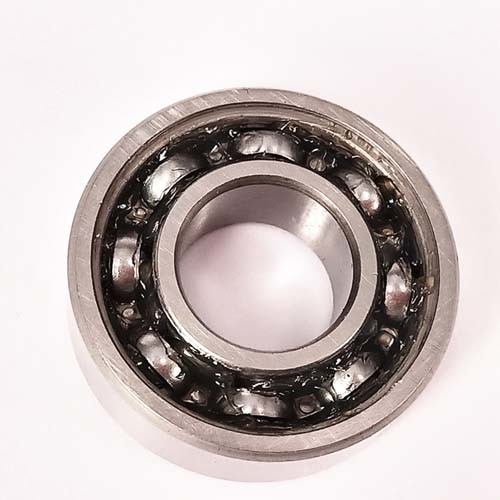

Commercial Inch Radial Ball Bearing 1614 ZZ 1614-2RS 3/8 Bore
Commercial Inch Radial Ball Bearing 1614 ZZ 1614-2RS 3/8 Bore
Commercial Inch Radial Ball Bearing 1614 ZZ 1614-2RS 3/8 Bore
Commercial Inch Radial Ball Bearing 1614 ZZ 1614-2RS 3/8 Bore
Specifications
Brand Name :
DEEG
Model Number :
1614 ZZ 2RS
Certification :
ISO9001 , ISO14001
Place of Origin :
China
MOQ :
1PC
Price :
USDN1/ Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000 Piece/Pieces per Month
Delivery Time :
5-10Days
Packaging Details :
Single Box(White Box/Color Box/Wooden Box),or per your requst.
Structure :
Deep Grove Ball Bearings
Material :
GCR15
Model :
1614
Precision Degree :
P6,P5,P4
Inner diameter :
9.525
Outer diameter :
28.575
Description

1600 SERIES Commercial Inch Ball Bearings 1614 ZZ 1614-2RS Radial Ball Bearing 3/8" Bore

1614 Deep Groove Ball Bearings

9.525*28.575*9.525mm Bearing Features:

Inner Ring Diameter (bore):0.375 Inch

Outer Ring Diameter:1.125 Inch

Width:0.375 Inch

1614 Ball Bearing Description:

Model Number 1614
Structure: Deep groove ball bearing
Inside Diameter:

3/8
Outside Diameter: 1 1/8
Thickness: 3/8
Seal Type: Double Shielded, 2RS
Material: Chrome steel, Gcr15
Precision Rating: P0-P5
Brand: TOPE or other brands
Payment term: T/T,L/C,Western Union, PayPal
Delivery time: 1-5 days for small amout, 15-40 days for big amount

1614 Ball Bearing

Commercial Inch Radial Ball Bearing 1614 ZZ 1614-2RS 3/8

more models:

Bearing
NO.		 Boundary dimensions(mm) Load Rating(kN)

Weight

(kg)
d D B Cr Cor
1614 9.525 28.575 9.525 5.11 2.39 0.0286
1615 11.112 28.575 9.525 5.11 2.39 0.0267
1616 12.700 28.575 9.525 5.11 2.39 0.0247
1620 11.113 34.925 11.112 7.64 3.72 0.0520
1621 12.700 34.925 11.112 7.64 3.72 0.0490
1622 14.288 34.925 11.112 7.64 3.72 0.0464
1623 15.875 34.925 11.112 7.64 3.72 0.0432
1628 15.875 41.275 12.700 9.57 4.79 0.0788
1630 19.050 41.275 12.700 9.38 5.03 0.0779
1633 15.875 44.450 12.700 9.38 5.03 0.100
1635 19.050 44.450 12.700 9.38 5.03 0.0914
1638 19.050 50.800 14.288 12.84 6.65 0.1421
1639 20.638 50.800 14.288 12.84 6.65 0.1380
1640 22.225 50.800 14.288 12.84 6.65 0.1306
1641 25.400 50.800 14.288 14.02 7.88 0.1090
1652 28.575 63.500 15.375 16.21 10.42 0.2288
1654 31.750 63.500 15.875 16.21 10.42 0.2056
1657 31.750 65.088 17.462 16.21 10.42 0..2386
1658 33.388 65.088 17.642 16.21 10.42 0.2359

1614 Deep Groove Ball Bearings Working Principle:

1. Nonstandard deep groove ball bearing can bear radial load, radial load and axial load.

2. When it only bears radial load, the contact Angle is zero. When the deep groove ball bearing has a large radial clearance.

3. It has the performance of angular contact bearing and can bear a large axial load.

1614 Deep Groove Ball Bearings Applications:

1. Gearboxes,Instruments,Motors

2. Household Appliances,Internal Combustion Engines

3. Traffic Vehicles,Agricultural Machinery,construction machinery,oller skates

Packing Methods:

We have multiple packages for shielded radial ball bearing


1. Industrial package: plastic tube + paper carton + wooden pallet
craft paper + paper carton + wooden pallet


2. Individual package: individual paper box + paper carton + wooden pallet


3. As customer's demand

Factory Photos:

Commercial Inch Radial Ball Bearing 1614 ZZ 1614-2RS 3/8

How to place an order:

1. Send us your bearing inquiry, including your bearing models, your quantity. If you have brand requirement, please tell us which brand do you need as well.

2. We will quote bearing price for you. Moreover, According to the quantity of goods, we will give you different options of transportation.


3. If you agree with our price, we will make proforma invoice for payment.


4. After payment is done, we will start to prepare bearings and arrange shipment.

FAQ:

Q1: Are you trading company or manufacturer ?


A: We are factory and professional manufactuer of bearings.

Q2: Can I get a sample to check out the quality ?


A: Sure, free samples are available for stock products if you can payfor the shipping cost.

Q3: Can you do OEM to print my logo/brand on the products ?


A: Yes, we can print your logo/brand on the products, you just need to send us your logo/brand files, we will show you how it looks like before shipping out.

Q4: How long is your delivery time ?

A: Generally we have regular stocks for standard bearings that can be shippedin 2 days after your payment. It will take 15-35 days for new production order, which depends on your order quantity.
