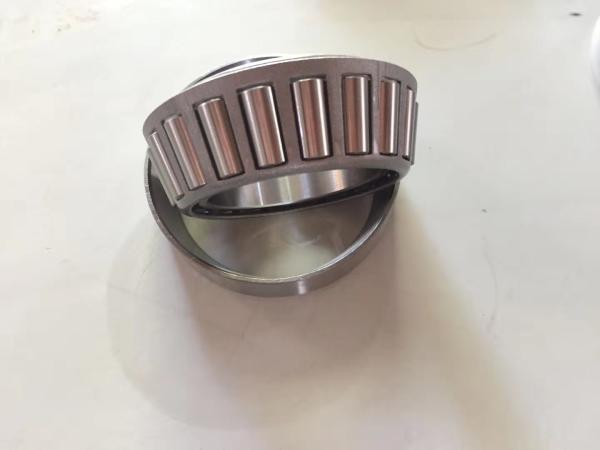

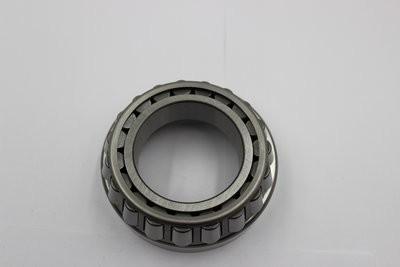

L44643/10 25.4*50.292*14.224mm Tapered Roller Bearing For Plastic Machinery

25.4*50.292*14.224mm Bearing Features:

Inner Ring Diameter (bore):1 Inch

Outer Ring Diameter:1.980

Width:0.7560 Inch

Bearing Weight:0.13KG

L44643/10 Tapered Roller Bearing Description:

L44643/10 Tapered Roller Bearing:

more models:

L44643/10 Tapered Roller Bearing Description:

1. Tapered roller bearings belong to separate type bearings. Both inner and outer rings of bearings have tapered raceways.

2. The bearing can be divided into single row, double row and four row tapered roller bearings according to the number of rollers installed. Single row tapered roller bearings can withstand radial load and unilateral axial load.

3. When bearings are subjected to radial loads, there will be an axial component, so another bearing that can withstand the reverse axial force is needed to balance it.

L44643/10 Tapered Roller Bearing Classification:

1. Single row tapered roller bearing

2. Double row tapered roller bearings

3. The four column tapered roller bearings

4. Multi-Sealed Double-row and Four-row Tapered Roller Bearings

L44643/10 Tapered Roller Bearing Applications:

1. Automobile, Rolling Mill, Mine, Metallurgical and Plastic Machinery

2. Tapered roller bearings are mainly subjected to combined radial and axial loads

Shipping Method:

1. For small amount (GW<100KGS), we can send you by express, such as DHL, Fedex, TNT etc

2. For GW between 100KGS to 500KGS, we can send you by sea shipping or air shipping

3. For large amount (GW > 500KGS), we can send you by sea

Factory Photo:

Quality In Everything We Do:

1.Suppliers quality: working only with the best

Our Supplier Quality and Development (SQD) division guarantees the flawless supply of highest quality raw materials and components.
Process quality: accurate, on-time production

All manufacturing facilities employ a Lean approach in manufacturing, involving every team member in a philosophy of continuous improvement. We have state-of-the-art production lines in all our plants. The integrated manufacturing process controls enable us to check 100% of the parts at every critical production step.

2.OEM-Quality Products

We deliver our products to leading global manufacturers of transmissions, axles, differentials, and fluid pumps amongst others; these customers use our products directly or integrate them into their Original Equipment.

Structural characteristics:

1.The type code of tapered roller bearings is 30000, and tapered roller bearings are separated bearings. Generally speaking, especially in GB/T307.1-94 "Tolerance of Rolling Bearing Centrifugal Bearing", the outer ring and inner assembly of tapered roller bearings are 100% interchangeable.

2.The angle of the outer ring and the diameter size of the outer raceway have been standardized. No changes are allowed during design and manufacture. So that the outer rings and inner components of tapered roller bearings can be interchanged all over the world.

3.Tapered roller bearings are mainly used to withstand combined radial and axial loads, which are mainly radial loads. Compared with angular contact ball bearings, the bearing capacity is larger and the limit speed is lower. Tapered roller bearings can withstand an axial load in one direction and limit the axial displacement in one direction of the shaft or housing.

FAQ

Q: Are you a trading company or a factory?

A: We have both. We are trading company and we have own factory.

Q: What is the delivery time if we place an order?

A: For small orders, our delivery time is 3 days. If the amount is large, usually our delivery time is 7-20 days.

Q: What is your payment term?

A: We accept T/T, W/U, PayPal and L/C.

Q: Do you have a warranty on bearings?

Answer: In normal use, our bearing guarantee period is 1 year.
