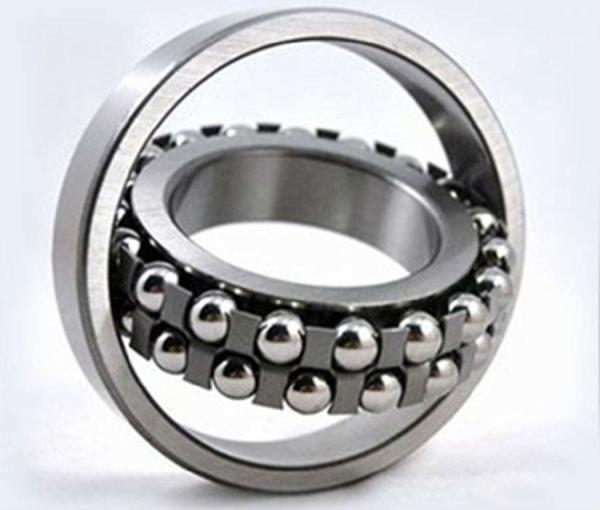

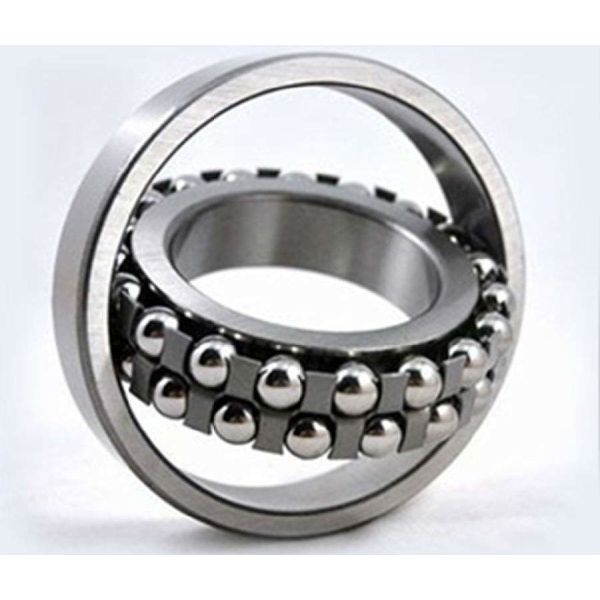

Used In Drive Shaft Or Conveyor Belt 135 5*19*6mm Self Aligning Ball Bearing Precision

5*19*6mm Bearing Features:

Inner Ring Diameter (bore):5mm

Outer Ring Diameter:19mm

Width:6mm

Basic Dynamic Load Rating Cr: 2.53KN

Basic Static Load Rating Cor:0.475KN

Bearing Width:0.009KG

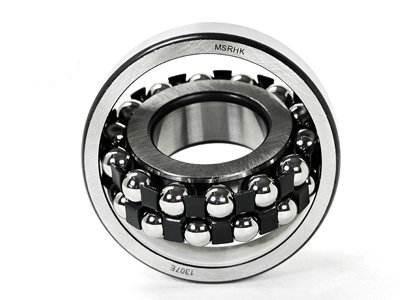

135 Self Aligning Ball Bearing Description:

135 Self Aligning Ball Bearing:

more models:

135 Self Aligning Ball Bearing Features:

1. The self-aligning ball bearing has two structures: cylindrical hole and tapered hole. The material of cage is steel plate, synthetic resin and so on

2. The outer raceway is spherical and has automatic alignment, which can compensate for the errors caused by different concentricity and axis deflection.

3. It can withstand large radial load and certain axial load at the same time.

4. In order to enhance the lubrication performance of bearings, annular grooves and three oil holes are machined on the outer ring of bearings.

135 Self Aligning Ball Bearing Advantages:

1. Since the outer raceway surface of the self-aligning ball bearing is spherical and has the self-aligning performance, it can automatically adjust the axis irregular tapered hole bearing caused by the deflection or concentricity of the shaft or shell.

2. By using fasteners, it can be conveniently installed in the axle steel plate stamping cage woodworking machinery, textile machinery transmission shaft, vertical belt seat self-aligning bearing.

3. Self-aligning ball bearings are mainly used to withstand radial load, but they can also withstand certain axial load while withstanding radial load, but can not withstand pure axial load.

Packing Method:

We have multiple packages for shielded radial ball bearing 135 Self Aligning Ball Bearing

1. Industrial package: plastic tube + paper carton + wooden pallet

craft paper + paper carton + wooden pallet

2. Individual package: individual paper box + paper carton + wooden pallet

3. As customer's demand

Factory Photo:

Structural Features:

1. The self-aligning ball bearing with dust-proof cover and sealing ring has been filled with proper lubricating grease during assembly.

2. It should not be heated or cleaned before installation, and no lubrication is needed during use. It is suitable for operating temperature ranging from - 30 C to + 120 C.

3. Self-aligning ball bearings are mainly used for precision instruments, low noise motors, automobiles, motorcycles and general machinery.

4. They are the most widely used type of bearings in machinery industry.
