40 Mm Id Ball Bearing Machinery Transmission Ball Bearing 1208
40 Mm Id Ball Bearing Machinery Transmission Ball Bearing 1208
40 Mm Id Ball Bearing Machinery Transmission Ball Bearing 1208
40 Mm Id Ball Bearing Machinery Transmission Ball Bearing 1208
Specifications
Brand Name :
DEEG
Model Number :
1208
Certification :
ISO9001 , ISO14001
Place of Origin :
China
MOQ :
1PC
Price :
USD0.1~99/ Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000 Piece/Pieces per Month
Delivery Time :
5-10Days
Packaging Details :
Single Box(White Box/Color Box/Wooden Box),or per your requst.
Model :
1208
Material :
GCR15
Rolling Element :
Balls
Vibration Level :
V2,V3
Number Of Row :
Double Row
Seals Type :
Shield
Description

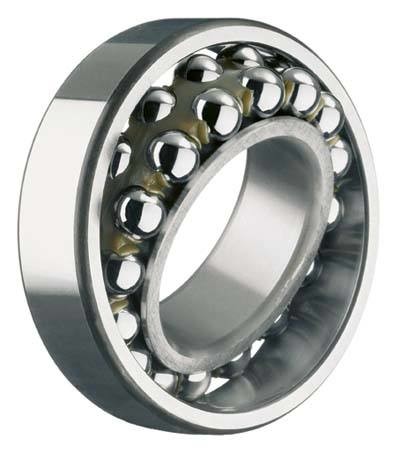

1208 40*80*18mm Self Aligning Ball Bearing GCR15 Steel Plate Retainer For Textile Machinery Transmission

40*80*18mm Bearing Features:

Inner Ring Diameter (bore):40mm

Outer Ring Diameter:80mm


Width:18mm

Basic Dynamic Load Rating Cr: 15KN

Basic Static Load Rating Cor:8.7KN

Bearing Width:0.411KG

1208 Self Aligning Ball Bearing Description:

Model Number: 1208
Inside Diameter: 40mm
Outside Diameter: 80mm
Width: 18mm
Seal Type: Double Shielded, 2RS
Material: Chrome steel, Gcr15
Precision Rating: P0-P5
Brand: TOPE or other brands
Payment term: T/T,L/C,Western Union, PayPal
Delivery time: 1-5 days for small amout, 15-40 days for big amount

1208 Self Aligning Ball Bearing:

40 Mm Id Ball Bearing Machinery Transmission Ball Bearing 1208

more models:

Bearing No (mm) (KN) Weight(kg)
d D B Cr Cor
1(0)200
126 6 19 6 2.53 0.475 0.008
127 7 19 6 2.75 0.6 0
108 8 22 7 2.75 0.6 0.013
129 9 22 7 4.15 0.895 0.021
1200 10 26 8 5.55 1.19 0.033
1201 12 30 9 5.7 1.27 0.039
1202 15 35 11 5.85 2.05 0.051
1203 17 40 12 6.2 2.45 0.072
1204 20 47 14 7.8 3.25 0.1185
1205 25 52 15 9.5 4.1 0.144
1206 30 62 16 12.3 5.9 0.226
1207 35 72 17 12.4 6.75 0.318
1208 40 80 18 15 8.7 0.411
1300
135 5 19 6 2.53 0.475 0.009
1300 10 35 11 7.35 1.62 0.057
1301 12 37 12 9.65 2.16 0.066
1302 15 42 13 7.6 2.29 0.093
1303 17 47 14 12.7 3.2 0.13
1304 20 52 15 12.6 4.1 0.174
1305 25 62 17 14.1 6.1 0.258
1306 30 72 19 16.7 7.9 0.389
1307 35 80 21 19.7 10 0.537
1308 40 90 23 23.2 12.4 0.712
2200
2200 10 30 14 7.45 1.59 0.042
2201 12 32 14 7.75 0.73 0.048
2202 15 35 14 7.8 1.85 0.055
2203 17 40 16 9.95 2.42 0.085
2204 20 47 18 9.8 3.95 0.152
2205 25 52 18 9.8 4.35 0.187
2206 30 62 20 12 5.8 0.258
2207 35 72 23 17 8.4 0.441
2208 40 80 23 17.6 9.65 0.527

1208 Self Aligning Ball Bearing Job Requirements:

1. For heavy loads, poor working conditions or bearing configurations with special requirements for seals, the built-in contact type sealed self-aligning roller bearings can be used.


2. A proper amount of lithium-based rust-proof grease has been filled in the bearing, and the grease can also be added according to user's requirements.


3. This kind of bearing is especially suitable for working under heavy load or vibration load.

4. A bearing with a drum-shaped roller is assembled between the inner ring of two raceways and the outer ring of a spherical raceway.

1208 Self Aligning Ball Bearing Applications:

1. Drive shaft,conveyor belt, roller, etc.


2. Used in electrical machinery, tractors, automobiles, industrial and agricultural machinery, metallurgical mining machinery, mechanical and electrical equipment,plastic machinery


3. Office equipment,textile machinery transmission shaft medical equipment,fitness and sports equipment and other industries.

1208 Self Aligning Ball Bearing Product Characteristics:

1. It mainly bears radial load and can bear smaller axial load at the same time.

2. Axial displacement of axle (shell) is limited to the clearance limit. It has automatic alignment performance.

3. It can work normally under the condition that the relative inclination of inner and outer parts is not large.

4. It is suitable for parts whose bearing holes can not strictly guarantee coaxiality.

Factory Photo:

40 Mm Id Ball Bearing Machinery Transmission Ball Bearing 120840 Mm Id Ball Bearing Machinery Transmission Ball Bearing 1208

Structural Features:


1.The self-aligning ball bearing with dust-proof cover and sealing ring has been filled with proper lubricating grease during assembly.

2.It should not be heated or cleaned before installation, and no lubrication is needed during use. It is suitable for operating temperature ranging from - 30 C to + 120 C.


3.Self-aligning ball bearings are mainly used for precision instruments, low noise motors, automobiles, motorcycles and general machinery.

4. They are the most widely used type of bearings in machinery industry.

FAQ

Q: Are you a trading company or a factory?

A: We have both. We are trading company and we have own factory.

Q: What is the delivery time if we place an order?

A: For small orders, our delivery time is 3 days. If the amount is large, usually our delivery time is 7-20 days.

Q: What is your payment term?

A: We accept T/T, W/U, PayPal and L/C.

Q: Do you have a warranty on bearings?

Answer: In normal use, our bearing guarantee period is 1 year.
