Made In China GCR15 Knuckle Bearing GE120ES GE120ES-2RS For Engineering Hydraulic Certified ISO9001

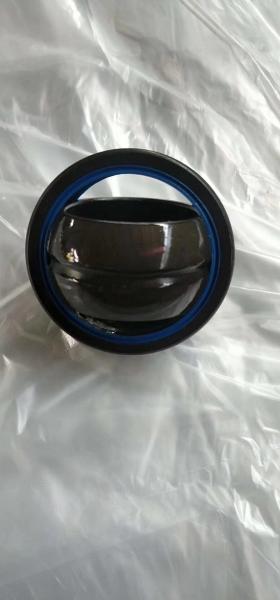

GE120ES-2RS Knuckle Bearing:

120*180*85mm Bearing Features:

Inner Ring Diameter (bore):120mm

Outer Ring Diameter:180mm

Width:85mm

Basic Dynamic Load Rating Cr:950kN

Basic Static Load Rating Cor:4750kN

Bearings Weight:8.05KG

GE120ES-2RS Knuckle Bearing Description:

GE120ES-2RS Knuckle Bearing:

more models:

GE120ES-2RS Knuckle Bearing Features:

1.Knuckle bearings can withstand large loads. According to its different types and structures, it can withstand radial load, axial load or combined load with both radial and axial loads.

2.Since the composite material is embedded on the outer spherical surface of the inner ring, the bearing can produce self-lubrication in operation.

3.Generally used for low-speed swing motion, low-speed rotation, can also be tilted within a certain angle range, when the support shaft and the shaft shell hole are not concentric enough, it can still work normally.

4.Self-lubricating joint bearings are used in water conservancy, professional machinery and other industries.

GE120ES-2RS Knuckle Bearing Applications:

1.Knuckle bearing is widely used in engineering hydraulic cylinder, forging machine tool, engineering machinery, automation equipment, automobile shock absorber, hydraulic machinery and other industries.

2.Knuckle bearing is spherical sliding bearing. The basic type is composed of inner and outer rings with spherical sliding spherical contact surface.

3.Knuckle bearing is widely used in swing motion, tilt motion and rotation motion with low speed.

Packing Method:

We have multiple packages for shielded radial ball bearing GE120ES-2RS

1. Industrial package: plastic tube + paper carton + wooden pallet

craft paper + paper carton + wooden pallet

2. Individual package: individual paper box + paper carton + wooden pallet

3. As customer's demand

Factory Photo:

Computational method:

1.The calculation of the coordinated surface contact pressure is a very complex problem. The existing Hertz model is limited to the elastic half-space body and can not be used to calculate the coordinated contact pressure distribution on the sphere.

2.At present, there is a unified model of spherical contact, namely Fang model, which can solve the problem of contact pressure distribution of small deformation spherical surface.

3.This model is applicable to both uncoordinated contact and coordinated contact. However, the contact area of the joint bearing is not a complete spherical surface, and the calculation of the contact pressure distribution needs to be further calculated on the basis of the complete spherical coordinated contact model.

How to Place an Order:

1. Send us your bearing inquiry, including your bearing models, your quantity. If you have brand requirement, please tell us which brand do you need as well.

2. We will quote bearing price for you. Moreover, According to the quantity of goods, we will give you different options of transportation.

3. If you agree with our price, we will make proforma invoice for payment

4. After payment is done, we will start to prepare bearings and arrange shipment

Working temperature:

1.The allowable working temperature of the joint bearing is mainly determined by the matching materials between the sliding surfaces of the bearing, especially the plastic sliding surface of the self-lubricating joint bearing.

2.At high temperature, the bearing capacity of the joint bearing will decrease. If the sliding surface material of lubricated joint bearing is steel/steel, its allowable working temperature depends on the allowable working temperature of lubricant.

3.But for all lubricated and self-lubricated joint bearings, they can be used in the temperature range of - 30 ~80 ~C, and maintain the correct bearing capacity.

FAQ

Q1: Are you trading company or manufacturer ?

A: We are factory and professional manufactuer of bearings.

Q2: Can I get a sample to check out the quality ?

A: Sure, free samples are available for stock products if you can payfor the shipping cost.

Q3: Can you do OEM to print my logo/brand on the products ?

A: Yes, we can print your logo/brand on the products, you just need to send us your logo/brand files, we will show you how it looks like before shipping out.

Q4: How long is your delivery time ?

A: Generally we have regular stocks for standard bearings that can be shippedin 2 days after your payment. It will take 15-35 days for new production order, which depends on your order quantity.
