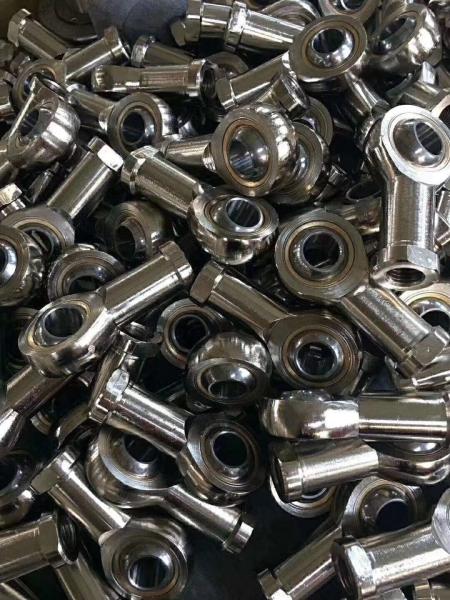

Single Carton Pack universal joint bearing Single Row 140mm ID GE140ES
Single Carton Pack universal joint bearing Single Row 140mm ID GE140ES
Single Carton Pack universal joint bearing Single Row 140mm ID GE140ES
Single Carton Pack universal joint bearing Single Row 140mm ID GE140ES
Specifications
Brand Name :
DEEG
Model Number :
GE140ES
Certification :
ISO9001 , ISO14001
Place of Origin :
China
MOQ :
1PC
Price :
USD0.1~99/ Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000 Piece/Pieces per Month
Delivery Time :
5-10Days
Packaging Details :
Single Box(White Box/Color Box/Wooden Box),or per your requst.
Structure :
Knuckle Bearing
Model :
GE140ES
Number Of Row :
Single Row
Vibration Level :
V2,V3
Material :
GCR15
Description

Single Carton Pack GCR15 Knuckle Bearing Double Seal GE140ES For Forging Machine

GE140ES Knuckle Bearing:

140*210*90mm Bearing Features:

Inner Ring Diameter (bore): 140mm

Outer Ring Diameter:210mm

Width:90mm

GE140ES Knuckle Bearing Description:

Model Number: GE140ES
Inner diameter: 140mm
Outer diameter: 210mm
Width: 90m
Seal Type: Double Shielded, 2RS
Material: Chrome steel, Gcr15
Precision Rating: P0-P5
Brand: TOPE or other brands
Payment term: T/T,L/C,Western Union, PayPal
Delivery time: 1-5 days for small amout, 15-40 days for big amount

GE140ES Knuckle Bearing:

Single Carton Pack universal joint bearing Single Row 140mm ID GE140ES

more models:

Bearing NO. Size Load Weight- ]' i1 U6 / Q7 t/ A" G+ i+ C ≈Kg
ES 2RS d D B C dk r1 min r2 min α Cr Cor
GE15ES GE15ES-2RS 15 26 12 9 22 0.3 0.3 8 16 84 0.027
GE17ES GE17ES-2RS 17 30 14 10 25 0.3 0.3 10 21 106 0.041
GE20ES GE20ES-2RS 20 35 16 12 29 0.3 0.3 9 30 146 0.066
GE25ES GE25ES-2RS 25 42 20 16 35.5 0.6 0.6 7 48 240 0.119
GE30ES GE30ES-2RS 30 47 22 18 40.7 0.6 0.6 6 62 310 0.153
GE35ES GE35ES-2RS 35 55 25 20 47 0.6 1 6 79 399 0.233
GE40ES GE40ES-2RS 40 62 28 22 53 0.6 1 7 99 495 0.306
GE45ES GE45ES-2RS 45 68 32 25 60 0.6 1 7 127 637 0.427
GE50ES GE50ES-2RS 50 75 35 28 66 0.6 1 6 156 780 0.546
GE55ES GE55ES-2RS 55 85 40 32 74 0.6 1 7 200 1000 0.939
GE60ES GE60ES-2RS 60 90 44 36 80 1 1 6 245 1220 1.04
GE70ES GE70ES-2RS 70 105 49 40 92 1 1 6 313 1560 1.55
GE80ES GE80ES-2RS 80 120 55 45 105 1 1 6 400 2000 2.31
GE90ES GE90ES-2RS 90 130 60 50 115 1 1 5 488 2440 2.75
GE100ES GE100ES-2RS 100 150 70 55 130 1 1 7 607 3030 4.45
GE110ES GE110ES-2RS 110 160 70 55 140 1 1 6 654 3270 4.82
GE120ES GE120ES-2RS 120 180 85 70 160 1 1 6 950 4750 8.05
GE140ES GE140ES-2RS 140 210 90 70 189 1 1 7 1070 5350 11.02
GE160ES GE160ES-2RS 160 230 105 80 209 1 1 8 1360 6800 14.01
GE180ES GE180ES-2RS 180 260 105 80 236 1.1 1.1 6 1530 7650 18.65
GE200ES GE200ES-2RS 200 290 130 100 265 1.1 1.1 7 2120 10600 28.03
GE220ES GE220ES-2RS 220 320 135 100 290 1.1 1.1 8 2320 11600 35.51
GE240ES GE240ES-2RS 240 340 140 100 310 1.1 1.1 8 2550 12700 39.91
GE260ES GE260ES-2RS 260 370 150 110 340 1.1 1.1 7 3030 15190 51.54
GE280ES GE280ES-2RS 280 400 155 120 370 1.1 1.1 6 3570 17850 65.06
GE300ES GE300ES-2RS 300 430 165 120 390 1.1 1.1 7 3800 19100 78.07

GE140ES Knuckle Bearing Computational Method:

1.The calculation of the coordinated surface contact pressure is a very complex problem. The existing Hertz model is limited to the elastic half-space body and can not be used to calculate the coordinated contact pressure distribution on the sphere.

2.At present, there is a unified model of spherical contact, namely Fang model, which can solve the problem of contact pressure distribution of small deformation spherical surface.


3.This model is applicable to both uncoordinated contact and coordinated contact. However, the contact area of the joint bearing is not a complete spherical surface, and the calculation of the contact pressure distribution needs to be further calculated on the basis of the complete spherical coordinated contact model.

GE140ES Knuckle Bearing Advantages:

1.Joint bearing has two spherical contact surfaces, which are called coordinated contact.

The calculation method of mechanical characteristics of joint bearing plays an important role in structural design and wear analysis of joint bearing.


2.In addition, free boundary effect will also occur during the use of joint bearings, which will have a certain impact on the application of joint bearings.

Free boundary effect produces contact pressure concentration and large pressure gradient at the outer ring edge of joint bearing.

Shipping Method:

1. For small amount (GW<100KGS), we can send you by express, such as DHL, Fedex, TNT etc


2. For GW between 100KGS to 500KGS, we can send you by sea shipping or air shipping


3. For large amount (GW > 500KGS), we can send you by sea

Factory Photo:

Single Carton Pack universal joint bearing Single Row 140mm ID GE140ES

Single Carton Pack universal joint bearing Single Row 140mm ID GE140ES

Working principle:


1.Knuckle bearing can bear radial load, radial load and axial load.


2.When it only bears radial load, the contact Angle is zero.

When the deep groove ball bearing has a large radial clearance.


3.It has the performance of angular contact bearing and can bear a large axial load.

How to Place an Order:


1. Send us your bearing inquiry, including your bearing models, your quantity. If you have brand requirement, please tell us which brand do you need as well.


2. We will quote bearing price for you. Moreover, According to the quantity of goods, we will give you different options of transportation.

3. If you agree with our price, we will make proforma invoice for payment

4. After payment is done, we will start to prepare bearings and arrange shipment

FAQ

Q: Are you a trading company or a factory?

A: We have both. We are trading company and we have own factory.

Q: What is the delivery time if we place an order?

A: For small orders, our delivery time is 3 days. If the amount is large, usually our delivery time is 7-20 days.

Q: What is your payment term?

A: We accept T/T, W/U, PayPal and L/C.

Q: Do you have a warranty on bearings?

Answer: In normal use, our bearing guarantee period is 1 year.
