Strong Load And Bearing Capacity Knuckle Bearing GE80ES GE80ES-2RS For Engineering Hydraulic Cylinder

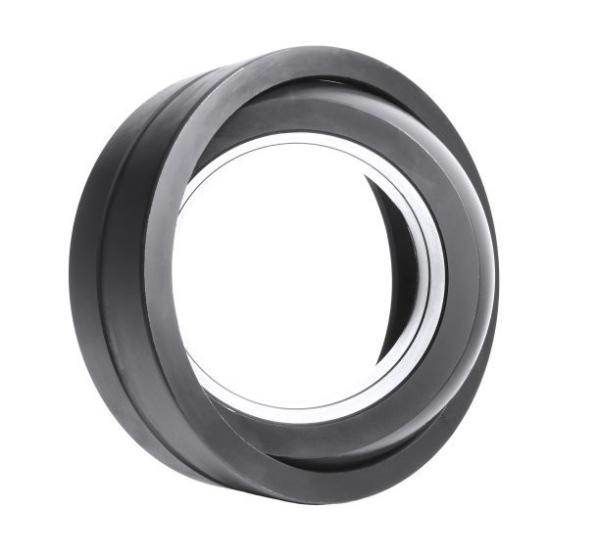

GE80ES-2RS Knuckle Bearing:

80*120*55mm Bearing Features:

Inner Ring Diameter (bore):80mm

Outer Ring Diameter:120mm

Width:55mm

Basic Dynamic Load Rating Cr:400kN

Basic Static Load Rating Cor:2000kN

Bearings Weight:2.31KG

GE80ES-2RS Knuckle Bearing Description:

GE80ES-2RS Knuckle Bearing:

more models:

GE80ES-2RS Knuckle Bearing Description:

1.The structure of the joint bearing is simpler than that of the rolling bearing.

2.It consists mainly of an inner ring with an outer sphere and an outer ring with an inner sphere. Joint bearings are generally used for low-speed swing motion (angular motion).

3.Since the sliding surface is spherical, it can also be inclined in a certain angle range (i.e. aligning motion), and it can still work normally when the support shaft and the shaft shell hole are not centralized.

GE80ES-2RS Knuckle Bearing Advantages:

1.Joint bearing has two spherical contact surfaces, which are called coordinated contact.

The calculation method of mechanical characteristics of joint bearing plays an important role in structural design and wear analysis of joint bearing.

2.In addition, free boundary effect will also occur during the use of joint bearings, which will have a certain impact on the application of joint bearings.

Free boundary effect produces contact pressure concentration and large pressure gradient at the outer ring edge of joint bearing.

Packing Method:

We have multiple packages for shielded radial ball bearing GE80ES-2RS

1. Industrial package: plastic tube + paper carton + wooden pallet

craft paper + paper carton + wooden pallet

2. Individual package: individual paper box + paper carton + wooden pallet

3. As customer's demand

Factory Photo:

How to Place an Order:

1. Send us your bearing inquiry, including your bearing models, your quantity. If you have brand requirement, please tell us which brand do you need as well.

2. We will quote bearing price for you. Moreover, According to the quantity of goods, we will give you different options of transportation.

3. If you agree with our price, we will make proforma invoice for payment

4. After payment is done, we will start to prepare bearings and arrange shipment

Working temperature:

1.The allowable working temperature of the joint bearing is mainly determined by the matching materials between the sliding surfaces of the bearing, especially the plastic sliding surface of the self-lubricating joint bearing.

2.At high temperature, the bearing capacity of the joint bearing will decrease. If the sliding surface material of lubricated joint bearing is steel/steel, its allowable working temperature depends on the allowable working temperature of lubricant.

3.But for all lubricated and self-lubricated joint bearings, they can be used in the temperature range of - 30 ~80 ~C, and maintain the correct bearing capacity.

FAQ

Q: Are you a trading company or a factory?

A: We have both. We are trading company and we have own factory.

Q: What is the delivery time if we place an order?

A: For small orders, our delivery time is 3 days. If the amount is large, usually our delivery time is 7-20 days.

Q: What is your payment term?

A: We accept T/T, W/U, PayPal and L/C.

Q: Do you have a warranty on bearings?

Answer: In normal use, our bearing guarantee period is 1 year.
