Made In China GCR15 Double Spherical Roller Bearing 22207C 53507H For Printing Machines

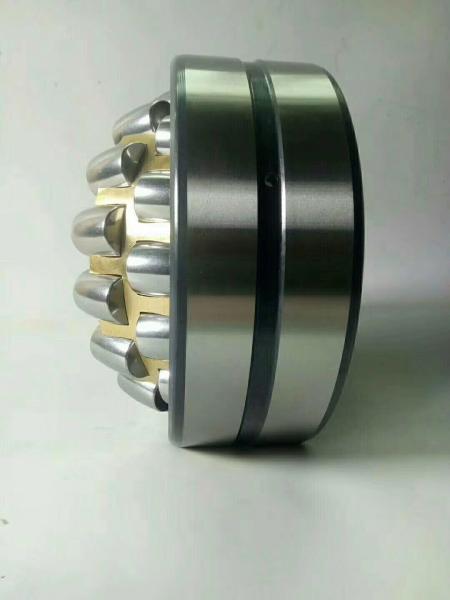

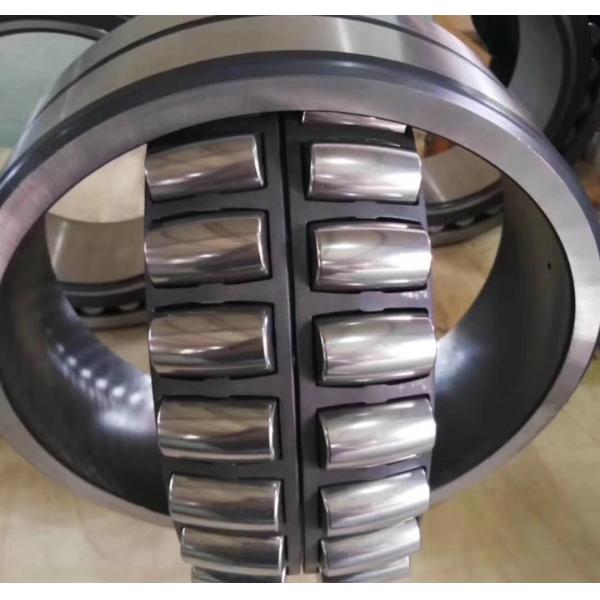

22207C Spherical Roller Bearing:

35*72*23mm Bearing Features:

Inner Ring Diameter (bore): 35mm

Outer Ring Diameter:72mm

Width:23mm

Basic Dynamic Load Rating Cr:67kN

Basic Static Load Rating Cor:73.9kN

Grease:5900

Oil:7800

Bearings Weight:0.447KG

22207C Spherical Roller Bearing Description:

22207C Spherical Roller Bearing:

more models:

22207C Spherical Roller Bearing Applications:

1. Paper making machinery, deceleration device, axle of railway vehicle,

2. Bearing seat of gear box of rolling mill, roll of rolling mill, crusher, vibrating screen, printing machinery,

3. Woodworking machinery, decelerator for various industries, vertical bearing with center adjustment seat

22207C Spherical Roller Bearing Description:

1. The self-aligning roller bearing is a bearing with drum roller assembled between the inner ring with two raceways and the outer ring with spherical raceway.

2. The curvature center of raceway surface of outer ring is the same as that of bearing, so it has the same aligning function as automatic aligning ball bearing.

22207C Spherical Roller Bearing Basic Species:

1. Cylindrical inner hole

The radial clearance of the bearing can be adjusted by moving the inner ring along the axis when the bearing is matched with the tapered shaft.

2. Tapered bore

The taper of tapered inner bore is 1:12 and 1:30 respectively. The rear codes are K-centered roller bearings (153000 or 113000) and K30-centered roller bearings.

Packing Method:

We have multiple packages for shielded radial ball bearing 22207C

1. Industrial package: plastic tube + paper carton + wooden pallet

craft paper + paper carton + wooden pallet

2. Individual package: individual paper box + paper carton + wooden pallet

3. As customer's demand

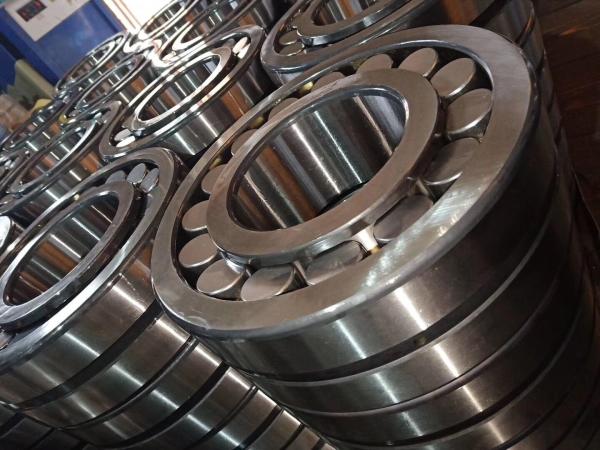

Factory Photo:

Specific classification and model comparison:

1. Self-aligning roller bearing (20000CC type)

2. Tapered Hole Self-aligning Roller Bearing (Model 20000 CCK)

3. Self-aligning roller bearing (20000CC/W33)

4. Tapered bore self-aligning roller bearing (20000 CCK/W33)

5. Hole-aligning roller bearings (20000 CCK+H0000) mounted on the fastening sleeve

6. Hole-aligning roller bearings mounted on the fastening sleeve (20000 CCK/W33+H0000 type)

Quality In Everything We Do:

Suppliers quality: working only with the best

Our Supplier Quality and Development (SQD) division guarantees the flawless supply of highest quality raw materials and components.
Process quality: accurate, on-time production

All manufacturing facilities employ a Lean approach in manufacturing, involving every team member in a philosophy of continuous improvement. We have state-of-the-art production lines in all our plants. The integrated manufacturing process controls enable us to check 100% of the parts at every critical production step.

OEM-Quality Products

We deliver our products to leading global manufacturers of transmissions, axles, differentials, and fluid pumps amongst others; these customers use our products directly or integrate them into their Original Equipment.

FAQ

Q1: Are you trading company or manufacturer ?

A: We are factory and professional manufactuer of bearings.

Q2: Can I get a sample to check out the quality ?

A: Sure, free samples are available for stock products if you can payfor the shipping cost.

Q3: Can you do OEM to print my logo/brand on the products ?

A: Yes, we can print your logo/brand on the products, you just need to send us your logo/brand files, we will show you how it looks like before shipping out.

Q4: How long is your delivery time ?

A.Generally we have regular stocks for standard bearings that can be shippedin 2 days after your payment. It will take 15-35 days for new production order, which depends on your order quantity.

Contact us:
Email: yang@yekbearing.cn
Mobile/Whatsapp/skype: +8613589478060
