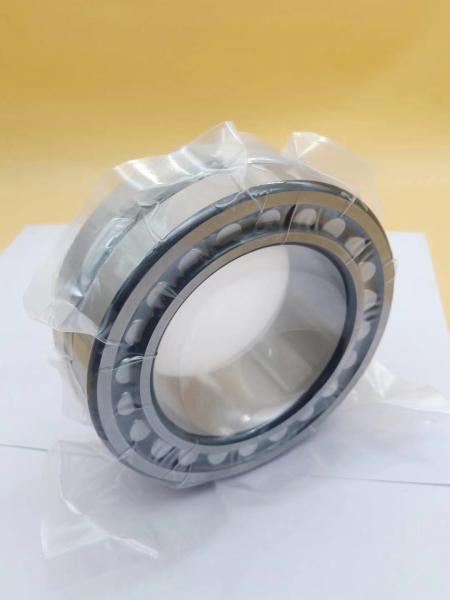

Abrasion Resistance Single Row Spherical Roller Bearing 22206C 30mm Inner Ring Diameter
Abrasion Resistance Single Row Spherical Roller Bearing 22206C 30mm Inner Ring Diameter
Abrasion Resistance Single Row Spherical Roller Bearing 22206C 30mm Inner Ring Diameter
Abrasion Resistance Single Row Spherical Roller Bearing 22206C 30mm Inner Ring Diameter
Specifications
Brand Name :
DEEG
Model Number :
22206C
Certification :
ISO9001 , ISO14001
Place of Origin :
China
MOQ :
1PC
Price :
USD0.1~99/ Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000 Piece/Pieces per Month
Delivery Time :
5-10Days
Packaging Details :
Single Box(White Box/Color Box/Wooden Box),or per your requst.
Model :
22206C
Seals Type :
Rubber Seals
Precision Degree :
P6,P5,P4
Number Of Row :
Single Row
Material :
GCR15
Weight :
0.294KG
Description

Spherical roller bearing 22206C 30*62*20mm High Mechanical Efficiency For Mining Machinery

22206C Spherical Roller Bearing:

30*62*20mm Bearing Features:

Inner Ring Diameter (bore): 30mm

Outer Ring Diameter:62mm

Width:20mm

Basic Dynamic Load Rating Cr:51.7kN

Basic Static Load Rating Cor:55kN

Grease:6800

Oil:9100

Bearings Weight:0.294KG

22206C Spherical Roller Bearing Description:

Model Number: 22206C
Inner diameter: 30mm
Outer diameter: 62mm
Width: 20m
Bearing Weight: 0.294KG
Seal Type: Double Shielded, 2RS
Material: Chrome steel, Gcr15
Precision Rating: P0-P5
Brand: TOPE or other brands
Payment term: T/T,L/C,Western Union, PayPal
Delivery time: 1-5 days for small amout, 15-40 days for big amount

22206C Spherical Roller Bearing:

Abrasion Resistance Single Row Spherical Roller Bearing 22206C 30mm Inner Ring Diameter

more models:

Bearing No. Rated Load Weight
(mm) (kN) (r/min) (kg)
New Old d D B Cr Cor Grease Oil wt
22205CA 53505H 25 52 18 42.1 43.5 8100 11000 0.186
22205CTN1 25 52 18 42.1 43.5 8100 11000 0.186
22205M 25 52 18 43 42.1 8100 11000 0.179
22206CA 53506H 30 62 20 51.7 55 6800 9100 0.294
22206C 53506 30 62 20 51.7 55 6800 9100 0.294
22206MB 30 62 20 51.7 55 6800 9100 0.294
22206M 30 62 20 55.2 56.8 6800 9100 0.286
22207CA 53507H 35 72 23 67 73.9 5900 7800 0.447
22207C 53507 35 72 23 67 73.9 5900 7800 0.447
22207MB 35 72 23 67 73.9 5900 7800 0.447
22207M 35 72 23 74.1 82.2 5900 7800 0.437
22208CA 53508H 40 80 23 76.9 85 5200 6900 0.536
22208C 53508 40 80 23 76.9 85 5200 6900 0.536
22208MB 40 80 23 76.9 85 5200 6900 0.536
22208M 40 80 23 85.4 93.4 5200 6900 0.525
22308CA 53608H 40 90 33 115 127 4000 5300 1.03
22308C 53608 40 90 33 115 127 4000 5300 1.03
22308MB 40 90 33 115 127 4000 5300 1.03
22308M 40 90 33 132 147 4000 5300 1.02
22209CA 53509H 45 85 23 80.5 91.9 4900 6500 0.597
22209C 53509 45 85 23 80.5 91.9 4900 6500 0.597
22209MB 45 85 23 80.5 91.9 4900 6500 0.597
22209M 45 85 23 89.6 101 4900 6500 0.585
22309CA 53609H 45 100 36 146 168 3600 4800 1.43
22309C 53609 45 100 36 146 168 3600 4800 1.43
22309MB 45 100 36 146 168 3600 4800 1.43
22309M 45 100 36 162 182 3600 4800 1.42
22210CA 53510H 50 90 23 83.1 97.8 4500 6000 0.641
22210C 53510 50 90 23 83.1 97.8 4500 6000 0.641
22210MB 50 90 23 83.1 97.8 4500 6000 0.641
22210M 50 90 23 96.5 112 4500 6000 0.629
22310CA 53610H 50 110 40 181 208 3200 4300 1.87
22310C 53610 50 110 40 181 208 3200 4300 1.87
22310MB 50 110 40 181 208 3200 4300 1.87
22310M 50 110 40 197 226 3200 4300 1.85
22211CA 53511H 55 100 25 102 119 4100 5400 0.849
22211C 53511 55 100 25 102 119 4100 5400 0.849

22206C Spherical Roller Bearing Description:

1. The self-aligning roller bearing is a bearing with drum roller assembled between the inner ring with two raceways and the outer ring with spherical raceway.


2. The curvature center of raceway surface of outer ring is the same as that of bearing, so it has the same aligning function as automatic aligning ball bearing.

22206C Spherical Roller Bearing Features:

1. It has high radial load capacity and is especially suitable for working under heavy load or vibration load.

2. The raceway of bearing outer ring is spherical, so its alignment performance is good and it can compensate coaxiality error.

3. Bearing has a large load capacity. In addition to the radial load, the bearing can also bear the axial load of bidirectional action and has a good impact resistance.

Packing Method:

We have multiple packages for shielded radial ball bearing 22206C


1. Industrial package: plastic tube + paper carton + wooden pallet


craft paper + paper carton + wooden pallet


2. Individual package: individual paper box + paper carton + wooden pallet


3. As customer's demand

Abrasion Resistance Single Row Spherical Roller Bearing 22206C 30mm Inner Ring DiameterAbrasion Resistance Single Row Spherical Roller Bearing 22206C 30mm Inner Ring Diameter

Factory Photo:

Abrasion Resistance Single Row Spherical Roller Bearing 22206C 30mm Inner Ring Diameter

How to Place an Order:


1. Send us your bearing inquiry, including your bearing models, your quantity. If you have brand requirement, please tell us which brand do you need as well.


2. We will quote bearing price for you. Moreover, According to the quantity of goods, we will give you different options of transportation.

3. If you agree with our price, we will make proforma invoice for payment


4. After payment is done, we will start to prepare bearings and arrange shipment

Specific classification and model comparison:

1. Self-aligning roller bearing (20000CC type)


2. Tapered Hole Self-aligning Roller Bearing (Model 20000 CCK)


3. Self-aligning roller bearing (20000CC/W33)


4. Tapered bore self-aligning roller bearing (20000 CCK/W33)


5. Hole-aligning roller bearings (20000 CCK+H0000) mounted on the fastening sleeve


6. Hole-aligning roller bearings mounted on the fastening sleeve (20000 CCK/W33+H0000 type)

FAQ

Q: Are you a trading company or a factory?


A: We have both. We are trading company and we have own factory.


Q: What is the delivery time if we place an order?


A: For small orders, our delivery time is 3 days. If the amount is large, usually our delivery time is 7-20 days.

Q: What is your payment term?


A: We accept T/T, W/U, PayPal and L/C.

Q: Do you have a warranty on bearings?


Answer: In normal use, our bearing guarantee period is 1 year.

Contact us:

Email:xue@yekbearing.cn
WhatsApp/Skype:+8613863540916
