Carbon Steel Bearing Spherical Roller Bearing 22205CA 53506H 25*52*18mm for Mining Machinery

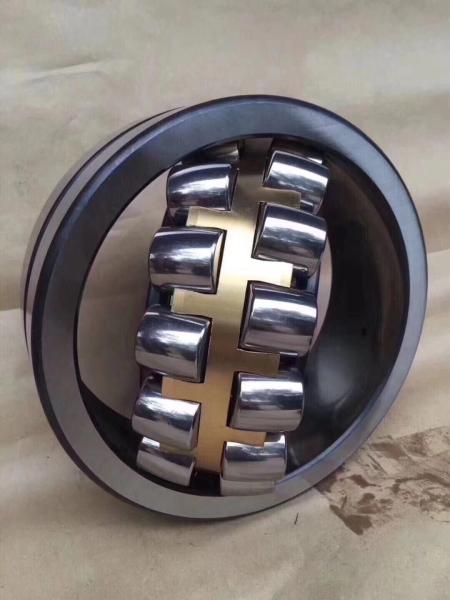

22205CA Spherical Roller Bearing:

25*52*18mm Bearing Features:

Inner Ring Diameter (bore): 25mm

Outer Ring Diameter:52mm

Width:18mm

Basic Dynamic Load Rating Cr:42.1kN

Basic Static Load Rating Cor:43.5kN

Grease:8100

Oil:11000

Bearings Weight:0.186KG

22205CA Spherical Roller Bearing Description:

22205CA Spherical Roller Bearing:

more models:

22205CA Spherical Roller Bearing Basic Species:

1. Cylindrical inner hole

The radial clearance of the bearing can be adjusted by moving the inner ring along the axis when the bearing is matched with the tapered shaft.

2. Tapered bore

The taper of tapered inner bore is 1:12 and 1:30 respectively. The rear codes are K-centered roller bearings (153000 or 113000) and K30-centered roller bearings.

22205CA Spherical Roller Bearing Description:

1. The self-aligning roller bearing is a bearing with drum roller assembled between the inner ring with two raceways and the outer ring with spherical raceway.

2. The curvature center of raceway surface of outer ring is the same as that of bearing, so it has the same aligning function as automatic aligning ball bearing.

22205CA Spherical Roller Bearing Applications:

1. Paper making machinery, deceleration device, axle of railway vehicle,

2. Bearing seat of gear box of rolling mill, roll of rolling mill, crusher, vibrating screen, printing machinery,

3. Woodworking machinery, decelerator for various industries, vertical bearing with center adjustment seat

Shipping Method:

1. For small amount (GW<100KGS), we can send you by express, such as DHL, Fedex, TNT etc

2. For GW between 100KGS to 500KGS, we can send you by sea shipping or air shipping

3. For large amount (GW > 500KGS), we can send you by sea

Factory Photo:

Bearing packaging:

1.Short anti-rust period packaging: anti-rust period of 3 to 6 months, suitable for large quantities of shipments to the same subscriber, short-term put into use of bearings. Simple packing is adopted on the principle of convenient use by mutual agreement.

2.General Anti-rust Period Packaging: Anti-rust Period of one year, suitable for general purpose bearings.

3.Long anti-rust period packaging: two years anti-rust period, suitable for special and precision bearings.

Bearing inner packaging materials are polyethylene plastic cylinder (box), kraft paper, plain and wrinkle polyethylene composite paper, carton, polyethylene or polyethylene plastic film, nylon fastening belt or plastic weaving fastening belt, waterproof high strength plastic belt, linen bag.

Structural characteristics:

1.The type code of custom Ball Bearings is 30000, and tapered roller bearings are separated bearings. Generally speaking, especially in GB/T307.1-94 "Tolerance of Rolling Bearing Centrifugal Bearing", the outer ring and inner assembly of tapered roller bearings are 100% interchangeable.

2.The angle of the outer ring and the diameter size of the outer raceway have been standardized. No changes are allowed during design and manufacture. So that the outer rings and inner components of tapered roller bearings can be interchanged all over the world.

3.Custom Ball Bearings are mainly used to withstand combined radial and axial loads, which are mainly radial loads. Compared with angular contact ball bearings, the bearing capacity is larger and the limit speed is lower. Tapered roller bearings can withstand an axial load in one direction and limit the axial displacement in one direction of the shaft or housing.

FAQ

Q1: Are you trading company or manufacturer ?

A: We are factory and professional manufactuer of bearings.

Q2: Can I get a sample to check out the quality ?

A: Sure, free samples are available for stock products if you can payfor the shipping cost.

Q3: Can you do OEM to print my logo/brand on the products ?

A: Yes, we can print your logo/brand on the products, you just need to send us your logo/brand files, we will show you how it looks like before shipping out.

Q4: How long is your delivery time ?

A.Generally we have regular stocks for standard bearings that can be shippedin 2 days after your payment. It will take 15-35 days for new production order, which depends on your order quantity.
