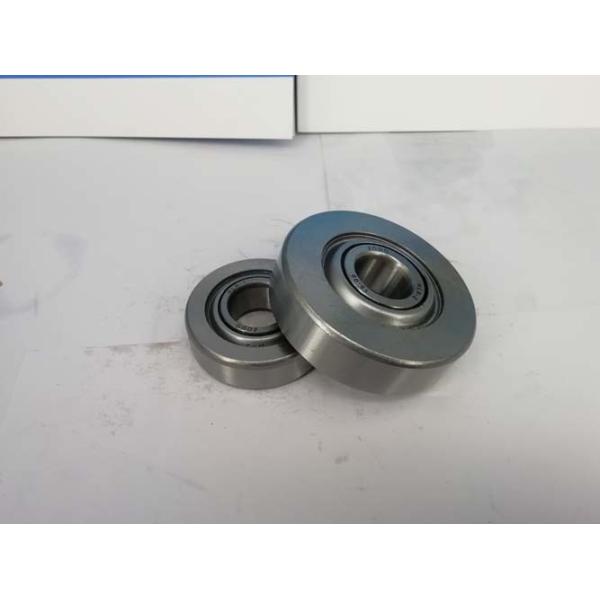

Agricultural Machine Bearings / Disc Plough Bearings W208PPB23
Agricultural Machine Bearings / Disc Plough Bearings W208PPB23
Specifications
Brand Name :
DEEG
Model Number :
W208PPB23
Certification :
ISO9001 , ISO14001
Place of Origin :
China
MOQ :
1PC
Price :
USDN1/ Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000 Piece/Pieces per Month
Delivery Time :
5-10Days
Packaging Details :
Single Box(White Box/Color Box/Wooden Box),or per your requst.
Model :
W208PPB23
Material :
GCR15
Rolling Element :
Balls
Vibration Level :
V2,V3
Precision Degree :
P6,P5,P4
Feature :
High Precision
Description

Agricultural Machinery Bearing W208PPB23 Steel Bearing CR15 Certified ISO9001

W208PPB23 Agricultural Machinery Bearing

Farm Bearing Features:

Inner Ring Diameter (bore):1.5005 Inch

Outer Ring Diameter: 3.1496 Inch

Weight:1.5Kg

W208PPB23 Agricultural Machinery Bearing Description:

Model Number W208PPB23
Inside Diameter: 38.113
Outside Diameter: 80.000
Seal Type: Double Shielded, 2RS
Material: Chrome steel, Gcr15
Precision Rating: P0-P5
Brand: TOPE or other brands
Payment term: T/T,L/C,Western Union, PayPal
Delivery time: 1-5 days for small amout, 15-40 days for big amount

W208PPB23 Agricultural Machinery Bearing

Agricultural Machine Bearings / Disc Plough Bearings W208PPB23

more models:

U:in

mm

Bearing No. d D Be Bi Load Rating(KN)

Weight

Lbs.
W208PPB2 1.5005 3.1496 0.7090 1.6880 7340 3650 1.59
38.113 80.000 18.000 42.875
W208PPB7 1.1880 3.1496 0.7090 1.1880 7340 3650 1.41
30.175 80.000 18.000 30.175
W208PP10 1.5005 3.1496 0.8270 1.6880 7340 3650 1.50
38.113 80.000 21.000 42.875
W208PPB10 1.5005 3.1496 0.8270 1.6680 7340 3650 1.59
38.113 80.000 21.000 42.875
W208PPB23 1.5005 3.1496 1.1880 1.6880 7340 3650 1.50
38.113 80.000 30.175 42.875
W209PPB2 1.7717 3.3460 1.1880 1.1880 7350 4150 1.45
45.000 85.000 30.175 30.175
W209PPB4 1.5350 3.3460 1.1880 1.1880 7350 4150 1.65
39.000 85.000 30.175 30.175
W210PP2 1.9380 3.5433 1.1880 1.1880 7880 4650 1.69
49.225 90.000 30.175 30.175
W210PPB2 1.9380 3.5430 1.1880 1.1880 7350 4150 1.56
49.225 90.000 30.175 30.175
W210PPB5 1.7850 3.5430 1.1880 1.1880 7880 4650 1.75
45.339 90.000 30.175 30.175
W210PP8 1.5300 3.5433 1.1880 1.1880 7880 4650 1.97
38.862 90.000 30.175 30.175
W210PPB9 1.9448 3.5433 1.1880 1.1880 7880 4650 1.91
49.400 90.000 23.000 36.530
W211PP2 2.1880 3.9370 1.3120 1.3120 9740 5850 2.33
55.575 100.000 33.325 33.325
W211PPB2 2.1880 3.9370 1.3120 1.3120 9740 5850 3.00
55.575 100.000 33.325 33.325
W211PPB4 2.1880 3.9370 1.3120 1.3120 9740 5850 3.63
55.575 100.000 33.325 55.500
W214PP2 2.7559 4.9213 1.5620 1.5620 14000 8800 4.19
70.000 125.000 39.675 39.675
W214PPB2 2.7559 4.9213 1.5620 1.5620 14000 8800 3.96
70.000 125.000 39.675 39.675
W214PPB9 2.7660 4.9213 1.1020 1.7500 14000 8800 3.96
70.256 125.000 28.000 44.450

W208PPB23 Agricultural Machinery Bearing Competition Advantages:

1. Coaxiality of the sealing contact surface means that the sealing function and service life have been significantly improved


2. The outer cover extends toward the width of the sealing ring to ensure the protection of the sealing lip against mechanical damage.


3. Galvanized inner cover and outer cover

W208PPB23 Agricultural Machinery Bearing Applications:

1. Plough disc connection bearing


2. Tillers, tractors, lawn harvesters,


3. Balers and high-power harvesting machines


4. Such as green feed harvesters and combine harvesters

Shipping Methods:

1. For small amount (GW<100KGS), we can send you by express, such as DHL, Fedex, TNT etc


2. For GW between 100KGS to 500KGS, we can send you by sea shipping or air shipping


3. For large amount (GW > 500KGS), we can send you by

Factory Photos:

Agricultural Machine Bearings / Disc Plough Bearings W208PPB23Agricultural Machine Bearings / Disc Plough Bearings W208PPB23

How to place an order:

1. Send us your bearing inquiry, including your bearing models, your quantity. If you have brand requirement, please tell us which brand do you need as well.


2. We will quote bearing price for you. Moreover, According to the quantity of goods, we will give you different options of transportation.

3. If you agree with our price, we will make proforma invoice for payment


4. After payment is done, we will start to prepare bearings and arrange shipment

FAQ:

Q1: Are you trading company or manufacturer ?


A: We are factory and professional manufactuer of bearings.

Q2: Can I get a sample to check out the quality ?


A: Sure, free samples are available for stock products if you can payfor the shipping cost.

Q3: Can you do OEM to print my logo/brand on the products ?


A: Yes, we can print your logo/brand on the products, you just need to send us your logo/brand files, we will show you how it looks like before shipping out.

Q4: How long is your delivery time ?

A: Generally we have regular stocks for standard bearings that can be shippedin 2 days after your payment. It will take 15-35 days for new production order, which depends on your order quantity.
