5204-2RS Machine Spindle Bearings Rubber Seals Type 19.7 KN Load
5204-2RS Machine Spindle Bearings Rubber Seals Type 19.7 KN Load
Specifications
Brand Name :
DEEG
Model Number :
5204-2RS
Certification :
ISO9001 , ISO14001
Place of Origin :
China
MOQ :
1PC
Price :
USDN1/ Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000 Piece/Pieces per Month
Delivery Time :
5-10Days
Packaging Details :
Single Box(White Box/Color Box/Wooden Box),or per your requst.
Model :
5204-2RS
Rolling Element :
Balls
Material :
GCR15
Number Of Row :
Double Row
Vibration Level :
V2,V3
Seals Type :
Rubber Seals
Description

Bearing Steel GCR15 5204-2RS Double Row Angular Contact Ball Bearing High Mechanical Efficiency

5204-2RS Double Row Angular Contact Ball Bearing


20*47*20.6mm Bearing Features:


Inner Ring Diameter (bore):0.787 Inch

Outer Ring Diameter:1.850 Inch

Width:0.811 Inch

Dynamic load:19.7 KN

The static load:12.6 KN

Bearing Weight:0.120KG


5204-2RS Double Row Angular Contact Ball Bearing Description:

Model Number 5204-2RS
Inside Diameter: 25/32
Outside Diameter: 1 27/32
Thickness: 13/16
Seal Type: Double Shielded, 2RS
Material: Chrome steel, Gcr15
Precision Rating: P0-P5
Brand: TOPE or other brands
Payment term: T/T,L/C,Western Union, PayPal
Delivery time: 1-5 days for small amout, 15-40 days for big amount

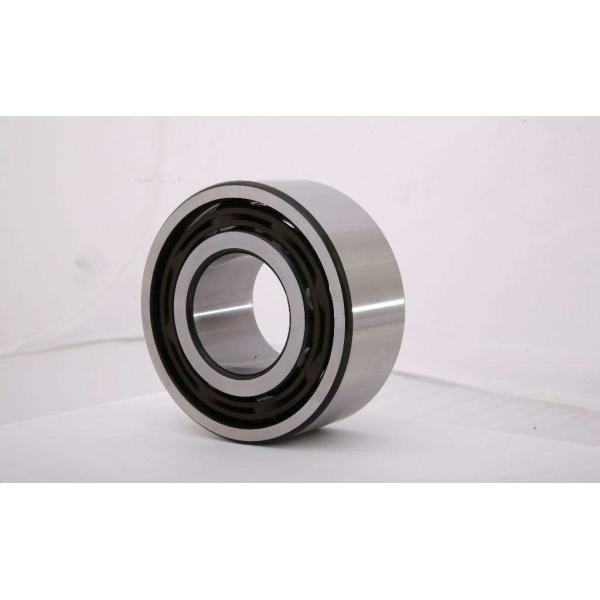

5204-2RS Double Row Angular Contact Ball Bearing

5204-2RS Machine Spindle Bearings Rubber Seals Type 19.7 KN Load

more models:

Bearing NO. Boundary dimensions Load Rating Limiting Speed Weight(Kg)
Open With shields With seals d D B гmin Open Seal Grease Oil
Cr Cor Cr Cor Z,ZZ RS,2RS Z
3200 10 30 14.3 0.6 7.35 5.35 15000 20000 0.052
3201 12 32 15.9 0.6 9.70 7.15 14000 18000 0.063
3202

15

 35 15.9 0.6 9.70 7.45 12000 16000 0.072
3302 42 19 1 15.2 11.9 10000 14000 0.132
3203

17

 40 17.5 0.6 13.8 10.8 11000 14000 0.100
5203 5203ZZ 5203 2RS 40 17.5 0.6 13.2 8.15 12.7 8.35 11000 11000 14000 0.091
3303 47 22.5 1 21.7 17.1 9400 13000 0.192
3204

20

 47 20.6 1 17.2 15.0 9000 12000 0.170
5204 5204ZZ 5204 2RS 47 20.6 1 19.7 12.6 16.0 10.8 8800 8800 12000 0.120
3304 52 22.2 1.1 20.8 18.4 8200 11000 0.230
5304 5304ZZ 5304 2RS 52 22.2 1.1 24.7 15.0 19.8 12.8 8300 8300 11000 0.230
3205

25

 52 20.6 1 18.9 18.2 7800 10000 0.190
5205 5205ZZ 5205 2RS 52 20.6 1 21.4 14.8 18.9 13.8 7700 7700 10000 0.190
3305 62 25.4 1.1 28.9 26.5 6800 9100 0.369
5305 5305ZZ 5305 2RS 62 25.4 1.1 32.7 20.8 27.5 18.5 6900 6900 9200 0.340
3206

30

 62 23.8 1 27.3 27.0 6500 8700 0.320
5206 5206ZZ 5206 2RS 62 23.8 1 29.7 21.3 25.4 18.3 6400 6400 8600 0.290
3306 72 30.2 1.1 38.1 36.1 5800 7800 0.585
5306 5306ZZ 5306 2RS 72 30.2 1.1 41.0 28.5 34.3 25.2 5800 5800 7700 0.510
3207

35

 72 27 1.1 36.8 37.5 5600 7500 0.480
5207 5207ZZ 5207 2RS 72 27 1.1 39.2 29.0 31.7 24.6 5500 5500 7300 0.430
3307 80 34.9 1.5 48.6 46.8 5200 7000 0.816
5307 5307ZZ 53072RS 80 34.9 1.5 51.2 36.2 46.1 32.8 5100 5100 6800 0.790
3208

40

 80 30.2 1.1 42.0 43.9 5000 6700 0.650
5208 5208ZZ 5208 2RS 80 30.2 1.1 44.4 33.6 36.5 29.1 5000 5000 6700 0.570
3308 90 36.5 1.5 54.1 53.8 4600 6100 1.07
5308 5308ZZ 5308 2RS 90 36.5 1.5 62.7 45.4 51.4 37.6 4600 4600 6100 1.05
3209

45

 85 30.2 1.1 45.4 51.4 4600 6100 0.710
5209 5209ZZ 5209 2RS 85 30.2 1.1 49.9 38.4 41.7 33.9 4600 4600 6100 0.620
3309 100 39.7 1.5 66.1 67.3 4100 5500 1.42
5309 5309ZZ 5309 2RS 100 39.7 1.5 75.1 55.7 68.9 51.4 4100 4100 5500 1.42

5204-2RS Double Row Angular Contact Ball Bearing Advantages:

1. Good reliability and long service life


2. Large rated load


3. Good shock resistance


4. Excellent sealing performance


5. High efficiency

5204-2RS Double Row Angular Contact Ball Bearing Description:

1. The design of double row angular contact ball bearings is basically the same as that of single row angular contact ball bearings, but only takes up less axial space.


2. Double row angular contact ball bearings can withstand radial loads and axial loads acting in two directions. It can limit the biaxial displacement of the shaft or shell, and the contact angle is 30 degrees.


3. It can provide high rigidity bearing configuration and can withstand overturning moment.

Shipping Method:

1. For small amount (GW<100KGS), we can send you by express, such as DHL, Fedex, TNT etc

2. For GW between 100KGS to 500KGS, we can send you by sea shipping or air shipping


3. For large amount (GW > 500KGS), we can send you by sea

5204-2RS Machine Spindle Bearings Rubber Seals Type 19.7 KN Load

Factory Photo:

5204-2RS Machine Spindle Bearings Rubber Seals Type 19.7 KN Load

Structural classification:


1.Standard design of type A bearings with outer diameter less than or equal to 90 mm. There is no gap in the ball, so it can bear the same two-way axial load. With light glass fiber reinforced nylon 66 cage, the bearing temperature rise is very small.

2.Standard design of type B bearing with diameter greater than 90 mm. On one side, there is a ball-loading gap, which is equipped with steel stamping cage or brass solid cage.

3.Type C is a reinforced structure, with a filling gap on one side, more steel balls can be loaded, so the bearing capacity is higher.

4.Double row angular contact ball bearings with dustproof cover on both sides and seal ring on both sides can be designed with dustproof cover (non-contact type) or seal ring (contact type) on both sides. The interior of sealed bearing is filled with anti-rust lithium grease, and the operating temperature is generally - 30 ~+110 C.

How to place an order:

1. Send us your bearing inquiry, including your bearing models, your quantity. If you have brand requirement, please tell us which brand do you need as well.


2. We will quote bearing price for you. Moreover, According to the quantity of goods, we will give you different options of transportation.

3. If you agree with our price, we will make proforma invoice for payment


4. After payment is done, we will start to prepare bearings and arrange shipment

FAQ:

Q1: Are you trading company or manufacturer ?


A: We are factory and professional manufactuer of bearings.

Q2: Can I get a sample to check out the quality ?


A: Sure, free samples are available for stock products if you can payfor the shipping cost.

Q3: Can you do OEM to print my logo/brand on the products ?


A: Yes, we can print your logo/brand on the products, you just need to send us your logo/brand files, we will show you how it looks like before shipping out.

Q4: How long is your delivery time ?

A: Generally we have regular stocks for standard bearings that can be shippedin 2 days after your payment. It will take 15-35 days for new production order, which depends on your order quantity.
