5309-2RS Double Row Angular Contact Ball Bearing High Mechanical Efficiency Certified ISO9001

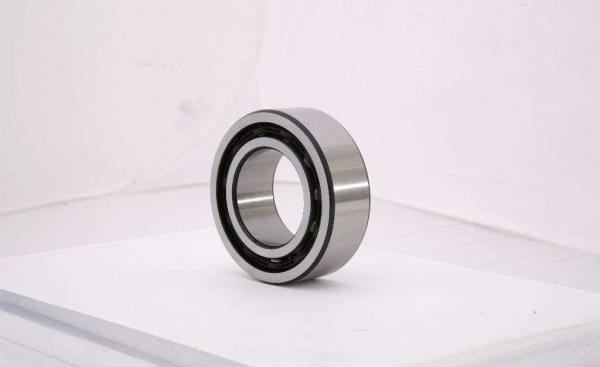

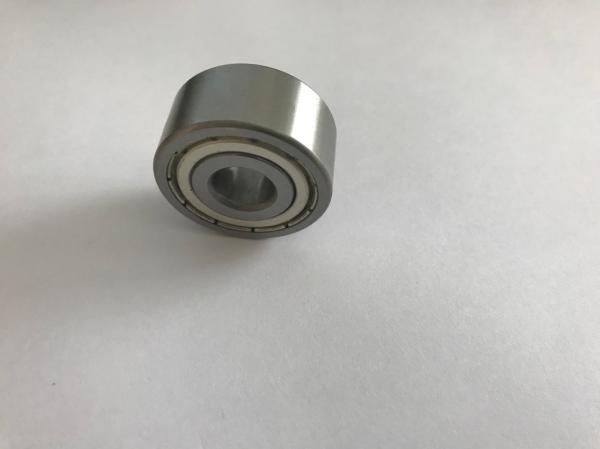

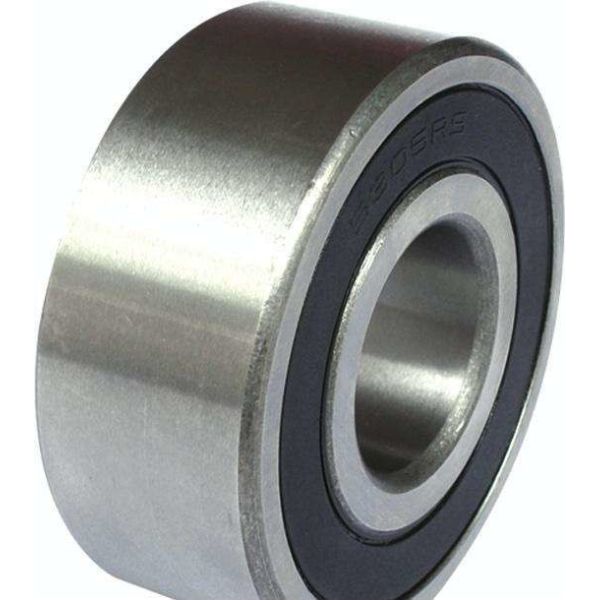

5309-2RS Double Row Angular Contact Ball Bearing
45*100*39.7mm Bearing Features:
Inner Ring Diameter (bore):1.771Inch
Outer Ring Diameter:3.937 Inch
Width:1.562 Inch
Dynamic load:68.9Kn
The static load:51.4Kn
Bearing Weight:1.42KG
5309-2RS Double Row Angular Contact Ball Bearing Description:
Model Number: | 5309-2RS |
Inside Diameter: | 1 49/64 |
Outside Diameter: | 3 15/16 |
Thickness: | 1 9/16 |
Seal Type: | Double Shielded, 2RS |
Material: | Chrome steel, Gcr15 |
Precision Rating: | P0-P5 |
Brand: | TOPE or other brands |
Payment term: | T/T,L/C,Western Union, PayPal |
Delivery time: | 1-5 days for small amout, 15-40 days for big amount |
more models:
Bearing NO. | Boundary dimensions | Load Rating | Limiting Speed | Weight(Kg) | |||||||||||
Open | With shields | With seals | d | D | B | гmin | Open | Seal | Grease | Oil | |||||
Cr | Cor | Cr | Cor | Z,ZZ | RS,2RS | Z | |||||||||
3210 |
50 | 90 | 30.2 | 1.1 | 45.1 | 52.1 | 4300 | 5700 | 0.760 | ||||||
5210 | 5210ZZ | 5210 2RS | 90 | 30.2 | 1.1 | 53.1 | 43.6 | 44.1 | 37.9 | 4300 | 4300 | 5600 | 0.670 | ||
3310 | 110 | 44.4 | 2 | 86.1 | 88.6 | 3800 | 5000 | 1.95 | |||||||
5310 | 5310ZZ | 53102RS | 110 | 44.4 | 2 | 88.5 | 67.0 | 81.8 | 62.2 | 3600 | 3600 | 4800 | 1.93 | ||
3211 |
55 | 100 | 33.3 | 1.5 | 50.9 | 60.2 | 3900 | 5100 | 1.05 | ||||||
5211 | 5211ZZ | 5211 2RS | 100 | 33.3 | 1.5 | 65.9 | 55.2 | 52.9 | 44.7 | 3800 | 3800 | 5100 | 0.960 | ||
3311 | 120 | 49.2 | 2 | 101 | 106 | 3400 | 4500 | 2.53 | |||||||
5311 | 5311ZZ | 5311 2RS | 120 | 49.2 | 2 | 110 | 85.1 | 95.7 | 74.3 | 3300 | 3300 | 4500 | 2.30 | ||
3212 |
60 | 110 | 36.5 | 1.5 | 64.0 | 76.8 | 3500 | 4700 | 1.40 | ||||||
5212 | 5212ZZ | 5212 2RS | 110 | 36.5 | 1.5 | 74.4 | 60.8 | 62.6 | 55.9 | 3500 | 3500 | 4700 | 1.36 | ||
3312 | 130 | 54 | 2.1 | 125 | 132 | 3100 | 4200 | 3.24 | |||||||
5312 | 5312ZZ | 5312 2RS | 130 | 54 | 2.1 | 126 | 98.7 | 110 | 87.1 | 3100 | 3100 | 4100 | 3.16 | ||
3213 |
65 | 120 | 38.1 | 1.5 | 76.4 | 97.4 | 3200 | 4300 | 1.75 | ||||||
5213 | 5213ZZ | 5312 2RS | 120 | 38.1 | 1.5 | 86.9 | 75.3 | 69.2 | 63.1 | 3200 | 3200 | 4300 | 1.66 | ||
3313 | 140 | 58.7 | 2.1 | 142 | 153 | 2900 | 3900 | 4.08 | |||||||
5313 | 5313ZZ | 5313 2RS | 140 | 58.7 | 2.1 | 142 | 113 | 142 | 113 | 2900 | 2900 | 3900 | 3.91 |
5309-2RS Double Row Angular Contact Ball Bearing Description:
1. The design of double row angular contact ball bearings is basically the same as that of single row angular contact ball bearings, but only takes up less axial space.
2. Double row angular contact ball bearings can withstand radial loads and axial loads acting in two directions.
3. It can limit the biaxial displacement of the shaft or shell, and the contact angle is 30 degrees.
4. It can provide high rigidity bearing configuration and can withstand overturning moment.
5309-2RS Double Row Angular Contact Ball Bearing Advantages:
1. High-quality steel: Ultra-clean steel bearings extend up to 80% of life.
2. Advanced grease technology: Seiko grease, can extend life and performance.
3. Super finished raceway: special grinding to reduce noise, improve lubricant distribution and life.
4. Patent seals provide protection against pollution in the worst environments.
5. Quality Assurance: 100% testing to ensure the quality of the whole product.
Shipping method:
1. For small amount (GW<100KGS), we can send you by express, such as DHL, Fedex, TNT etc
2. For GW between 100KGS to 500KGS, we can send you by sea shipping or air shipping
3. For large amount (GW > 500KGS), we can send you by sea
Factory Photo:
How to place an order:
1. Send us your bearing inquiry, including your bearing models, your quantity. If you have brand requirement, please tell us which brand do you need as well.
2. We will quote bearing price for you. Moreover, According to the quantity of goods, we will give you different options of transportation.
3. If you agree with our price, we will make proforma invoice for payment
4. After payment is done, we will start to prepare bearings and arrange shipment
Quality In Everything We Do:
1.Suppliers quality: working only with the best
Our Supplier Quality and Development (SQD) division guarantees the flawless supply of highest quality raw materials and components.
Process quality: accurate, on-time production
All manufacturing facilities employ a Lean approach in manufacturing, involving every team member in a philosophy of continuous improvement. We have state-of-the-art production lines in all our plants. The integrated manufacturing process controls enable us to check 100% of the parts at every critical production step.
2.OEM-Quality Products
We deliver our products to leading global manufacturers of transmissions, axles, differentials, and fluid pumps amongst others; these customers use our products directly or integrate them into their Original Equipment.
FAQ:
Q1: Are you trading company or manufacturer ?
A: We are factory and professional manufactuer of bearings.
Q2: Can I get a sample to check out the quality ?
A: Sure, free samples are available for stock products if you can payfor the shipping cost.
Q3: Can you do OEM to print my logo/brand on the products ?
A: Yes, we can print your logo/brand on the products, you just need to send us your logo/brand files, we will show you how it looks like before shipping out.
Q4: How long is your delivery time ?
A: Generally we have regular stocks for standard bearings that can be shippedin 2 days after your payment. It will take 15-35 days for new production order, which depends on your order quantity.
Contact us:
Email:xue@yekbearing.cn
WhatsApp/Skype:+8613863540916
