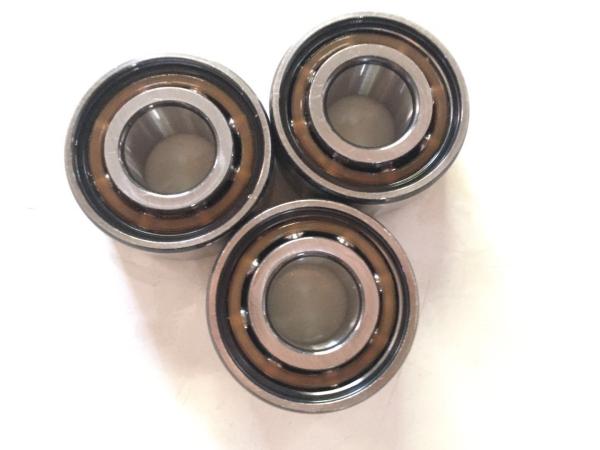

Electrical Machinery Wheel Ball Bearing / Air Compressor Bearing 7307B
Electrical Machinery Wheel Ball Bearing / Air Compressor Bearing 7307B
Electrical Machinery Wheel Ball Bearing / Air Compressor Bearing 7307B
Electrical Machinery Wheel Ball Bearing / Air Compressor Bearing 7307B
Specifications
Brand Name :
DEEG
Model Number :
7307B
Certification :
ISO9001 , ISO14001
Place of Origin :
China
MOQ :
1PC
Price :
USDN1/ Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000 Piece/Pieces per Month
Delivery Time :
5-10Days
Packaging Details :
Single Box(White Box/Color Box/Wooden Box),or per your requst.
Model :
7307B
Material :
GCR15
Structures :
Angular Contact Ball bearing
Precision Degree :
P0,P6,P5
Retaining Applicance :
Woolen retainer
Seals Type :
Rubber Seals
Description

Singel Row Angular Contact Ball Bearing 7307B NSK Technology For Electrical Machinery Wheel

7307B Singel Row Angular Contact Ball Bearing


30*72*19mm Bearing Features:


Inner Ring Diameter (bore):35mm

Outer Ring Diameter:80mm

Width:21mm

Dynamic load:39

The static load:25

Bearing Weight:0.447KG


7307B Singel Row Angular Contact Ball Bearing Description:

Model Number 7307B
Inside Diameter: 35mm
Outside Diameter: 80mm
Thickness: 21mm
Seal Type: Double Shielded, 2RS
Material: Chrome steel, Gcr15
Precision Rating: P0-P5
Brand: TOPE or other brands
Payment term: T/T,L/C,Western Union, PayPal
Delivery time: 1-5 days for small amout, 15-40 days for big amount

7307B Singel Row Angular Contact Ball Bearing

Electrical Machinery Wheel Ball Bearing / Air Compressor Bearing 7307B

more models:

Main dimensions Model rs r1s Weight Setting load Limit speed
d D B 　 min min kg Cr(KN) Cor(KN) min-1
10 30 9 7200B.TVP 0.6 0.3 0.032 5 2.5 32000
12 32 10 7201B.TVP 0.6 0.3 0.035 6.95 3.4 28000
　 37 12 7301B.TVP 1 0.6 0.06 10.6 5 24000
15 35 11 7202B.TVP 0.6 0.3 0.044 8 4.3 24000
　 42 13 7302B.TVP 1 0.6 0.082 12.9 6.55 20000
17 40 12 7203B.TVP 0.6 0.6 0.065 10 5.5 20000
　 47 14 7303B.TVP 1 0.6 0.109 16 8.3 18000
20 47 14 7204B.TVP 1 0.6 0.104 13.4 7.65 18000
　 52 15 7304B.TVP 1.1 0.6 0.143 19 10.4 17000
25 52 15 7205B.TVP 1 0.6 0.127 14.6 9.3 16000
　 62 17 7305B.TVP 1.1 0.6 0.223 26 15 14000
30 62 16 7206B.TVP 1 0.6 0.196 20.4 13.4 13000
　 72 19 7306B.TVP 1.1 0.6 0.341 32.5 20 11000
35 72 17 7207B.TVP 1.1 0.6 0.282 27 18.3 11000
　 80 21 7307B.TVP 1.5 1 0.447 39 25 9500
40 80 18 7208B.TVP 1.1 0.6 0.367 32 23.2 9500
　 90 23 7308B.TVP 1.5 1 0.609 50 32.5 8500
45 85 19 7209B.TVP 1.1 0.6 0.405 36 26.5 8500
　 100 25 7309B.TVP 1.5 1 0.812 60 40 7500
50 90 20 7210B.TVP 1.1 0.6 0.458 37.5 28.5 8000
　 110 27 7310B.TVP 2 1 1.05 69.5 47.5 7000
55 100 21 7211B.TVP 1.5 1 0.604 46.5 36 7000
　 120 29 7311B.TVP 2 1 1.38 78 56 6300
60 110 22 7212B.TVP 1.5 1 0.78 56 44 6300
　 130 31 7312B.TVP 2.1 1.1 1.72 90 65.5 5600
65 120 23 7213B.TVP 1.5 1 1 64 53 6000
　 140 33 7313B.TVP 2.1 1.1 2.12 102 75 5300
70 125 24 7214B.TVP 1.5 1 1.08 69.5 58.5 5600
　 150 35 7314B.TVP 2.1 1.1 2.57 114 863.5 5000
75 130 25 7215B.TVP 1.5 1 1.16 68 58.5 5300
　 160 37 7315B.TVP 2.1 1.1 3.08 127 100 4500
80 140 26 7216B.TVP 2 1 1.42 80 69.5 5000
　 170 39 7316B.TVP 2.1 1.1 3.66 140 114 4300
85 150 28 7217B.TVP 2 1 1.82 90 80 4500
　 180 41 7317B.TVP 3 1.1 4.26 150 127 4000
90 160 30 7218B.TVP 2 1 2.21 106 93 4300
　 190 43 7318B.TVP 3 1.1 4.99 160 140 3800
95 170 32 7219B.TVP 2.1 1.1 2.63 116 100 4000
　 200 45 7319B.TVP 3 1.1 5.77 173 153 3800
100 180 34 7220B.TVP 2.1 1.1 3.16 129 114 3800
　 225 49 7320B.TVP 3 1.1 7.16 193 180 3600
105 190 36 7221B.TVP 2.1 1.1 4.18 143 129 6000
　 225 49 7321B.TVP 3 1.1 9 200 193 5300
110 200 38 7222B.TVP 2.1 1.1 4.44 153 143 3600
　 240 50 7322B.TVP 3 1.1 9.73 224 224 3400
120 215 40 7224B.TVP 2.1 1.1 5.31 166 160 3400
　 260 55 7324B.TVP 3 1.1 12.4 250 260 3200
130 230 40 7226B.TVP 3 1.1 6.12 186 190 3200
　 280 58 7326B.TVP 4 1.5 15.1 275 300 3000
140 250 42 7228B.TVP 3 1.1 8.55 196 212 4800
　 320 65 7328B.TVP 4 1.5 20.4 300 340 4300
150 270 45 7230B.TVP 3 1.1 10.9 224 255 4500
　 320 65 7330B.TVP 4 1.5 24.8 325 390 3800

7307B Singel Row Angular Contact Ball Bearing Features:

1. It can bear both radial and axial loads at the same time. The higher the speed, the larger the contact angle and the higher the axial bearing capacity.


2. Ball loading is more than deep groove ball bearings, rated load is the largest in ball bearings, strong rigidity, smooth operation.

3. The radial clearance can be adjusted by the mutual displacement of inner and outer rings

4. High Speed, High Precision, Low Noise Precision Bearing

7307B Singel Row Angular Contact Ball Bearing Advantages:

1. Simple structure;


2. Higher limit speed;


3. The friction moment is relatively small.


4. It can bear both radial and axial loads.


5. The same size has larger dynamic and static load capacity than deep groove ball bearings.


6. High rotation accuracy and low noise.

Shipping Method:

1. For small amount (GW<100KGS), we can send you by express, such as DHL, Fedex, TNT etc

2. For GW between 100KGS to 500KGS, we can send you by sea shipping or air shipping


3. For large amount (GW > 500KGS), we can send you by sea

Electrical Machinery Wheel Ball Bearing / Air Compressor Bearing 7307B

Factory Photo:

Electrical Machinery Wheel Ball Bearing / Air Compressor Bearing 7307B

How to place an order:

1. Send us your bearing inquiry, including your bearing models, your quantity. If you have brand requirement, please tell us which brand do you need as well.


2. We will quote bearing price for you. Moreover, According to the quantity of goods, we will give you different options of transportation.

3. If you agree with our price, we will make proforma invoice for payment

4. After payment is done, we will start to prepare bearings and arrange shipment

FAQ:

Q1: Are you trading company or manufacturer ?


A: We are factory and professional manufactuer of bearings.

Q2: Can I get a sample to check out the quality ?


A: Sure, free samples are available for stock products if you can payfor the shipping cost.

Q3: Can you do OEM to print my logo/brand on the products ?


A: Yes, we can print your logo/brand on the products, you just need to send us your logo/brand files, we will show you how it looks like before shipping out.

Q4: How long is your delivery time ?

A: Generally we have regular stocks for standard bearings that can be shippedin 2 days after your payment. It will take 15-35 days for new production order, which depends on your order quantity.
