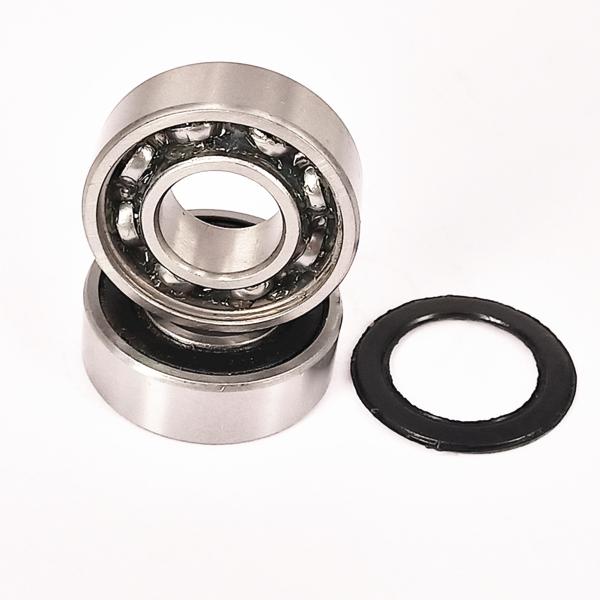

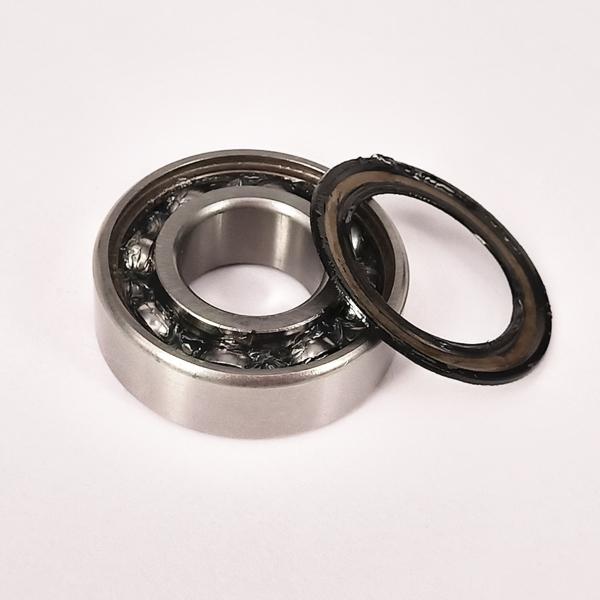

Steel Bearing Nonstandard Deep Groove Ball Bearings 1614 2RS 9.525*28.575*9.525mm For Textile Machinery
Steel Bearing Nonstandard Deep Groove Ball Bearings 1614 2RS 9.525*28.575*9.525mm For Textile Machinery
Steel Bearing Nonstandard Deep Groove Ball Bearings 1614 2RS 9.525*28.575*9.525mm For Textile Machinery
Steel Bearing Nonstandard Deep Groove Ball Bearings 1614 2RS 9.525*28.575*9.525mm For Textile Machinery
Steel Bearing Nonstandard Deep Groove Ball Bearings 1614 2RS 9.525*28.575*9.525mm For Textile Machinery
Steel Bearing Nonstandard Deep Groove Ball Bearings 1614 2RS 9.525*28.575*9.525mm For Textile Machinery
Specifications
Brand Name :
DEEG
Model Number :
1614 2RS
Certification :
ISO9001 , ISO14001
Place of Origin :
China
MOQ :
1PC
Price :
USDN1/ Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000 Piece/Pieces per Month
Delivery Time :
5-10Days
Packaging Details :
Single Box(White Box/Color Box/Wooden Box),or per your requst.
Structure :
Deep Grove Ball Bearings
Rolling Element :
Ball
Inner Diameter :
9.525mm
Outside Diameter :
28.575mm
Material :
GCr15
Bearings Weight :
0.0286KG
Seals Type :
Rubber Seals
Vibration Level :
V2
Description

Steel Bearing Nonstandard Deep Groove Ball Bearings 1614 2RS 9.525*28.575*9.525mm For Textile Machinery

1614 2RS Deep Groove Ball Bearings

9.525*28.575*9.525mm Bearing Features:

Inner Ring Diameter (bore): 9.525mm

Outer Ring Diameter: 28.575mm

Width: 9.525mm

Basic Dynamic Load Rating Cr: 5.11 kN

Basic Static Load Rating Cor: 2.39 kN

Bearings Weight:0.0286KG

1614 Ball Bearing Description:

Model Number 1614 2RS
Structure: Deep groove ball
Inside Diameter: 9.525mm
Outside Diameter: 28.575mm
Thickness: 9.525mm
Seal Type: Double Shielded, 2RS
Material: Chrome steel, Gcr15
Precision Rating: P0-P5
Brand: TOPE or other brands
Weight: 0.0286KG
Payment term: T/T,L/C,Western Union, PayPal
Delivery time: 1-5 days for small amout, 15-40 days for big amount

1614-2RS Bearing

Steel Bearing Nonstandard Deep Groove Ball Bearings 1614 2RS 9.525*28.575*9.525mm For Textile Machinery

Steel Bearing Nonstandard Deep Groove Ball Bearings 1614 2RS 9.525*28.575*9.525mm For Textile Machinery

More models:

Bearing
NO.		 Boundary dimensions(mm) Load Rating(kN)

Weight

(kg)
d D B Cr Cor
1614 9.525 28.575 9.525 5.11 2.39 0.0286
1615 11.112 28.575 9.525 5.11 2.39 0.0267
1616 12.700 28.575 9.525 5.11 2.39 0.0247
1620 11.113 34.925 11.112 7.64 3.72 0.0520
1621 12.700 34.925 11.112 7.64 3.72 0.0490
1622 14.288 34.925 11.112 7.64 3.72 0.0464
1623 15.875 34.925 11.112 7.64 3.72 0.0432
1628 15.875 41.275 12.700 9.57 4.79 0.0788
1630 19.050 41.275 12.700 9.38 5.03 0.0779
1633 15.875 44.450 12.700 9.38 5.03 0.100
1635 19.050 44.450 12.700 9.38 5.03 0.0914
1638 19.050 50.800 14.288 12.84 6.65 0.1421
1639 20.638 50.800 14.288 12.84 6.65 0.1380
1640 22.225 50.800 14.288 12.84 6.65 0.1306
1641 25.400 50.800 14.288 14.02 7.88 0.1090
1652 28.575 63.500 15.375 16.21 10.42 0.2288
1654 31.750 63.500 15.875 16.21 10.42 0.2056
1657 31.750 65.088 17.462 16.21 10.42 0..2386
1658 33.388 65.088 17.642 16.21 10.42 0.2359

Packing method:

We have multiple packages for shielded radial ball bearing 6005-2RS

1. Industrial package: plastic tube + paper carton + wooden pallet

craft paper + paper carton + wooden pallet

2. Individual package: individual paper box + paper carton + wooden pallet

3. As customer's demand

Shipping method:

1. For small amount (GW<100KGS), we can send you by express, such as DHL, Fedex, TNT etc

2. For GW between 100KGS to 500KGS, we can send you by sea shipping or air shipping

3. For large amount (GW > 500KGS), we can send you by sea

FAQ:

Q1: Are you trading company or manufacturer ?

A: We are factory and professional manufactuer of bearings.

Q2: Can I get a sample to check out the quality ?

A: Sure, free samples are available for stock products if you can payfor the shipping cost.

Q3: Can you do OEM to print my logo/brand on the products ?

A: Yes, we can print your logo/brand on the products, you just need to send us your logo/brand files, we will show you how it looks like before shipping out.

Q4: How long is your delivery time ?

A: Generally we have regular stocks for standard bearings that can be shippedin 2 days after your payment. It will take 15-35 days for new production order, which depends on your order quantity.

Contact us:

Email: yang@yekbearing.cn
Mobile/Whatsapp/skype: +8613589478060
