Nonstandard Deep Groove Ball Bearings Gcr15 1652 2RS Open 28.575*63.500*15.375mm For Transmission Case
Nonstandard Deep Groove Ball Bearings Gcr15 1652 2RS Open 28.575*63.500*15.375mm For Transmission Case
Nonstandard Deep Groove Ball Bearings Gcr15 1652 2RS Open 28.575*63.500*15.375mm For Transmission Case
Nonstandard Deep Groove Ball Bearings Gcr15 1652 2RS Open 28.575*63.500*15.375mm For Transmission Case
Specifications
Brand Name :
DEEG
Model Number :
1652 ZZ 2RS
Certification :
ISO9001 , ISO14001
Place of Origin :
China
MOQ :
1PC
Price :
USD1/ Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000 Piece/Pieces per Month
Delivery Time :
5-10Days
Packaging Details :
Single Box(White Box/Color Box/Wooden Box),or per your requst.
Structure :
Deep Groove Ball Bearing
Rolling Element :
Balls
Size :
28.575*63.500*15.375mm
Material :
GCR15
Bearings Weight :
0.2238KG
Vibration Level :
V2
Description

Nonstandard Deep Groove Ball Bearings Gcr15 1652 2RS Open 28.575*63.500*15.375mm For Transmission Case

1652 2RS Deep Groove Ball Bearings :

1.125*2.5*0.605inch Bearing Features:

Inner Ring Diameter (bore): 28.575mm

Outer Ring Diameter:63.500mm

Width:15.375mm

Basic Dynamic Load Rating Cr: 16.21kN

Basic Static Load Rating Cor: 10.42kN

1652 Ball Bearing Description:

Model Number 1652-2RS
Structure Deep groove ball bearing
Inside Diameter 1 1/8
Outside Diamete 2 1/2
Thickness 3/5
Seal Type Double Shielded, 2RS
Material GCR15
Precision Rating P6 P5 P4
Number Of Row Single Row
Brand TOPE or other brands
Weight 0.2288 KG
Payment term T/T,L/C, Western Union, PayPal
Delivery time 1-5 days for small amout, 15-40 days for big amount

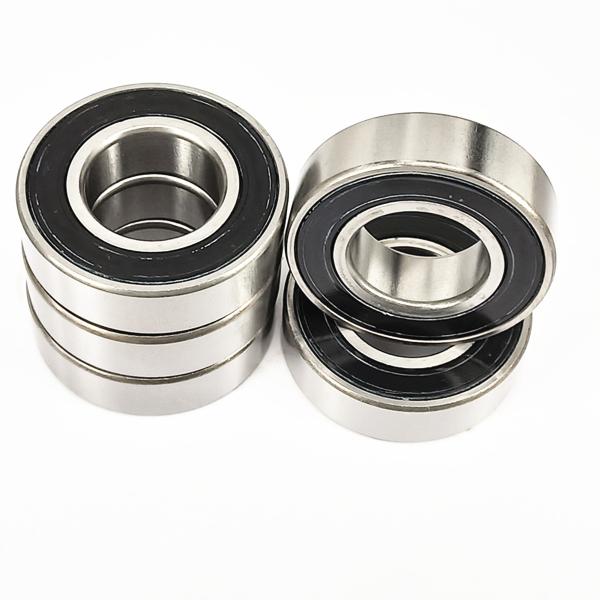

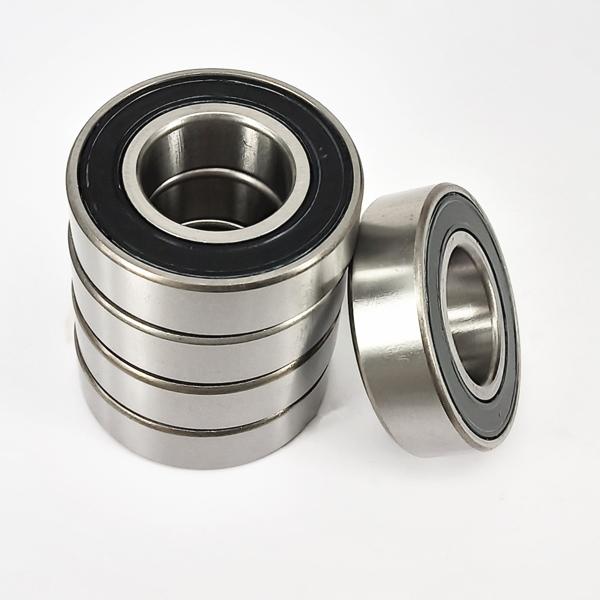

1652-2RS Bearings

Nonstandard Deep Groove Ball Bearings Gcr15 1652 2RS Open 28.575*63.500*15.375mm For Transmission CaseNonstandard Deep Groove Ball Bearings Gcr15 1652 2RS Open 28.575*63.500*15.375mm For Transmission Case

Relevant Types of Deep Groove Ball Bearings:

Bearing
NO.		 Boundary dimensions(mm) Load Rating(kN)

Weight

(kg)
d D B Cr Cor
1614 9.525 28.575 9.525 5.11 2.39 0.0286
1615 11.112 28.575 9.525 5.11 2.39 0.0267
1616 12.700 28.575 9.525 5.11 2.39 0.0247
1620 11.113 34.925 11.112 7.64 3.72 0.0520
1621 12.700 34.925 11.112 7.64 3.72 0.0490
1622 14.288 34.925 11.112 7.64 3.72 0.0464
1623 15.875 34.925 11.112 7.64 3.72 0.0432
1628 15.875 41.275 12.700 9.57 4.79 0.0788
1630 19.050 41.275 12.700 9.38 5.03 0.0779
1633 15.875 44.450 12.700 9.38 5.03 0.100
1635 19.050 44.450 12.700 9.38 5.03 0.0914
1638 19.050 50.800 14.288 12.84 6.65 0.1421
1639 20.638 50.800 14.288 12.84 6.65 0.1380
1640 22.225 50.800 14.288 12.84 6.65 0.1306
1641 25.400 50.800 14.288 14.02 7.88 0.1090
1652 28.575 63.500 15.375 16.21 10.42 0.2288
1654 31.750 63.500 15.875 16.21 10.42 0.2056
1657 31.750 65.088 17.462 16.21 10.42 0..2386
1658 33.388 65.088 17.642 16.21 10.42 0.2359

1652-2RS Deep Groove Ball Bearing Application:

1.Gearboxes,Instruments,Motors

2.Household Appliances,Internal Combustion Engines

3.Traffic Vehicles,Agricultural Machinery,construction machinery,oller skates

Packing method:

1.Industrial package: plastic tube + paper carton + wooden pallet

craft paper + paper carton + wooden pallet

2.Individual package: individual paper box + paper carton + wooden pallet

3.As customer's demand

How to place an order:

1.Send us your bearings inquiry, including your bearing model, quantity.

We will quote you the price of bearings. Moreover, we will give you a quotation for freight.

2.If you agree with our price, we will send you payment invoice.

3.After payment is completed, we will prepare bearings for you and arrange shipment.

FAQ:

Q: If we place an order, what is the delivery time?

A: For small orders, our delivery time is 5 days. If the amount is large, usually our delivery time is 7-20 days.

Question: What is the payment term of 6002-2RS bearing?

A: We accept T/T, W/U, PayPal and L/C.

Q: Do you have a warranty on your bearings?

Answer: In normal use, our bearing guarantee period is 1 year.

Nonstandard Deep Groove Ball Bearings Gcr15 1652 2RS Open 28.575*63.500*15.375mm For Transmission Case
