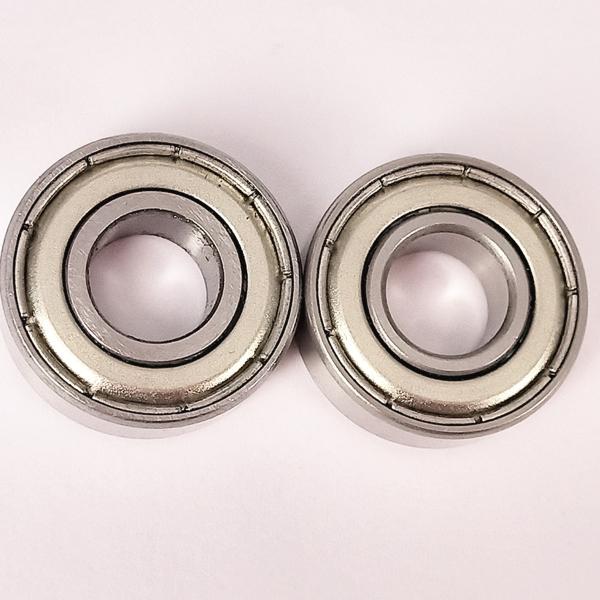

16018 90*140*16 Nonstandard Deep Groove Ball Bearings SKF GCR15 High speed
16018 90*140*16 Nonstandard Deep Groove Ball Bearings SKF GCR15 High speed
16018 90*140*16 Nonstandard Deep Groove Ball Bearings SKF GCR15 High speed
16018 90*140*16 Nonstandard Deep Groove Ball Bearings SKF GCR15 High speed
Specifications
Brand Name :
DEEG
Model Number :
1639-2RS
Certification :
ISO9001 , ISO14001
Place of Origin :
China
MOQ :
1PC
Price :
USDN1/ Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000 Piece/Pieces per Month
Delivery Time :
5-10Days
Packaging Details :
Single Box(White Box/Color Box/Wooden Box),or per your requst.
Structure :
Deep Grove Ball
Rolling Element :
Balls
umber Of Row :
Single Row
Precision Degree :
P6 P5 P4
Material :
Gcr15
Description

16018 90*140*16mm Nonstandard Deep Groove Ball Bearings SKF GCR15 High speed

16018 Nonstandard Deep Groove Ball Bearings

90*140*16 ball Bearing Features:

Inner Ring Diameter (bore):3.543inch

Outer Ring Diameter:5.1512inch

Width:0.630inch

16018 Ball Bearing Description:

Model Number 16018
Structure: Deep groove ball
Inside Diameter: 3 35/64
Outside Diameter: 5 33/64
Thickness: 5/8
Seal Type: Double Shielded, 2RS
Material: Chrome steel, Gcr15
Precision Rating: P0-P5
Brand: TOPE or other brands
Weight: 0.1380KG
Payment term: T/T,L/C,Western Union, PayPal
Retaining Applicance: Steel
Delivery time: 1-5 days for small amout, 15-40 days for big amount

16018 Bearing

16018 90*140*16 Nonstandard Deep Groove Ball Bearings SKF GCR15 High speed16018 90*140*16 Nonstandard Deep Groove Ball Bearings SKF GCR15 High speed

More models:

Bearing
NO.		 Boundary dimensions(mm) Load Rating(kN)

Weight

(kg)
d D B Cr Cor
1614 9.525 28.575 9.525 5.11 2.39 0.0286
1615 11.112 28.575 9.525 5.11 2.39 0.0267
1616 12.700 28.575 9.525 5.11 2.39 0.0247
1620 11.113 34.925 11.112 7.64 3.72 0.0520
1621 12.700 34.925 11.112 7.64 3.72 0.0490
1622 14.288 34.925 11.112 7.64 3.72 0.0464
1623 15.875 34.925 11.112 7.64 3.72 0.0432
1628 15.875 41.275 12.700 9.57 4.79 0.0788
1630 19.050 41.275 12.700 9.38 5.03 0.0779
1633 15.875 44.450 12.700 9.38 5.03 0.100
1635 19.050 44.450 12.700 9.38 5.03 0.0914
1638 19.050 50.800 14.288 12.84 6.65 0.1421
1639 20.638 50.800 14.288 12.84 6.65 0.1380
1640 22.225 50.800 14.288 12.84 6.65 0.1306
1641 25.400 50.800 14.288 14.02 7.88 0.1090
1652 28.575 63.500 15.375 16.21 10.42 0.2288
1654 31.750 63.500 15.875 16.21 10.42 0.2056
1657 31.750 65.088 17.462 16.21 10.42 0..2386
1658 33.388 65.088 17.642 16.21 10.42 0.2359

16018 Nonstandard Deep Groove Ball Bearing Describe:

1. Nonstandard Deep groove ball bearings are available in a variety of sizes and are the most popular of the rolling bearings.

2. This type of bearing supports radial load and a small degree of axial load in both directions simultaneously.

3. Nonstandard Deep groove ball bearings are popular due to their versatility, affordability, and capability to run at high speeds.

Working Principle:

1. Nonstandard Deep groove ball bearing can bear radial load, radial load and axial load.

2. When it only bears radial load, the contact Angle is zero. When the deep groove ball bearing has a large radial clearance.

3. It has the performance of angular contact bearing and can bear a large axial load.

1639-2RS 20.638*44.450*12.700mm Nonstandard Deep Groove Ball Bearing Applications:

1. Gearboxes,Instruments,Motors

2. Household Appliances,Internal Combustion Engines

3. Traffic Vehicles,Agricultural Machinery,construction machinery,oller skates

Fcatory Photos:

16018 90*140*16 Nonstandard Deep Groove Ball Bearings SKF GCR15 High speed16018 90*140*16 Nonstandard Deep Groove Ball Bearings SKF GCR15 High speed

16018 Nonstandard Deep Groove Ball Bearing Features:

1. High quality through hardened bearing steel used for basic construction.


2. Optimized raceway geometry and super finishing.


3. High precision accuracy and manufacturing consistency.


4. Proprietary high performance sealing options.


5. Premium grease as lubrication system.

How to Place an order:

1. Send us your bearing inquiry, including your bearing models, your quantity. If you have brand requirement, please tell us which brand do you need as well.


2. We will quote bearing price for you. Moreover, According to the quantity of goods, we will give you different options of transportation.


3. If you agree with our price, we will make proforma invoice for payment


4. After payment is done, we will start to prepare bearings and arrange shipment

Contact us:

Email: xue@yekbearing.cn

Mobile/Whatsapp/skype: +8613863540916
