High Mechanical Efficiency Nonstandard Deep Groove Ball Bearings W6205 For Textile Machinery
High Mechanical Efficiency Nonstandard Deep Groove Ball Bearings W6205 For Textile Machinery
High Mechanical Efficiency Nonstandard Deep Groove Ball Bearings W6205 For Textile Machinery
High Mechanical Efficiency Nonstandard Deep Groove Ball Bearings W6205 For Textile Machinery
High Mechanical Efficiency Nonstandard Deep Groove Ball Bearings W6205 For Textile Machinery
High Mechanical Efficiency Nonstandard Deep Groove Ball Bearings W6205 For Textile Machinery
Specifications
Brand Name :
DEEG
Model Number :
W6205-2RS
Certification :
ISO9001 , ISO14001
Place of Origin :
China
MOQ :
1PC
Price :
USDN1/ Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000 Piece/Pieces per Month
Delivery Time :
5-10Days
Packaging Details :
Single Box(White Box/Color Box/Wooden Box),or per your requst.
Structure :
Deep Grove Ball Bearings
Model :
W6205-2RS
Material :
GCR15
Precision Degree :
P6,P5,P4
Vibration Level :
V2,V3
Bearings Weight :
0.177KG
Number Of Row :
Single Row
Description

High Mechanical Efficiency Nonstandard Deep Groove Ball Bearings W6205 For Textile Machinery

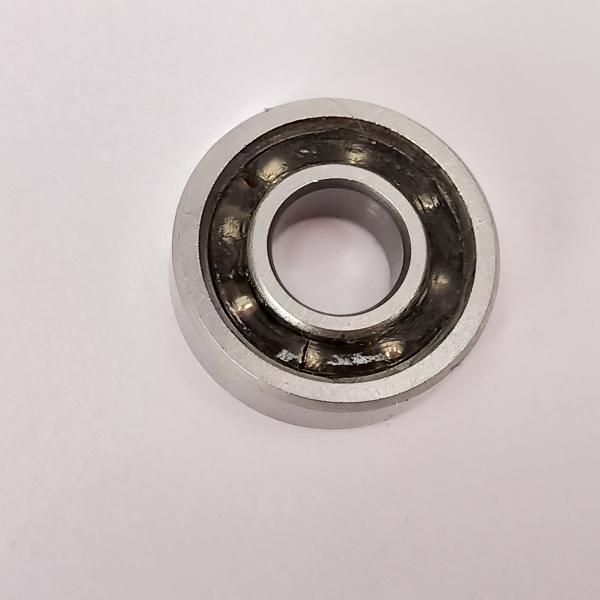

W6205-2RS Nonstandard Deep Groove Ball Bearings

25*52*20.6mm Bearing Features:

Inner Ring Diameter (bore): 0.984 Inch

Outer Ring Diameter:2.047 Inch

Width:0.811 Inch

Basic Dynamic Load Rating Cr: 14.02 kN

Basic Static Load Rating Cor: 7.88kN

Bearings Weight:0.177KG

W6205-2RS Ball Bearing Description:

Model Number W6205-2RS
Structure: Deep groove ball bearing
Inside Diameter: 63/64
Outside Diameter: 2 3/64
Thickness: 13/16
Seal Type: Double Shielded, 2RS
Material: Chrome steel, Gcr15
Precision Rating: P0-P5
Brand: TOPE or other brands
Payment term: T/T,L/C,Western Union, PayPal
Delivery time: 1-5 days for small amout, 15-40 days for big amount

W6205-2RS Ball Bearing

High Mechanical Efficiency Nonstandard Deep Groove Ball Bearings W6205 For Textile MachineryHigh Mechanical Efficiency Nonstandard Deep Groove Ball Bearings W6205 For Textile Machinery

more models:

Bearing
NO.		 Boundary dimensions(mm) Load Rating(kN)

Weight

(kg)
d D B Cr Cor
W6200 10 30 14.3 5.11 2.39 0.045
W6201 12 32 15.9 6.82 3.06 0.054
W6202 15 35 15.9 7.64 3.72 0.068
W6203 17 40 17.5 9.57 4.79 0.100
W6204 20 47 20.6 12.84 6.65 0.150
W6205 25 52 20.6 14.02 7.88 0.177
W6206 30 62 23.8 19.46 1.31 0.282
W6207 35 72 27.0 25.67 15.30 0.450
W6208 40 80 30.2 29.52 18.14 0.627
W6209 45 85 30.2 31.67 20.68 0.668
W6210 50 90 30.2 35.07 23.18 0.767
W6302 15 42 19.0 11.44 5.43 0.154
W6303 17 47 22.2 13.58 6.58 0.191
W6304 20 52 22.2 15.94 7.88 0.209
W6305 25 62 25.4 22.38 11.49 0.350
W6306 30 72 30.2 21.00 15.19 0.549
W6307 35 80 34.9 33.36 19.21 0.708
W6308 40 90 36.5 40.57 24.01 1.008
W6309 45 100 39.7 52.86 31.83 1.308
W6310 50 110 44.4 61.86 37.94 1.703

W6205-2RS Nonstandard Deep Groove Ball Bearings Describe:

1. Nonstandard deep groove ball bearings are available in a variety of sizes and are the most popular of the rolling bearings.

2. This type of bearing supports radial load and a small degree of axial load in both directions simultaneously.


3. Nonstandard deep groove ball bearings are popular due to their versatility, affordability, and capability to run at high speeds.

Shipping Methods:

1. For small amount (GW<100KGS), we can send you by express, such as DHL, Fedex, TNT etc


2. For GW between 100KGS to 500KGS, we can send you by sea shipping or air shipping


3. For large amount (GW > 500KGS), we can send you by sea

High Mechanical Efficiency Nonstandard Deep Groove Ball Bearings W6205 For Textile Machinery

W6205-2RS Nonstandard Deep Groove Ball Bearings Working Working Principle:

1. Nonstandard deep groove ball bearing can bear radial load, radial load and axial load.

2. When it only bears radial load, the contact Angle is zero. When the deep groove ball bearing has a large radial clearance.

3. It has the performance of angular contact bearing and can bear a large axial load.

W6205-2RS Nonstandard Deep Groove Ball Bearings Working Features:

1. High quality through hardened bearing steel used for basic construction.


2. Optimized raceway geometry and super finishing.


3. High precision accuracy and manufacturing consistency.


4. Proprietary high performance sealing options.


5. Premium grease as lubrication system.

Factory Photos:

High Mechanical Efficiency Nonstandard Deep Groove Ball Bearings W6205 For Textile MachineryHigh Mechanical Efficiency Nonstandard Deep Groove Ball Bearings W6205 For Textile Machinery

Quality In Everything We Do:

1. Suppliers quality: working only with the best.


Our Supplier Quality and Development (SQD) division guarantees the flawless supply of highest quality raw materials and components.
Process quality: accurate, on-time production.


All manufacturing facilities employ a Lean approach in manufacturing, involving every team member in a philosophy of continuous improvement. We have state-of-the-art production lines in all our plants. The integrated manufacturing process controls enable us to check 100% of the parts at every critical production step.


2. OEM-Quality Products


We deliver our products to leading global manufacturers of transmissions, axles, differentials, and fluid pumps amongst others; these customers use our products directly or integrate them into their Original Equipment.

FAQ:

Q1: Are you trading company or manufacturer ?


A: We are factory and professional manufactuer of bearings.

Q2: Can I get a sample to check out the quality ?


A: Sure, free samples are available for stock products if you can payfor the shipping cost.

Q3: Can you do OEM to print my logo/brand on the products ?


A: Yes, we can print your logo/brand on the products, you just need to send us your logo/brand files, we will show you how it looks like before shipping out.

Q4: How long is your delivery time ?

A: Generally we have regular stocks for standard bearings that can be shippedin 2 days after your payment. It will take 15-35 days for new production order, which depends on your order quantity.

Contact us:

Email: xue@yekbearing.cn

Mobile/Whatsapp/skype: +8613863540916
