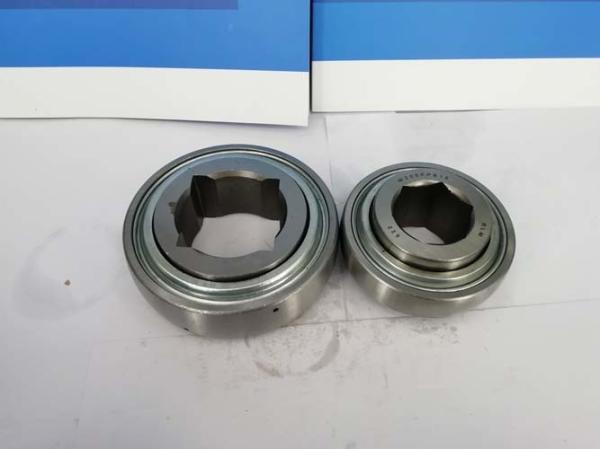

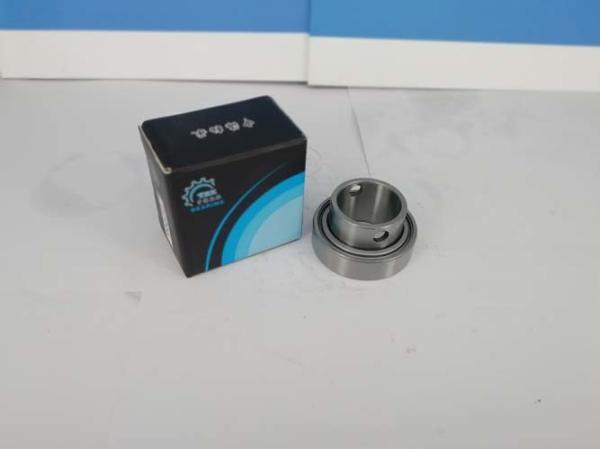

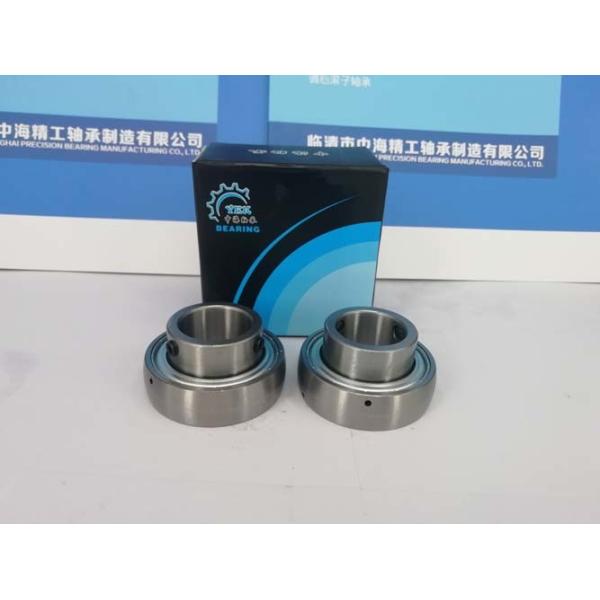

Steel Retainer W208PPB6 Disc Harrow Bearing GCR15 Agricultural Machinery Bearing For Hay Bale
W208PPB6 Agricultural Machinery Bearing
W208PPB6 Bearing Features:
A:1.030 Inch
D: 3.1496 Inch
Be:0.7090 Inch
Weight:1.59KG
W208PPB6 Agricultural Machinery Bearing Description:
Model Number | W208PPB6 |
Seal Type: | Double Shielded, 2RS |
Material: | Chrome steel, Gcr15 |
Precision Rating: | P0-P5 |
Brand: | TOPE or other brands |
Payment term: | T/T,L/C,Western Union, PayPal |
Delivery time: | 1-5 days for small amout, 15-40 days for big amount |
W208PPB6 Agricultural Machinery Bearing
more models:
Bearing No. | A | D | Be | Bi | Load Rating | Weight | ||
W208PP5 | 1 1/8 | 1.18 | 3.1496 | 0.709 | 1.438 | 7,340 | 3,650 | 1.5 |
28.575 | 29.970 | 80.000 | 18 | 36.520 | ||||
W208PPB5 | 4 1/8 | 1. 1800 | 3.1496 | 0.7090 | 1.4380 | 7,340 | 3,650 | 1.47 |
28.575 | 29.970 | 80.000 | 18 | 36.520 | ||||
W208PP6 | 1 | 1 .0300 | 3.1496 | 0.7090 | 1.4380 | 7,340 | 3,650 | 1.62 |
25.400 | 26.162 | 80.000 | 18 | 36.520 | ||||
W208PPB6 | 1 | 1 .0300 | 3.1496 | 0.7090 | 1.4380 | 7,340 | 3,650 | I .59 |
25.400 | 26.162 | 80.000 | 18.000 | 36.520 | ||||
W208PP8 | 1 1/8 | 1.1 800 | 3.1 496 | 1.1880 | 1.4380 | 7,340 | 3,650 | 1.66 |
28.575 | 29.972 | 80.000 | 30.175 | 36.520 | ||||
W208PPB8 | 1 1/8 | .J 800 | 3.1496 | 1.1880 | 1.4380 | 7,340 | 3,650 | 1.66 |
28.575 | 29.972 | 80.000 | 30.175 | 36.520 | ||||
W208PPB9 | 1 | 1.0300 | 3.1496 | 1.1880 | 1.4380 | 7,340 | 3,650 | J.74 |
25.400 | 26.162 | 80.000 | 30.175 | 36.520 | ||||
W208PPB11 | 7/8 | 0.9050 | 3.3760 | 1.1880 | J.4380 | 7,340 | 3,650 | 2.05 |
22.225 | 23.000 | 85.750 | 30.175 | 36.520 | ||||
W208PPB12 | 1 1/8 | 1.18 | 3.3760 | 1.1 880 | 1.4380 | 7,340 | 3,650 | 1.62 |
28.576 | 29.972 | 85.750 | 30. 1 75 | 36.520 | ||||
W208PPB13 | 7/8 | 0.9050 | 3. 1496 | 0.7090 | 1.4380 | 7,350 | 4,1 50 | 1.62 |
22.225 | 23.000 | 80.000 | 18.000 | 36.520 | ||||
W209PPB5 | 1 1 /4 | 1.2900 | 3.3465 | 1.1880 | J.4380 | 7,350 | 4,150 | J.75 |
31.750 | 32.766 | 85.000 | 30.175 | 36.520 | ||||
W209PPB7 | 1 1/4 | 1.2900 | 3.3760 | 1.1880 | 1.4375 | 7,880 | 4,650 | 1.80 |
31 .750 | 32.766 | 85.750 | 30.175 | 36.510 | ||||
W210PP4 | 1 1/8 | 1.1800 | 3.5433 | 1.1880 | 1.1880 | 7,880 | 4,650 | 1.92 |
28.575 | 29.972 | 90.000 | 30.175 | 30.150 | ||||
W210PPB4 | 1 1 /8 | 1.1800 | 3.5433 | 1.1880 | J.J 880 | 7,880 | 4,650 | 2.J J |
28.575 | 29.972 | 90.000 | 30.175 | 30.175 | ||||
W210PPB6 | 1 1/8 | 1.1 800 | 3.5433 | 1.1880 | 1.4380 | 9,740 | 5,850 | 2.11 |
28.575 | 29.972 | 90.000 | 30. 175 | 36.620 | ||||
W211PP3 | 1 1 /2 | 1.531 1 | 3.9370 | 1 .3120 | 1.34 20 | 9,740 | 5,850 | 2.79 |
38.100 | 38.890 | 1 00.00 | 33.324 | 33.324 | ||||
W211PPB3 | 1 1 /2 | 1.531 J | 3.9370 | 1.3120 | 1.3120 | 9,740 | 5,850 | 2.66 |
38.100 | 38.890 | 100.00 | 33.324 | 33.324 | ||||
W211PP5 | 1 1/2 | 1.5311 | 4.0000 | 1.4380 | 1.7500 | 9,740 | 5,850 | 3.38 |
38.1 00 | 38.890 | 101.600 | 36.520 | 44.450 | ||||
W211PPB6 | 1 1/2 | 1.5311 | 4.0770 | 1.4380 | 1.7500 | 9,740 | 5,850 | 4.05 |
38.1 | 38.890 | J 03.556 | 36.520 | 44.450 |
W208PPB6 Agricultural Machinery Bearing Features:
1. Agricultural Machinery Bearing is simple in structure and easy to use.
2. The largest batch production and the widest range of applications.
3. Preferred Bearing Type for User Selection.
4. Output accounts for more than 70% of the total output of bearings.
W208PPB6 Agricultural Machinery Bearing Advantages:
1. High operation precision;
2. Most rolling bearings can also be subjected to radial and axial loads, so the combined structure of bearings is simple;
3. For axle diameters of the same size, the width of rolling bearing is smaller than that of sliding bearing, which can make the axial structure of machinery compact;
4. Under ordinary conditions, the efficiency of rolling bearing is equal to that of hydrodynamic smooth bearing, but higher than that of inclusion smooth bearing.
Packing Method:
We have multiple packages for shielded radial ball bearing GW211PP3
1. Industrial package: plastic tube + paper carton + wooden pallet
craft paper + paper carton + wooden pallet
2. Individual package: individual paper box + paper carton + wooden pallet
3. As customer's demand
How to place an order:
1. Send us your bearing inquiry, including your bearing models, your quantity. If you have brand requirement, please tell us which brand do you need as well.
2. We will quote bearing price for you. Moreover, According to the quantity of goods, we will give you different options of transportation.
3. If you agree with our price, we will make proforma invoice for payment.
4. After payment is done, we will start to prepare bearings and arrange shipment.
FAQ:
Q1: Are you trading company or manufacturer ?
A: We are factory and professional manufactuer of bearings.
Q2: Can I get a sample to check out the quality ?
A: Sure, free samples are available for stock products if you can payfor the shipping cost.
Q3: Can you do OEM to print my logo/brand on the products ?
A: Yes, we can print your logo/brand on the products, you just need to send us your logo/brand files, we will show you how it looks like before shipping out.
Q4: How long is your delivery time ?
A: Generally we have regular stocks for standard bearings that can be shippedin 2 days after your payment. It will take 15-35 days for new production order, which depends on your order quantity.
