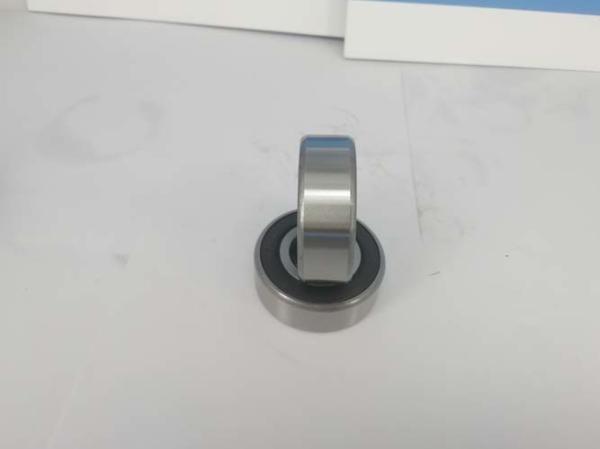

High Precision Lawn Mower Spindle Bearings G210KPPB2* Using Japanese Technology
High Precision Lawn Mower Spindle Bearings G210KPPB2* Using Japanese Technology
High Precision Lawn Mower Spindle Bearings G210KPPB2* Using Japanese Technology
High Precision Lawn Mower Spindle Bearings G210KPPB2* Using Japanese Technology
Specifications
Brand Name :
DEEG
Model Number :
G210KPPB2*
Certification :
ISO9001 , ISO14001
Place of Origin :
China
MOQ :
1PC
Price :
USDN1/ Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000 Piece/Pieces per Month
Delivery Time :
5-10Days
Packaging Details :
Single Box(White Box/Color Box/Wooden Box),or per your requst.
Model :
G210KPPB2*
Material :
GCR15
Precision Degree :
P6,P5,P4
Number Of Row :
Single Row
Bearings Weight :
2.00KG
Retaining Applicance :
Steel Retainer
Description

G210KPPB2* Agricultural Machinery Bearing High Precision GCR15 Steel Bearing Using Japanese Technology

G210KPPB2* Agricultural Machinery Bearing


31.750*90.000*30.000mm Bearing Features:


Inner Ring Diameter (bore):1.250 Inch

Outer Ring Diameter:3.5433 Inch

Width:1.1811 Inch

Dynamic load:7780

The static load:4650

G210KPPB2* Agricultural Machinery Bearing Description:

Model Number G210KPPB2*
Inside Diameter: 1 1/2
Outside Diameter: 3 35/64
Thickness: 1 3/16
Seal Type: Double Shielded, 2RS
Material: Chrome steel, Gcr15
Precision Rating: P0-P5
Brand: TOPE or other brands
Payment term: T/T,L/C,Western Union, PayPal
Delivery time: 1-5 days for small amout, 15-40 days for big amount

G210KPPB2* Agricultural Machinery Bearing

High Precision Lawn Mower Spindle Bearings G210KPPB2* Using Japanese Technology

more models:

Bearing type Style Trunnion A D Be Bi Dynamic load The static load

Weight

Lbs.
202KRR3 1 9/16” 0.5630 1.3780 0.4330 0.5120 2160 1000 0.12
14.300 35.000 11.000 13.000
204KPP2 3 11/16” 0.6950 1.8504 0.5510 0.8250 2900 1000 0.34
17.653 47.000 14.000 20.955
204KRR2 1 11/16” 0.6950 1.8504 0.5510 0.8250 2900 1410 0.32
17.653 47.000 14.000 20.955
204KRRB2 2 11/16” 0.6950 1.8504 0.5510 0.8250 2900 1410 0.32
17.653 47.000 14.000 20.955
205KPP2 3 7/8” 0.8760 2.0472 0.5910 1.0000 3150 1610 0.47
22.250 52.000 15.000 25.400
205KRR2 1 7/8” 0.8760 2.0472 0.5910 1.0000 3150 1610 0.44
22.250 52.000 15.000 25.400
205KPPB2 4 7/8” 0.8760 2.0472 0.5910 1.0000 3150 1610 0.47
22.250 52.000 15.000 25.400
205KRRB2 2 7/8” 0.8760 2.0472 0.5910 1.0000 3150 1610 0.44
22.250 52.000 15.000 25.400
206KPP4** 3 1” 1.0010 2.4409 0.6299 1.0600 4370 2320 0.47
25.425 62.000 16.000 26.924
G206KPPB4* 4 1” 1.0010 2.4409 0.7087 0.9450 4370 2320 0.47
25.425 62.000 18.000 24.000
206KRR6 1 1” 1.001047 2.4409 0.6300 0.9450 4370 2320 0.75
25.425 62.000 16.000 24.000
206KRRB6 2 1” 1.0010 2.4409 0.6300 0.9450 4370 2320 0.75
25.425 62.000 16.000 24.000
G207KPPB2* 4 1 1/8” 1.1260 2.8346 0.7480 1.4840 5770 3150 1.10
28.600 72.000 19.000 37.694
207KRRB9 2 1 1/8” 1.1260 2.8346 0.6690 1.4840 5770 3150 1.10
28.600 72.000 17.000 37.694
207KRRB12 2 1 1/8” 1.1260 2.8346 0.6690 0.9840 5770 3150 0.87
28.600 72.000 17.000 25.000
GW208PPB22* 4 1 1/4” 1.2510 3.1496 0.8270 1.4380 7340 3650 1.50
31.877 80.000 21.000 36.520
W208KRRB6 2 1 3/8” 1.3760 3.1496 0.8270 1.4380 7340 3650 1.31
34.950 80.000 21.000 36.520
W208PPB16 4 1 1/4” 1.2510 3.1496 0.7090 1.4380 7340 3650 1.45
31.775 80.000 18.000 36.520
W208PP21 3 1 1/4” 1.2510 3.1496 0.7090 1.4380 7340 3650 1.45
31.775 80.000 18.000 36.520
G209KPPB2* 4 1 1/2” 1.5010 3.3465 0.7480 1.1810 7350 4150 1.26
38.125 85.000 19.000 30.000
G5209KYYB2* 1 1/2” 1.5010 3.3465 1.1811 1.2992 9330 7580 1.27
38.125 85.000 30.000 33.000
209KRRB2 2 1 1/2” 1.5010 3.3465 0.7480 1.1810 7350 4150 1.27
38.125 85.000 19.000 30.000
210PPB20 3 1 1/4” 1.2550 3.5433 0.8661 1.4350 9070 5675 2.00
31.877 90.000 22.000 36.450
210PP20 3 1 1/4” 1.2550 3.5433 0.8661 1.4350 9070 5675 2.05
31.877 90.000 22.000 36.450
G210KPPB2* 4 1 1/4” 1.5010 3.5433 0.8661 1.1811 7780 4650
38.125 90.000 22.000 30.000
GC211-32-NLC* 3 1 3/4” 1.7510 3.9370 0.9840 2.2500 9740 5850 3.35
44.475 100.000 25.000 57.150

G210KPPB2* Agricultural Machinery Bearing Applications:

1. Plough disc connection bearing


2. Tillers, tractors, lawn harvesters


3. Balers and high-power harvesting machines


4. Such as green feed harvesters and combine harvesters

G210KPPB2* Agricultural Machinery Bearing Features:

1. Agricultural Machinery Bearing is simple in structure and easy to use.

2. The largest batch production and the widest range of applications.

3. Preferred Bearing Type for User Selection.

4. Output accounts for more than 70% of the total output of bearings.

G210KPPB2* Agricultural Machinery Bearing Advantages:

1. High operation precision;

2. Most rolling bearings can also be subjected to radial and axial loads, so the combined structure of bearings is simple;

3. For axle diameters of the same size, the width of rolling bearing is smaller than that of sliding bearing, which can make the axial structure of machinery compact;

4. Under ordinary conditions, the efficiency of rolling bearing is equal to that of hydrodynamic smooth bearing, but higher than that of inclusion smooth bearing.

Packing Method:

We have multiple packages for shielded radial ball bearing G210KPPB2*


1. Industrial package: plastic tube + paper carton + wooden pallet
craft paper + paper carton + wooden pallet


2. Individual package: individual paper box + paper carton + wooden pallet


3. As customer's demand

High Precision Lawn Mower Spindle Bearings G210KPPB2* Using Japanese Technology

Factory Photo:
High Precision Lawn Mower Spindle Bearings G210KPPB2* Using Japanese Technology

Quality In Everything We Do:

1.Suppliers quality: working only with the best


Our Supplier Quality and Development (SQD) division guarantees the flawless supply of highest quality raw materials and components.
Process quality: accurate, on-time production


All manufacturing facilities employ a Lean approach in manufacturing, involving every team member in a philosophy of continuous improvement. We have state-of-the-art production lines in all our plants. The integrated manufacturing process controls enable us to check 100% of the parts at every critical production step.


2.OEM-Quality Products


We deliver our products to leading global manufacturers of transmissions, axles, differentials, and fluid pumps amongst others; these customers use our products directly or integrate them into their Original Equipment.

FAQ:

Q: Are you a trading company or a factory?

A: We have both. We are trading company and we have own factory.

Q: What is the delivery time if we place an order?

A: For small orders, our delivery time is 3 days. If the amount is large, usually our delivery time is 7-20 days.

Q: What is your payment term?

A: We accept T/T, W/U, PayPal and L/C.

Q: Do you have a warranty on bearings?

Answer: In normal use, our bearing guarantee period is 1 year.

Contact us:
Email:xue@yekbearing.cn
WhatsApp/Skype:+8613863540916
