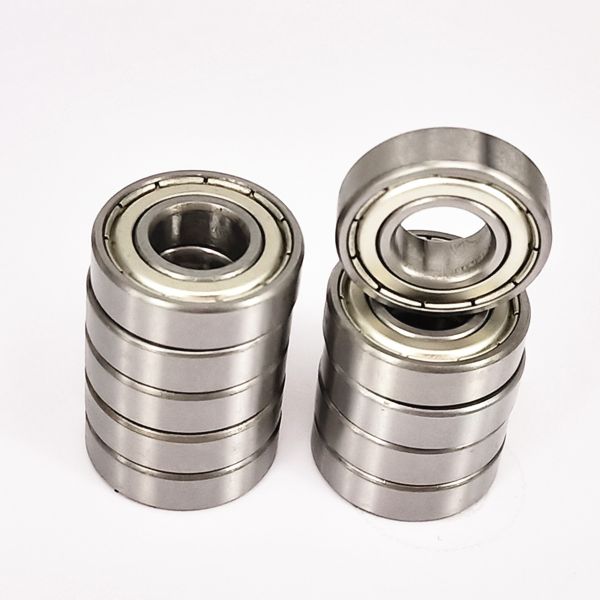

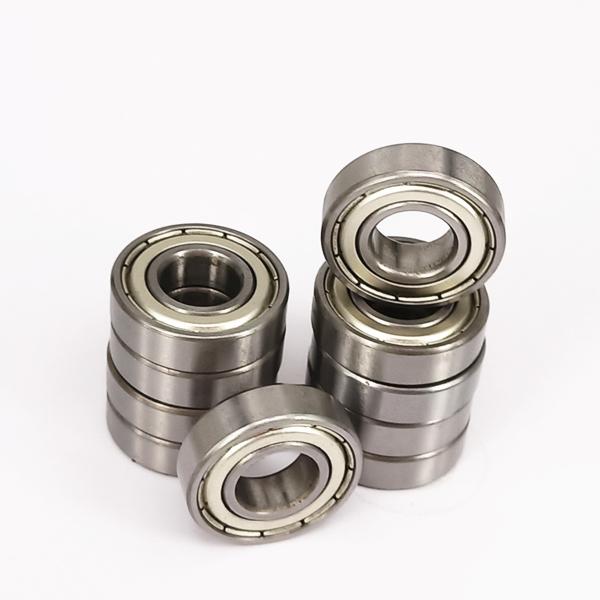

Steel Deep Groove Non Standard Ball Bearings R10 ZZ-2RS 15.875*34.925*7.14m
Steel Deep Groove Non Standard Ball Bearings R10 ZZ-2RS 15.875*34.925*7.14m
Steel Deep Groove Non Standard Ball Bearings R10 ZZ-2RS 15.875*34.925*7.14m
Steel Deep Groove Non Standard Ball Bearings R10 ZZ-2RS 15.875*34.925*7.14m
Steel Deep Groove Non Standard Ball Bearings R10 ZZ-2RS 15.875*34.925*7.14m
Steel Deep Groove Non Standard Ball Bearings R10 ZZ-2RS 15.875*34.925*7.14m
Specifications
Brand Name :
DEEG
Model Number :
R10-2RS
Certification :
ISO9001 , ISO14001
Place of Origin :
China
MOQ :
1PC
Price :
USD1/ Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000 Piece/Pieces per Month
Delivery Time :
5-10Days
Packaging Details :
Single Box(White Box/Color Box/Wooden Box),or per your requst.
Structure :
Deep Groove Ball Bearing
Size :
15.875*34.925*7.14mm
Material :
GCr15
Application :
Instruments and Apparatuses
Model :
R10 ZZ-2Rs Deep Groove Ball Bearings
Bearing Weight :
0.0292KG
Description

Bearing Steel Nonstandard Deep Groove Ball Bearings R10 ZZ-2RS 15.875*34.925*7.14m

20*52*15mm Bearing Features:

Inner Ring Diameter (bore): 15.875mm

Outer Ring Diameter:34.925mm

Width:7.14mm

Basic Dynamic Load Rating Cr:6.00kN

Basic Static Load Rating Cor:3.25kN

Bearing Weight:0.0292KG

6304 Ball Bearing Description:

Model Number R10 ZZ-2RS
Structure Deep groove ball bearing
Inside Diameter 15.875mm
Outside Diamete 34.925mm
Thickness 7.14mm
Seal Type Double Shielded, 2RS
Material GCR15
Precision Rating P6 P4
Number Of Row Single Row
Brand TOPE or other brands
Weight 0.0292kg
Payment term T/T,L/C, Western Union, PayPal
Delivery time 1-5 days for small amout, 15-40 days for big amount

R10-2RS Bearings

Steel Deep Groove Non Standard Ball Bearings R10 ZZ-2RS 15.875*34.925*7.14mSteel Deep Groove Non Standard Ball Bearings R10 ZZ-2RS 15.875*34.925*7.14m

Deep groove ball bearing


Deep groove ball bearings can be used for transmission, instrumentation, motors, household appliances, internal combustion engines, transport vehicles, agricultural machinery, construction machinery, construction machinery, roller skates, yo-yo

Relevant Types of Deep Groove Ball Bearings:

Bearing
NO.		 Boundary dimensions(mm) Load Rating(kN)

Weight

(kg)
d D B Cr Cor
R6 9.525 22.225 5.558 2.57 1.36 0.0096
R8 12.700 28.575 6.35 5.11 2.39 0.0169
R10 15.875 34.925 7.14 6.00 3.25 0.0292
R12 10.050 41.275 7.938 9.38 5.03 0.0447
R14 22.225 47.625 9.525 10.06 5.85 0.0748
R16 50.800 9.525 12.700 10.06 5.85 0.0808
R18 28.575 53.975 12.700 13.23 8.30 0.0847
R20 31.750 57.150 9.525 13.23 8.30 0.0903
R22 34.925 63.500 11.112 16.21 10.42 0.1332
R24 38.100 66.675 11.112 17.03 11.70 0.1384

R10 ZZ-2RS20*52*15mm Deep Groove Ball Bearing Application:

1.Gearboxes,Instruments,Motors

2.Household Appliances,Internal Combustion Engines

3.Traffic Vehicles,Agricultural Machinery,construction machinery,oller skates

Working principle:

1. Deep groove ball bearing can bear radial load, radial load and axial load.

2. When it only bears radial load, the contact Angle is zero. When the deep groove ball bearing has a large radial clearance.

3. It has the performance of angular contact bearing and can bear a large axial load.

R10 Deep Groove Ball Bearings Features:

1. Deep groove ball bearing is simple in structure and easy to use.

2. The largest batch production and the widest range of applications.

3. Preferred Bearing Type for User Selection.

4. Output accounts for more than 70% of the total output of bearings.

Steel Deep Groove Non Standard Ball Bearings R10 ZZ-2RS 15.875*34.925*7.14m
