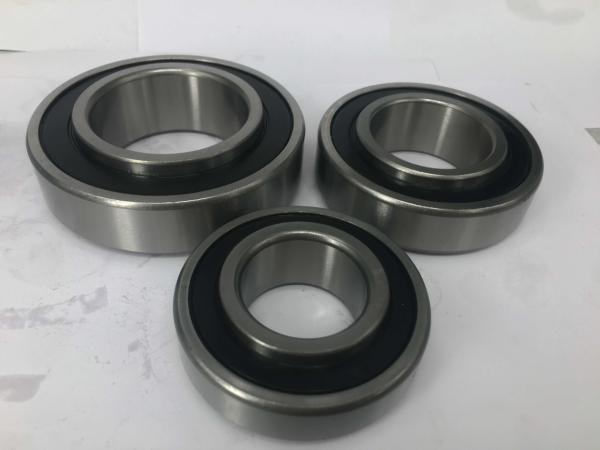

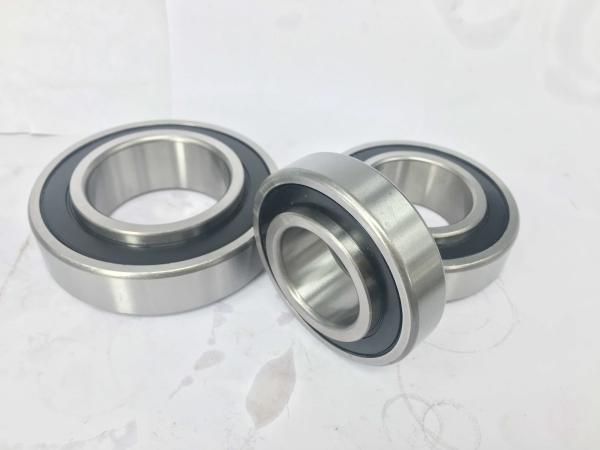

Low Power Consumption Non Standard Ball Bearings Single Row 88602 15*42*17mm
Low Power Consumption Non Standard Ball Bearings Single Row 88602 15*42*17mm
Low Power Consumption Non Standard Ball Bearings Single Row 88602 15*42*17mm
Low Power Consumption Non Standard Ball Bearings Single Row 88602 15*42*17mm
Specifications
Brand Name :
DEEG
Model Number :
88602
Certification :
ISO9001 , ISO14001
Place of Origin :
China
MOQ :
1PC
Price :
USDN1/ Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000 Piece/Pieces per Month
Delivery Time :
5-10Days
Packaging Details :
Single Box(White Box/Color Box/Wooden Box),or per your requst.
Structure :
Deep Grove Ball Bearings
Material :
GCR15
Rolling Element :
Balls
Bearings Weight :
0.095KG
Model :
88602
Size :
15*42*17mm
Number Of Row :
Single Row
Description

Low Power Consumption Nonstandard Deep Groove Ball Bearings 88602 15*42*17mm

88602 Nonstandard Deep Groove Ball Bearings

15*42*17mm Bearing Features:

Inner Ring Diameter (bore):0.590 Inch

Outer Ring Diameter:1.653 Inch

Width:0.669 Inch

Basic Dynamic Load Rating Cr: 11.44kN

Basic Static Load Rating Cor:5.43kN

Bearings Weight:0.095KG

Deep groove ball bearing


Deep groove ball bearings can be used for transmission, instrumentation, motors, household appliances, internal combustion engines, transport vehicles, agricultural machinery, construction machinery, construction machinery, roller skates, yo-yo

88602 Ball Bearing Description:

Model Number 88602
Structure: Deep groove ball bearing
Inside Diameter:

19/32
Outside Diameter: 1 21/32
Thickness: 43/64
Seal Type: Double Shielded, 2RS
Material: Chrome steel, Gcr15
Precision Rating: P0-P5
Brand: TOPE or other brands
Payment term: T/T,L/C,Western Union, PayPal
Delivery time: 1-5 days for small amout, 15-40 days for big amount

88602 Ball Bearing

Low Power Consumption Non Standard Ball Bearings Single Row 88602 15*42*17mm

more models:

Bearing
NO.		 Boundary dimensions(mm) Load Rating(kN)

Weight

(kg)
d D B Cr Cor
88500 10 30 16.041 5.11 2.39 0.04
88011 11 32 15.400 6.82 3.06 0.04
88501 12 32 15.400 6.82 3.06 0.04
88013 13 32 15.400 6.82 3.06 0.04
88014 14 35 14.399 7.64 3.72 0.05
88502 15 35 14.399 7.64 3.72 0.054
88016 16 35 14.399 7.64 3.72 0.052
88602 15 42 17 11.44 5.43 0.095
88503 17 40 16.601 9.57 4.97 0.075
88603 17 47 18 13.58 6.58 0.127
88504 20 47 17.750 12.84 6.65 0.118
88604 20 52 23 15.94 7.88 0.18
88505 25 52 16.749 14.02 7.88 0.138
88605 25 62 25 22.38 11.49 0.295
88026 26 52 16.749 14.02 7.88 0.134
88506 30 62 24 19.46 11.31 0.259
88606 30 72 27 27.00 15.19 0.440
88507 35 72 25 25.67 15.30 0.347
88607 35 80 29 33.36 19.21 0.545
88508 40 80 27 29.52 18.14 0.536
88608 40 90 31 40.75 24.01 0.749
88509 45 85 27 31.67 20.68 0.554
88609 45 100 35 52.66 31.83 0.994
88510 50 90 30 35.07 23.18 0.636
88511 55 100 31 43.38 29.22 0.809

88602 Nonstandard Deep Groove Ball Bearings Applications:

1. Gearboxes,Instruments,Motors

2. Household Appliances,Internal Combustion Engines

3. Traffic Vehicles,Agricultural Machinery,construction machinery,oller skates

Shipping Methods:

1. For small amount (GW<100KGS), we can send you by express, such as DHL, Fedex, TNT etc


2. For GW between 100KGS to 500KGS, we can send you by sea shipping or air shipping


3. For large amount (GW > 500KGS), we can send you by sea

Low Power Consumption Non Standard Ball Bearings Single Row 88602 15*42*17mm

88016 Nonstandard Deep Groove Ball Bearings Advantages:

1. High operation precision;

2. Most rolling bearings can also be subjected to radial and axial loads, so the combined structure of bearings is simple;

3. For axle diameters of the same size, the width of rolling bearing is smaller than that of sliding bearing, which can make the axial structure of machinery compact;

4. Under ordinary conditions, the efficiency of rolling bearing is equal to that of hydrodynamic smooth bearing, but higher than that of inclusion smooth bearing.

Factory Photos:

Low Power Consumption Non Standard Ball Bearings Single Row 88602 15*42*17mm

How to place an order:

1. Send us your bearing inquiry, including your bearing models, your quantity. If you have brand requirement, please tell us which brand do you need as well.

2. We will quote bearing price for you. Moreover, According to the quantity of goods, we will give you different options of transportation.


3. If you agree with our price, we will make proforma invoice for payment.


4. After payment is done, we will start to prepare bearings and arrange shipment.

FAQ:

Q1: Are you trading company or manufacturer ?


A: We are factory and professional manufactuer of bearings.

Q2: Can I get a sample to check out the quality ?


A: Sure, free samples are available for stock products if you can payfor the shipping cost.

Q3: Can you do OEM to print my logo/brand on the products ?


A: Yes, we can print your logo/brand on the products, you just need to send us your logo/brand files, we will show you how it looks like before shipping out.

Q4: How long is your delivery time ?

A: Generally we have regular stocks for standard bearings that can be shippedin 2 days after your payment. It will take 15-35 days for new production order, which depends on your order quantity.
