Single Packaging Deep Groove Transmission Ball Bearing 88603 17*47*18mm
Single Packaging Deep Groove Transmission Ball Bearing 88603 17*47*18mm
Single Packaging Deep Groove Transmission Ball Bearing 88603 17*47*18mm
Single Packaging Deep Groove Transmission Ball Bearing 88603 17*47*18mm
Specifications
Brand Name :
DEEG
Model Number :
88603
Certification :
ISO9001 , ISO14001
Place of Origin :
China
MOQ :
1PC
Price :
USDN1/ Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000 Piece/Pieces per Month
Delivery Time :
5-10Days
Packaging Details :
Single Box(White Box/Color Box/Wooden Box),or per your requst.
Structure :
Deep Grove Ball Bearings
Material :
GCR15
Rolling Element :
Balls
Inner diameter :
17mm
Model :
88603
Outer diameter :
47mm
Width :
18mm
Description

Single Packaging Nonstandard Deep Groove Ball Bearings 88603 17*47*18mm For Motor

88603 Nonstandard Deep Groove Ball Bearings

17*47*18mm Bearing Features:

Inner Ring Diameter (bore):0.669 Inch

Outer Ring Diameter:1.850 Inch

Width:0.708 Inch

Basic Dynamic Load Rating Cr: 13.58kN

Basic Static Load Rating Cor:6.58kN

Bearings Weight:0.127KG

88603 Ball Bearing Description:

Model Number 88603
Structure: Deep groove ball bearing
Inside Diameter:

17mm
Outside Diameter: 47mm
Thickness: 18mm
Seal Type: Double Shielded, 2RS
Material: Chrome steel, Gcr15
Precision Rating: P0-P5
Brand: TOPE or other brands
Payment term: T/T,L/C,Western Union, PayPal
Delivery time: 1-5 days for small amout, 15-40 days for big amount

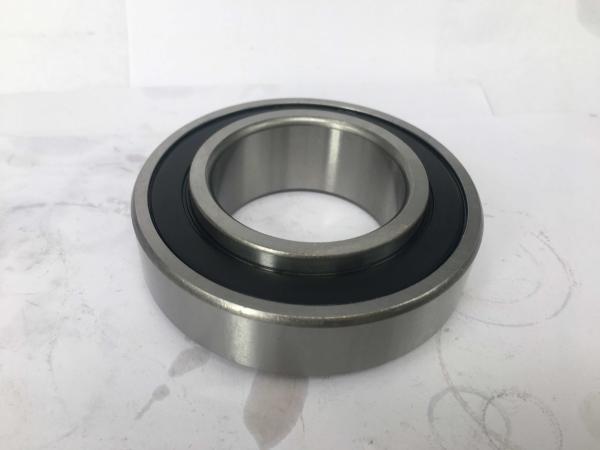

88603 Ball Bearing

Single Packaging Deep Groove Transmission Ball Bearing 88603 17*47*18mm

more models:

Bearing
NO.		 Boundary dimensions(mm) Load Rating(kN)

Weight

(kg)
d D B Cr Cor
88500 10 30 16.041 5.11 2.39 0.04
88011 11 32 15.400 6.82 3.06 0.04
88501 12 32 15.400 6.82 3.06 0.04
88013 13 32 15.400 6.82 3.06 0.04
88014 14 35 14.399 7.64 3.72 0.05
88502 15 35 14.399 7.64 3.72 0.054
88016 16 35 14.399 7.64 3.72 0.052
88602 15 42 17 11.44 5.43 0.095
88503 17 40 16.601 9.57 4.97 0.075
88603 17 47 18 13.58 6.58 0.127
88504 20 47 17.750 12.84 6.65 0.118
88604 20 52 23 15.94 7.88 0.18
88505 25 52 16.749 14.02 7.88 0.138
88605 25 62 25 22.38 11.49 0.295
88026 26 52 16.749 14.02 7.88 0.134
88506 30 62 24 19.46 11.31 0.259
88606 30 72 27 27.00 15.19 0.440
88507 35 72 25 25.67 15.30 0.347
88607 35 80 29 33.36 19.21 0.545
88508 40 80 27 29.52 18.14 0.536
88608 40 90 31 40.75 24.01 0.749
88509 45 85 27 31.67 20.68 0.554
88609 45 100 35 52.66 31.83 0.994
88510 50 90 30 35.07 23.18 0.636
88511 55 100 31 43.38 29.22 0.809

88603 Nonstandard Deep Groove Ball Bearings :


Deep groove ball bearings can be used for transmission, instrumentation, motors, household appliances, internal combustion engines, transport vehicles, agricultural machinery, construction machinery, construction machinery, roller skates, yo-yo

88603 Nonstandard Deep Groove Ball Bearings Features:

1. Nonstandard deep groove ball bearing is simple in structure and easy to use.

2. The largest batch production and the widest range of applications.

3. Preferred Bearing Type for User Selection.

4. Output accounts for more than 70% of the total output of bearings.

Packing Methods:

We have multiple packages for shielded radial ball bearing 88603


1. Industrial package: plastic tube + paper carton + wooden pallet


craft paper + paper carton + wooden pallet


2. Individual package: individual paper box + paper carton + wooden pallet


3. As customer's demand

Factory Photos:

Single Packaging Deep Groove Transmission Ball Bearing 88603 17*47*18mm

How to place an order:

1. Send us your bearing inquiry, including your bearing models, your quantity. If you have brand requirement, please tell us which brand do you need as well.

2. We will quote bearing price for you. Moreover, According to the quantity of goods, we will give you different options of transportation.


3. If you agree with our price, we will make proforma invoice for payment.


4. After payment is done, we will start to prepare bearings and arrange shipment.

FAQ:

A: We have both. We are trading company and we have own factory.

Q: What is the delivery time if we place an order?

A: For small orders, our delivery time is 3 days. If the amount is large, usually our delivery time is 7-20 days.

Q: What is your payment term?

A: We accept T/T, W/U, PayPal and L/C.

Q: Do you have a warranty on bearings?

Answer: In normal use, our bearing guarantee period is 1 year.
