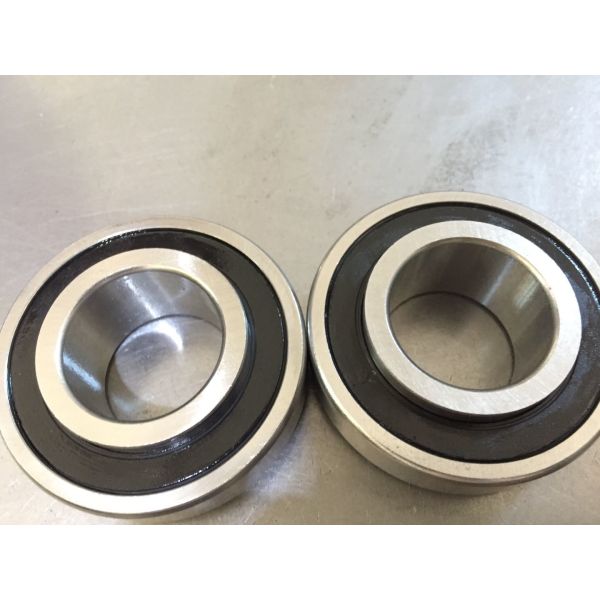

Anti Corrosive 88501 Non Standard Ball Bearings NSK 12mm Inner Diameter
Anti Corrosive 88501 Non Standard Ball Bearings NSK 12mm Inner Diameter
Anti Corrosive 88501 Non Standard Ball Bearings NSK 12mm Inner Diameter
Anti Corrosive 88501 Non Standard Ball Bearings NSK 12mm Inner Diameter
Specifications
Brand Name :
DEEG
Model Number :
88501
Certification :
ISO9001 , ISO14001
Place of Origin :
China
MOQ :
1PC
Price :
USDN1/ Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000 Piece/Pieces per Month
Delivery Time :
5-10Days
Packaging Details :
Single Box(White Box/Color Box/Wooden Box),or per your requst.
Structure :
Deep Grove Ball Bearings
Material :
GCR15
Seals Type :
Rubber Seals
Bearings Weight :
0.04KG
Precision Degree :
P6,P5,P4
Inner diameter :
12mm
Outer diameter :
32mm
Description

88501 12*32*15.400mm Nonstandard Deep Groove Ball Bearings NSK Using Japanese Technology

88501 Nonstandard Deep Groove Ball Bearings

12*32*15.400mm Bearing Features:

Inner Ring Diameter (bore):0.472 Inch

Outer Ring Diameter:1.259mm Inch

Width:0.606 Inch

Basic Dynamic Load Rating Cr: 6.82kN

Basic Static Load Rating Cor:3.06kN

Bearings Weight:0.04KG

88501 Ball Bearing Description:

Model Number 88501
Structure: Deep groove ball bearing
Inside Diameter:

15/32
Outside Diameter: 1 17/64
Thickness: 39/64
Seal Type: Double Shielded, 2RS
Material: Chrome steel, Gcr15
Precision Rating: P0-P5
Brand: TOPE or other brands
Payment term: T/T,L/C,Western Union, PayPal
Delivery time: 1-5 days for small amout, 15-40 days for big amount

88501 Ball Bearing

Anti Corrosive 88501 Non Standard Ball Bearings NSK 12mm Inner Diameter

more models:

Bearing
NO.		 Boundary dimensions(mm) Load Rating(kN)

Weight

(kg)
d D B Cr Cor
88500 10 30 16.041 5.11 2.39 0.04
88011 11 32 15.400 6.82 3.06 0.04
88501 12 32 15.400 6.82 3.06 0.04
88013 13 32 15.400 6.82 3.06 0.04
88014 14 35 14.399 7.64 3.72 0.05
88502 15 35 14.399 7.64 3.72 0.054
88016 16 35 14.399 7.64 3.72 0.052
88602 15 42 17 11.44 5.43 0.095
88503 17 40 16.601 9.57 4.97 0.075
88603 17 47 18 13.58 6.58 0.127
88504 20 47 17.750 12.84 6.65 0.118
88604 20 52 23 15.94 7.88 0.18
88505 25 52 16.749 14.02 7.88 0.138
88605 25 62 25 22.38 11.49 0.295
88026 26 52 16.749 14.02 7.88 0.134
88506 30 62 24 19.46 11.31 0.259
88606 30 72 27 27.00 15.19 0.440
88507 35 72 25 25.67 15.30 0.347
88607 35 80 29 33.36 19.21 0.545
88508 40 80 27 29.52 18.14 0.536
88608 40 90 31 40.75 24.01 0.749
88509 45 85 27 31.67 20.68 0.554
88609 45 100 35 52.66 31.83 0.994
88510 50 90 30 35.07 23.18 0.636
88511 55 100 31 43.38 29.22 0.809

88501 Nonstandard Deep Groove Ball Bearings Working Features:

1. Nonstandard deep groove ball bearing is simple in structure and easy to use.

2. The largest batch production and the widest range of applications.

3. Preferred Bearing Type for User Selection.

4. Output accounts for more than 70% of the total output of bearings.

88501 Nonstandard Deep Groove Ball Bearings Working Applications:

1. Gearboxes,Instruments,Motors

2. Household Appliances,Internal Combustion Engines

3. Traffic Vehicles,Agricultural Machinery,construction machinery,oller skates

Packing Methods:

We have multiple packages for shielded radial ball bearing 88011


1. Industrial package: plastic tube + paper carton + wooden pallet
craft paper + paper carton + wooden pallet


2. Individual package: individual paper box + paper carton + wooden pallet


3. As customer's demand

Anti Corrosive 88501 Non Standard Ball Bearings NSK 12mm Inner Diameter

88011 Nonstandard Deep Groove Ball Bearings Advantages:

1. Improved bearing life reliability.


2. Reduced friction, vibration and noise during operation.


3. 100% vibration/noise testing for fractional HP to high HP electrical applications.


4. Globally interchangeable for use in existing applications.


5. Best seal solutions extend equipment life in contaminated applications.

Factory Photos:

Anti Corrosive 88501 Non Standard Ball Bearings NSK 12mm Inner Diameter

Quality In Everything We Do:

Suppliers quality: working only with the best


Our Supplier Quality and Development (SQD) division guarantees the flawless supply of highest quality raw materials and components.
Process quality: accurate, on-time production


All manufacturing facilities employ a Lean approach in manufacturing, involving every team member in a philosophy of continuous improvement. We have state-of-the-art production lines in all our plants. The integrated manufacturing process controls enable us to check 100% of the parts at every critical production step.


OEM-Quality Products


We deliver our products to leading global manufacturers of transmissions, axles, differentials, and fluid pumps amongst others; these customers use our products directly or integrate them into their Original Equipment.

FAQ:


Q: Are you a trading company or a factory?

A: We have both. We are trading company and we have own factory.

Q: What is the delivery time if we place an order?

A: For small orders, our delivery time is 3 days. If the amount is large, usually our delivery time is 7-20 days.

Q: What is your payment term?

A: We accept T/T, W/U, PayPal and L/C.

Q: Do you have a warranty on bearings?

Answer: In normal use, our bearing guarantee period is 1 year.
