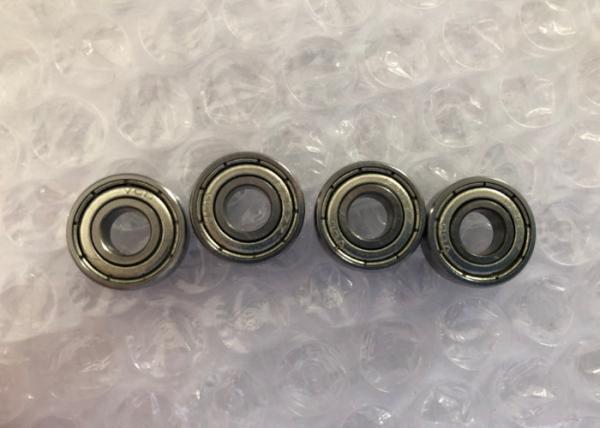

P6 / Z3V3 Class Deep Groove Textile Bearing , Industrial Ball Bearings
P6 / Z3V3 Class Deep Groove Textile Bearing , Industrial Ball Bearings
Specifications
Brand Name :
VCD
Model Number :
6203 2RS//6204 2RS//6205 2RS
Certification :
ISO9001:2000
Place of Origin :
Ningbo,China
MOQ :
5000 pcs
Supply Ability :
100000 pcs per month
Delivery Time :
30 days according to purchasing quantity
Packaging Details :
Industrial plastic tube packing
Steel Material :
Gcr15 Chrome Steels
Rubber Seals Materials :
NBR/ACM/FKM+SPCC
Cages :
Steel and Plastic
Balls :
G10 and G5 class
Quality class :
P6 and Z3V3 class
standard :
ISO9001:2000
Description

Description

Deep groove ball bearing is a kind of the most common rolling bearing. The basic type of deep groove ball bearing is composed of an outer ring, a ring, a group of steel ball and a group of retainers. Deep groove ball bearing has a single row and double row two types, and also has sealed bearing and open bearing, open refers to the bearing without sealing structure,sealing type deep groove ball into the dust seal and oil seal. Dust seal cover material for steel plate stamping, plays only a simple prevent dust from entering the bearing raceway. Oil proof type contact tyTextile Machine Engine Thrust Bearing Alkali Resistant ISO Certificationpe oil seal, can effectively prevent bearing grease inside the spillover.

Quick Detail:

Product name: Deep groove ball bearing
Model number: 6008,6009,6010,6011,6012,6013,6014,6015/N/Zz/2RS
Precision rating:P0 P6 P5
Clearance:C0 C1 C2 C3
Cage:Stamping steel,Brass,Nylon,Ceramic
Sealed type:RS,2RS,Z,2Z
Vibration:Z1V1,Z2V2,Z3V3
Material:Gcr15,Stainless steel,Carton steel,Plastic,Ceramic,chrome steel

2. Vibration tolerance date of single bearing Tolerance um/s

Bore diancter V V1 V2 V3 V4
MM L M H L M H L M H L M H L M H
3,4 80 44 44 60 35 32 48 26 22 31 16 15 28 10 10
5,6 110 72 60 74 48 40 58 36 30 35 21 18 32 11 11
7,8,9 130 96 80 92 66 54 72 48 40 44 28 24 38 12 12
10,12 160 120 100 120 80 70 90 60 50 55 35 30 45 14 15
15 210 150 120 150 100 85 110 78 60 65 46 35 52 18 18
17 210 150 120 150 100 85 110 78 60 65 46 35 52 25 25
20 260 190 150 180 125 100 130 100 75 80 60 45 60 25 25
22,25 260 190 150 180 125 100 130 100 75 80 60 45 60 30 32
28 260 190 150 180 125 100 130 100 75 80 60 45 60 35 40
30,32 300 240 190 200 150 130 150 120 100 90 75 60 70 35 40
35 300 240 190 200 150 130 150 120 100 90 75 60 70 42 45
40 360 300 260 240 180 160 180 150 130 110 90 80 82 50 50
45 360 300 260 240 180 160 180 150 130 110 90 80 82 60 60
50 420 320 320 280 200 200 210 160 160 125 100 100 95 70 70

3.Materials of Rubber Seals

Name Code Characteristics Using Temperature

NBR

Acrylonitrile-butadiene rubber

 Oil resistance,heat resistance,resistance to wear -40~120

FKM

Fluorine rubber

 Hear resistant,acid and alkali resistant and chemicals, oil resistance preferred -20~200

VMQ

Silicone rubber

 Heat and cold resistance, good compression deformation is small, but the mechanical strength is not good -60~230

ACM

Polypropylene acid ester rubber

 Heat resistance, oil resistance better than NBR, but resistance to water and alkali is not strong -20~150
