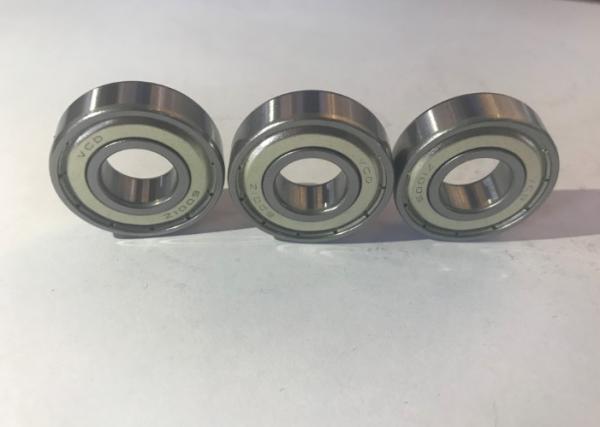

Steel Cages Replacement Electric Motor Bearings Durable For Transmission Machinery
Steel Cages Replacement Electric Motor Bearings Durable For Transmission Machinery
Specifications
Brand Name :
VCD
Model Number :
6000~6005,6300~6305
Certification :
ISO9001:2000
Place of Origin :
Cixi,Ningbo,Zhejiang,China
MOQ :
5000
Delivery Time :
30 working days
Packaging Details :
Industrial plastic tube packing
Tolerance :
ABEC-3
Noise Class :
Z1V1,Z2V2 and Z3V3
Steel Balls Class :
G10 or G5
Cages :
Steel Made
Rubber Seals :
NBR or FKM or ACM
Description

Production process:

1. Abrasive machining of steel pipe;

2. The inner & outer ring grinding;

3. The precision work of inner ring & outer ring

4. Bearing cleaning;

5. The Assembly of inner ring , outer ring , bearing balls & cage, etc.

6. Bearing inspection( precison, noise & vibration levels).

7. Packing: in plastic tube, then in carton & pallet or in color single box, then in carton & pallet, or as the customers' request.

2. The size of bearing clearance directly related to the use of noise, vibration, normal temperature, service life and the assembly of machinery motion effect. Therefore, it is very important that we choose the suitable assembly bearing clearance. We divided from small to big according to radial clearance range into C2, C0, C3, C4 and C5. Specific reference see the chart:

Bore C2 C0 C3 C4 C5
Over Including
mm Inch mm Inch Min Max Min Max Min Max Min Max Min. Max
2.5 0.0984 10 0.3937 0 7 2 13 8 23 14 29 20 37
10 0.3937 18 0.7087 0 9 3 18 11 25 18 33 25 45
18 0.7887 24 0.9449 0 10 5 20 13 28 20 36 28 48
24 0.9449 30 1.1811 1 11 5 20 13 28 23 41 30 53
30 1.1811 40 1.5748 1 11 6 20 15 33 28 46 40 64
40 1.5748 50 1.9685 1 11 6 23 18 36 30 51 45 73
50 1.9685 65 2.5591 1 15 8 28 23 43 38 61 55 90

3. Also can consult the table below choose bearing clearance

The usage situation Use examples Choose clearance
Strict control noise, vibration installation precision, high position Instrument and equipmentRoll neck calender Low noise and small motor C2,C0
General load, speed, working temperature is not high Transmission machinery, reducer and other general machinery C0
High temperature, high speed, high requirements for service life Automobile generator and engine C3
Using high temperature environment, should not be the occasion of heat Drying machine, paper making machinery, and so on C3,C4
High temperature, high speed, and large impact load

Vibrating screen, speed gear

 C4
Inner and outer ring take the surplus interference, large volume, high temperature, heat dissipation Vibration type pressure road, machine car rear wheel C5
