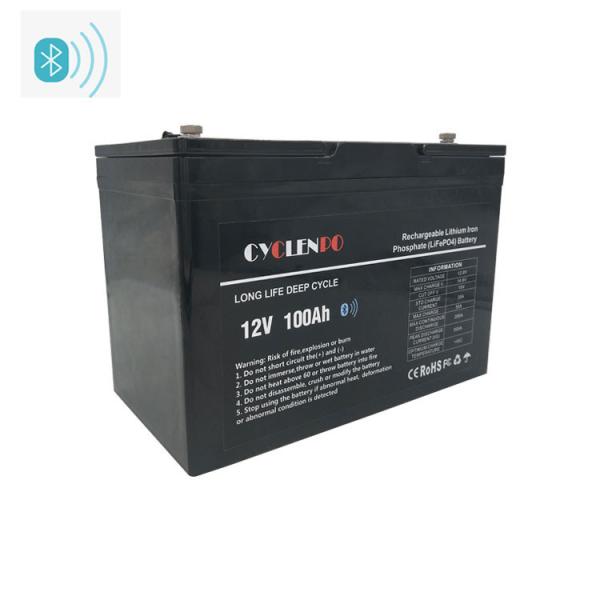

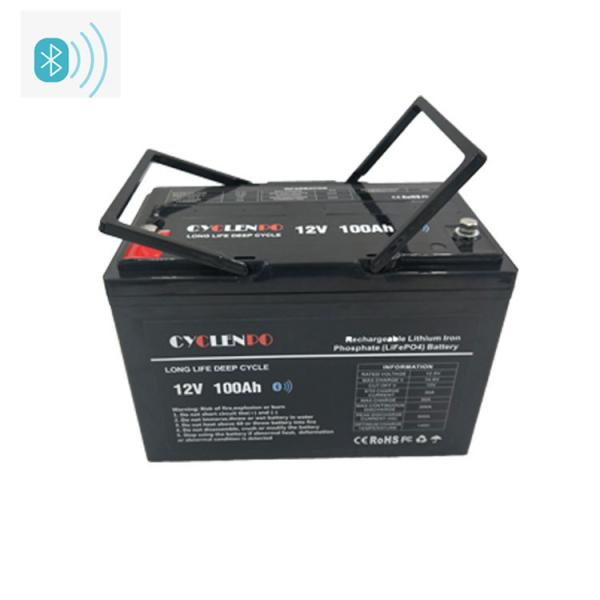

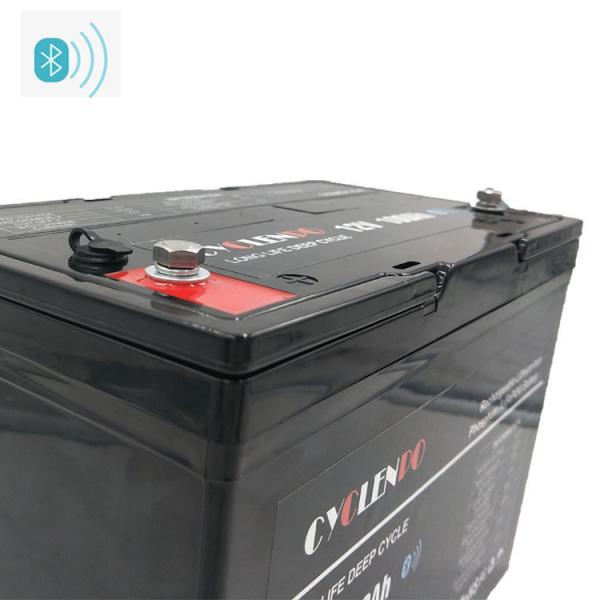

Small App controlled 12v 100ah Lifepo4 Bluetooth Lithium Battery Pack for RV
Compared with lead acid battery,lifepo4 battery has higher energy density,longer life,lighter weight. It is
cost effective in long term consideration, gradually replacing lead-acid batteries.
It is widely used for RV/solar system/yacht/golf carts storage and car etc.
This 12v 100ah lifepo4 battery pack:
1. Small size case
2. Up to 200A CONTINUOUS DISCHARGE CURRENT.
3. With Bluetooth APP.
4. Can read the battery status from computer.
NO | Item | General Parameter | Remark |
1 | Model | 3.2Ⅴ 100AH | Single |
2 | Casing material for single cell | Nickel plated steel | |
3 | Standard capacity(0.2C3A) | 100Ah | |
4 | Mininum Capacity(1C3A) | 100Ah | |
5 | Rated voltage | 12.8V | 3.20V(Work voltage:3.20V) |
6 | Max.Charge voltage | 14.6V | 3.65V(Single Ave. charge Voltage) |
7 | Cut-off voltage | 10V | 2.50V(Single Ave. Discharge Voltage) |
8 | Standard charge current | 100A | 1C3A |
9 | charging Time | 5.5h | 0.2C3A |
10 | Max Continuous discharge current | 100A | 1C3A |
11 | Peak discharge current | 200A | 2C 10seconds |
12 | Battery dimension | 328±1*171±1*215±1mm | |
13 | (Approx.)Total weight(Approx.) | About 12kg | |
14 | (Max, at 1000Hz.)Impedance(Max, at 1000Hz.) | ≤ 45mΩ | |
15 | (CC/CV) Charge method (CC/CV) | Standard | 0℃~45℃ |
discharge | -20℃~45℃ | ||
storage | -20℃~45℃ |
Why Choose US
1. Provide OEM&ODM services with various designs.
2. Complete production lines, reliable quality, factory direct price.
3. 100% test before shipping, fast delivery with solid package.
4. Timely and professional pre-sales service and after-sales service.
FAQ
1. Where can I get the price?
Please Click Contact Now or Request a Quote. We will offer you the best quote in 24 hours after we get
the product specifications such as voltage capacity application etc.
2. How can you guarantee your quality?
Normally we will send you a sample to confirm everything first. We will make the big order exactly
the same as you request. And we offer 1 year warranty for small battery packs, 2-3 years for battery
packs of large capacity.
3. What about the lead time for mass production?
It depends on your order quantity.Normally 2-5 days if we have sample in stock, 5-10 days for
newly produced samples.10-20 day for big order.
4. What shipping method can I choose? How about the shipping time?
By Express (3-7 working days), suitable for urgent time or small quantity.
By Sea (15-30 days), it suitable for mass production.
By Air (4-7 days), from airport to airport.
5. What is your term for payment?
We accept T/T,L/C,Paypal, Western Union,Money Gram,Ali Express,Cash,etc.
