Anti Extrusion 3.2 Volt Rechargeable Battery 14500 High Temperature Performance
Anti Extrusion 3.2 Volt Rechargeable Battery 14500 High Temperature Performance
Anti Extrusion 3.2 Volt Rechargeable Battery 14500 High Temperature Performance
Anti Extrusion 3.2 Volt Rechargeable Battery 14500 High Temperature Performance
Specifications
Brand Name :
Cyclenpo
Model Number :
LFP-14500 3.2v600mah
Certification :
CE ROHS UN38.3 MSDS
Place of Origin :
Shenzhen,China
MOQ :
50 pieces
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
150000 pieces per month
Delivery Time :
1~2weeks for samples; 3~5weeks for mass production
Packaging Details :
One battery in one carton box,filled with epe foam at the bottom and on the top.
Nominal Capacity :
600mah
Nominal Voltage :
3.2v
Cycle Life :
>2000 times
Warranty :
1 years
Weight :
40g
Components :
PVC
Description

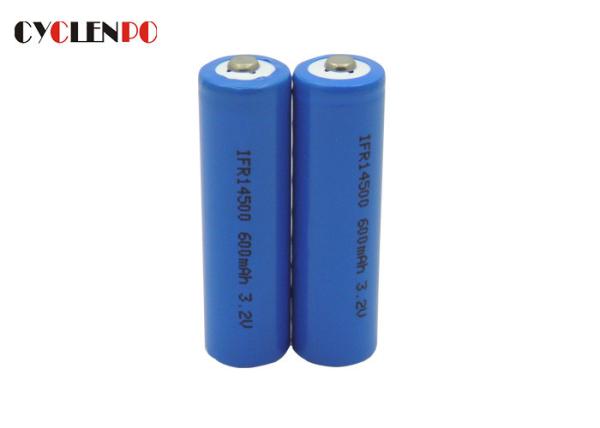

Rechargeable 14500 3.2v 600mah Lithium Iron Phosphate Battery Cell

No Item Specifications

1.1

 Typical Capcity 600mAh @ 0.2C Dsicharge
Minimum capcity 550mAh @ 0.2C Discharge

1.2

 Normal capcity 3.2V

1.3

 Standard Charge CC/CV,0.5C5A,3.65V

1.4

 Standard Discharge CC,3C5A, 2.00V

1.5

 End-of-charge Voltage 3.650V±0.1V

1.6

 End-of-charge Current 0.5C C5A (At CV mode)

1.7

 End-of-discharge Voltage 2.0V

1.8

 Charging Time 3.0 hours (standard charge)

1.9

 Quick Charge Current 600mA (0.2C5rate) 1C

1.10

 Quick Discharge Current 1800mA (0.2C 5 rate) 2C

1.11

 Max Discharge Current 1800mA (3.0C5rate) 3C

1.12

 Initial Impedance Max :260mΩ

1.13

 Weight Approx :35 ±2 g

1.14

 Operating temperature Charging: 0℃~45℃
Discharging:-20℃~60℃

1.15

 Storage temperature -5 ℃-35℃

1.16

 Storage Humidity ≤75 % RH

1.17

 Apprearance Without scratch, distortion, contamination and leakage

1.18

 Standard environmental condition

Temperature: 25±2℃
Humidity : 45-75%RH

Atmospheric Pressure : 86-106 KPA

1.19

 Temperature Dependence of Discharge Capacity
@ 0.2C Discharge (0.2C )

Charge temperature

 Discharge temperature

25℃

 -10℃ 0℃ 15℃ 25℃ 40℃

Relative temperature

 50% 80% 90% 100% 100%

About Lifepo4 Material

1) Environmental friendly.
2) High density of energy.
3) High capacity.
4) Fast charging.
5) Safety in use.
6) Long cycle life, chargeable up to 2000 times.
7) No memory effect.
8) Doesn’t contain Mercury, No fire, No explosion, No leakage.
9) High temperature resistance.
10) Stable discharge platform , it is can support large current and high power to charging and discharging.

Safe Characteristic

No

 Item Test Methods and Condition Criteria

3.1

 Over charge testing

At 23±5℃, charging cells with constant current 3C to
voltage 10.0V, then with constant voltage 10.0V till current
decline to 0. Stop test till cells temperature 10℃ lower than
max temperature.

 No somke or fire

3.2

 Over discharge testing At 23±5℃, According to the requirements of standard
charge, the cells will be discharge to cut-off voltage, then
connect with external load of 30 ohm for 24 hours		 No fire ,and no smoke ,no leakage

3.3

 Short-circuit testing At 23±5℃, After standard charging, connect cells
anode and cathode by wire which impedance less than 50m
Ω, keep 6h.		 No smoke or fire

Why Choose US

1. Provide OEM&ODM services with various designs.
2. Complete production lines, reliable quality, factory direct price.
3. 100% test before shipping, fast delivery with solid package.
4. Timely and professional pre-sales service and after-sales service.
