Lighting Lifepo4 Lithium Battery Long Cycle With Overcharge Protection Large Capacity
Lighting Lifepo4 Lithium Battery Long Cycle With Overcharge Protection Large Capacity
Lighting Lifepo4 Lithium Battery Long Cycle With Overcharge Protection Large Capacity
Lighting Lifepo4 Lithium Battery Long Cycle With Overcharge Protection Large Capacity
Lighting Lifepo4 Lithium Battery Long Cycle With Overcharge Protection Large Capacity
Lighting Lifepo4 Lithium Battery Long Cycle With Overcharge Protection Large Capacity
Specifications
Brand Name :
Cyclenpo
Model Number :
LFP-12v30ah
Certification :
CE MSDS UN38.3 ROHS
Place of Origin :
Shenzhen,China
MOQ :
30 pieces
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
1~2weeks for samples; 3~4weeks for mass production
Packaging Details :
One battery in one carton box,filled with epe foam at the bottom and on the top.
Standard Charge :
CC/CV,0.2C 5 A,14.6V
Standard Discharge :
CC,0.2C 5 A, 10.0V
Max discharge current :
60A
Cycle Times :
>3000 times
Color :
Grey or customized
OEM ODM :
Available
Description

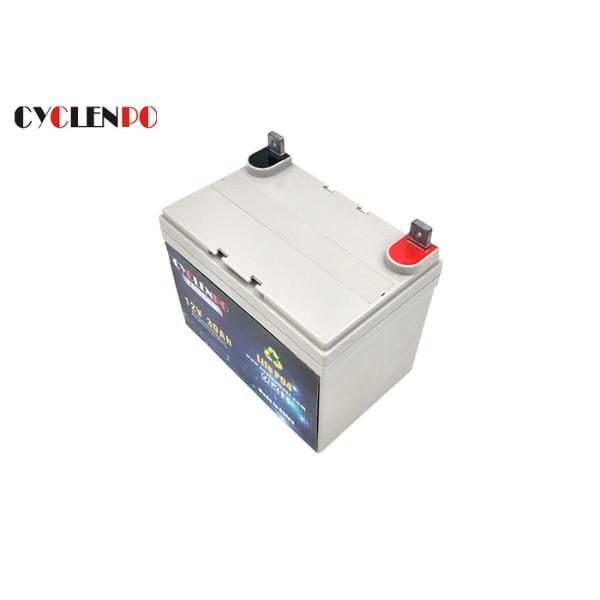

12v 30ah Deep Cycle Li Ion Lifepo4 Battery for Lighting and Three Wheel Car

About lithium iron phosphate battery

lithium iron phosphate battery advantage:
Safety: iron phosphate is the safest lithium-ion battery cathode material, not burining and explosion.
Long Cycle Life: Can charge and discharge more than 3000 times.
Environmental Protection: lithium iron phosphate battery does not contain any harmful heavy metal elements,

pollution-free both in production and actual use.

NO
Item
General Parameter
1
Typical Capacity
30.0Ah @ 0.2C Discharge
2
Standard capacity(0.2C5A)
30.0Ah @ 0.2C Discharge
3
Nominal voltage
12.8V
4
Standard Charge
CC/CV,0.2C 5 A,14.6V
5
Standard Discharge
CC,0.2C 5 A, 10.0V
6
Cut-off voltage
14.6V±0.1V
8
End-of-charge Current
0.02C 5 A (At CV mode)
9
Quick Charge Current
15A (0.5C5rate)
10
Quick Discharge Current
30A (1.0C5rate)
11
Max Discharge Current
60A (2.0C5rate)
12
Battery dimension
L265*W166*H210mm
13
(Approx.)Total weight(Approx.)
About 4.5kg
14
Operating temperature
Charging: 0℃~45℃
Discharging:-20℃~60℃
15
Storage temperature
-5℃~35℃
16
Storage Humidity
≤75% RH
17
Appearance
Without scratch, distortion, contamination and leakage
18
Standard environmental condition
Temperature : 25±2℃
Humidity : 45-75%RH
Atmospheric Pressure : 86-106 KPA
19
(Max, at 1000Hz.)Impedance(Max, at 1000Hz.)
≤ 180mΩ
20
(CC/CV)
Charge method (CC/CV)
Standard
discharge
storage

Why Choose US

1. Provide OEM&ODM services with various designs.
2. Complete production lines, reliable quality, factory direct price.
3. 100% test before shipping, fast delivery with solid package.
4. Timely and professional pre-sales service and after-sales service.


FAQ

1. Where can I get the price?
Please Click Contact Now or Request a Quote. We will offer you the best quote in 24 hours after we get

the product specifications such as voltage capacity application etc.

2. How can you guarantee your quality?
Normally we will send you a sample to confirm everything first. We will make the big order exactly

the same as you request. And we offer 1 year warranty for small battery packs, 2-3 years for battery

packs of large capacity.

3. What about the lead time for mass production?
It depends on your order quantity.Normally 2-5 days if we have sample in stock, 5-10 days for
newly produced samples.10-20 day for big order.

4. What shipping method can I choose? How about the shipping time?
By Express (3-7 working days), suitable for urgent time or small quantity.
By Sea (15-30 days), it suitable for mass production.
By Air (4-7 days), from airport to airport.

5. What is your term for payment?
We accept T/T,L/C,Paypal, Western Union,Money Gram,Ali Express,Cash,etc.
