Specifications
Brand Name :
Cyclenpo
Model Number :
LFP-24v10ah
Certification :
CE ROHS UN38.3 MSDS
Place of Origin :
Shenzhen,China
MOQ :
30 Pieces
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
1~2weeks for samples; 3~4weeks for mass production
Packaging Details :
One battery in one carton box,filled with epe foam at the bottom and on the top.
Cell Type :
26650 3.2v
Cycle Life :
>2000 times
Max Continuous Discharge Current :
20A
Warranty :
1 Years
Application :
Solar, electric vehicles, etc
Weight :
2.7±0.1kg
Description

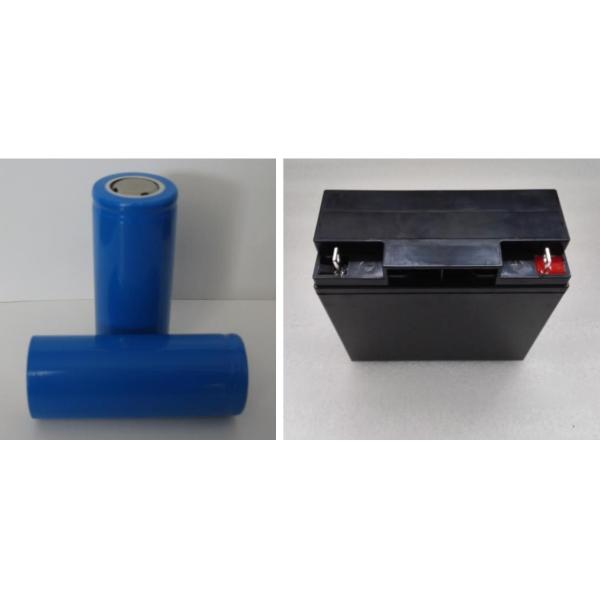

Small Battery 24v 10Ah Lipo Lifepo4 Battery for Vehicle or Solar Energy Storage

Benifits Of Lifepo4 Battery Comparing with Lead Acid Battery

1. Superior “Useable” capacity. Unlike 30%-50% useable capacity, lifepo4 can be up to 85% or more.

2. Longer lifespan. 10 times longer than lead acid batteries.

3. Fast Charged. Fast charged to 100% of capacity, and a failure to fully charge does not damage the batteries.

4. Highly Efficiency. Almost no loss in amps while charging and discharging.

5. Less size and weight. Save up to 70% in size and weight.

6. Environmental friendly. Lifepo4 battery is the superior friendly option in terms of environmental impact.

Items
Parameters
Norminal Voltage
25.6v
Typical capacity
10±0.5ah(at 0.2C discharge rate)
Discharge
Normal current
10A
Max continuous current
20A(≤5min)
Cut of voltage
About 20v
Charge
Voltage
28.8±0.15v
Curent
≤2A
Charge Mode
CC/CV Please use special lithium charger
Inner Resistance
Discharging Inner Resistance
≤120mΩ

Operation Temperature/Humidity range

Charge
0-45°C
Discharge
-20°C-60°C (When the environment temperature is higher than 45°C,please pay attention to ventilation and heat rejection.)
Humidity
RH≤85%,When the environment humidity is higher than 85%,please pay attention to protect
Storage Temperature/Humidity range
Temperature
0°C-40°C (Capacity 80% )Recommended long term storage temperature is 15-25°C
Humidity
RH ≤50% Easily oxidized components note sealed
Protection Function
Overcharge,over discharge,over current,temperature protection,Balanced function
Shell Material
Plastic
Weight
2.7±0.1kg
Size
(181±1)mm*(165±2)mm*(76±1)mm
Cycle
>1500 cycle (80%DOD)

Why Choose US

1. Provide OEM&ODM services with various designs.
2. Complete production lines, reliable quality, factory direct price.
3. 100% test before shipping, fast delivery with solid package.
4. Timely and professional pre-sales service and after-sales service.


FAQ

1. Where can I get the price?
Please Click Contact Now or Request a Quote. We will offer you the best quote in 24 hours after we get

the product specifications such as voltage capacity application etc.

2. How can you guarantee your quality?
Normally we will send you a sample to confirm everything first. We will make the big order exactly

the same as you request. And we offer 1 year warranty for small battery packs, 2-3 years for battery

packs of large capacity.

3. What about the lead time for mass production?
It depends on your order quantity.Normally 2-5 days if we have sample in stock, 5-10 days for
newly produced samples.10-20 day for big order.

4. What shipping method can I choose? How about the shipping time?
By Express (3-7 working days), suitable for urgent time or small quantity.
By Sea (15-30 days), it suitable for mass production.
By Air (4-7 days), from airport to airport.

5. What is your term for payment?
We accept T/T,L/C,Paypal, Western Union,Money Gram,Ali Express,Cash,etc.

Lightweight 24v 10ah Lifepo4 Battery Pack , 24v Lithium Battery Anti Extrusion For Vehicle
