100ah Lifepo4 12 Volt Deep Cycle Battery , 12 Volt Lithium Iron Phosphate Battery For Lead Acid Replacement
100ah Lifepo4 12 Volt Deep Cycle Battery , 12 Volt Lithium Iron Phosphate Battery For Lead Acid Replacement
100ah Lifepo4 12 Volt Deep Cycle Battery , 12 Volt Lithium Iron Phosphate Battery For Lead Acid Replacement
100ah Lifepo4 12 Volt Deep Cycle Battery , 12 Volt Lithium Iron Phosphate Battery For Lead Acid Replacement
100ah Lifepo4 12 Volt Deep Cycle Battery , 12 Volt Lithium Iron Phosphate Battery For Lead Acid Replacement
100ah Lifepo4 12 Volt Deep Cycle Battery , 12 Volt Lithium Iron Phosphate Battery For Lead Acid Replacement
Specifications
Brand Name :
Cyclenpo
Model Number :
LFP-12v100ah
Certification :
CE MSDS UN38.3 ROHS
Place of Origin :
Shenzhen,China
MOQ :
10 pieces
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
2~3weeks for samples; 4~6weeks for mass production
Packaging Details :
One battery in one carton box,filled with epe foam at the bottom and on the top.
Cell Type :
LifePo4 3.2v 100ah
Composed Type :
4S1P
Cycle Life :
>3000 times
Max Continuous Discharge Current :
100A/175A Customized
Warranty :
2 Years
Application :
Motorhome,Boat,Golf Carts,Solar PV Lighting etc
Description

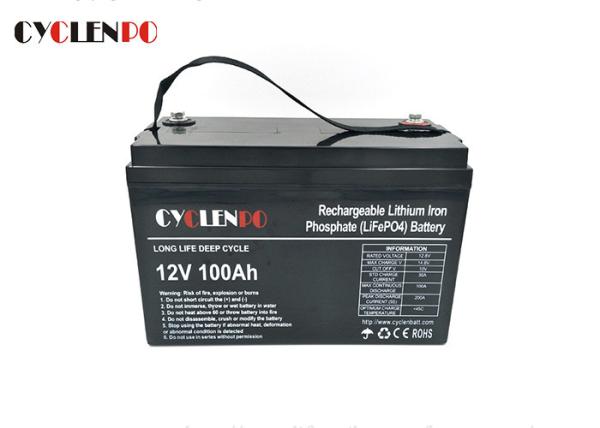

12v 100ah Lifepo4 Lithium Iron Phosphate Battery for Lead Acid Replacement


Lifepo4,also called lithium iron phosphate,is a new green battery material. With the advantages of high energy
density, low self-discharge,long cycle life,small size and light weight, lifepo4 battery is gradually replacing lead
acid and gel battery. It is more cost effective in long term consideration.


Whether you are looking for a standalone lithium battery, or whether you need us to customize a battery pack to
certain specifications; we have the technology and expertise to deliver to your specifications.

Item
General Parameter
Remark
Model
ATL 3.2V 100AH
Single
Casing material for single cell
Nickel plated steel
Standard capacity(0.2C5A)
100Ah
Rated voltage
12.8V
Work voltage:3.20V
Max.Charge voltage
14.6V
Single Ave. charge Voltage 3.65V
Cut-off voltage
10V
Single Ave. Discharge Voltage 2.5V
Standard charge current
50A
0.5C
Charging Time
About 5h
Max Continuous discharge current
100A
1C
Peak discharge current
200A
2C (5seconds)
Battery dimension
328±1*171±1*215±1mm
Total weight(Approx.)
About 15kg
Impedance(Max, at 1000Hz.)
≤ 45mΩ
Charge method (CC/CV)
Standard
0℃～45℃
discharge
-20℃～65℃
storage
-20℃～45℃



Features of our lifepo4 battery pack


1.Bulit in BMS.Provides overall protection and battery obtains independent balancing function.
2.Capable to deliever high discharge current. Max discharge current 175A,up to 320A.
3.Can be connected in series and parallel
4.Have passed different tests.No explosion,no smoke,no leakage.
5.Bluetooth function can be added to read battery status.


Application


Widely used in RV, camping car, marine,boat,golf carts,sightseeing cars,solar backup,solar pv light and
other lead acid replacement.


FAQ

1. Where can I get the price?


Please Click Contact Now or Request a Quote. We will offer you the best quote in 24 hours after we get the product

specifications such as voltage capacity application etc.

2. How can you guarantee your quality?


Normally we will send you a sample to confirm everything first. We will make the big order exactly

the same as you request. And we offer 1 year warranty for small battery packs, 2-3 years for battery

packs of large capacity.

3. What about the lead time for mass production?


It depends on your order quantity.Normally 2-5 days if we have sample in stock, 5-10 days for
newly produced samples.10-20 day for big order.

4. What shipping method can I choose? How about the shipping time?


By Express (3-7 working days), suitable for urgent time or small quantity.
By Sea (15-30 days), it suitable for mass production.
By Air (4-7 days), from airport to airport.

5. What is your term for payment?


We accept T/T,L/C,Paypal, Western Union,Money Gram,Ali Express,Cash,etc.
