2.0KG 12v Deep Cycle Golf Cart Battery Max Continuous Discharge Current 44A No Fire
2.0KG 12v Deep Cycle Golf Cart Battery Max Continuous Discharge Current 44A No Fire
2.0KG 12v Deep Cycle Golf Cart Battery Max Continuous Discharge Current 44A No Fire
2.0KG 12v Deep Cycle Golf Cart Battery Max Continuous Discharge Current 44A No Fire
2.0KG 12v Deep Cycle Golf Cart Battery Max Continuous Discharge Current 44A No Fire
2.0KG 12v Deep Cycle Golf Cart Battery Max Continuous Discharge Current 44A No Fire
Specifications
Brand Name :
Cyclenpo
Model Number :
LFP-12v22ah
Certification :
CE MSDS UN38.3 ROHS
Place of Origin :
Shenzhen,China
MOQ :
30 pieces
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
1~2weeks for samples; 3~4weeks for mass production
Packaging Details :
One battery in one carton box,filled with epe foam at the bottom and on the top.
Type :
Lifepo4
Warranty :
1 year
Cut off voltage :
9V
Max Continuous discharge current :
44A
Weight :
About 2.0KG
Storage temperature :
-5℃~35℃
Description

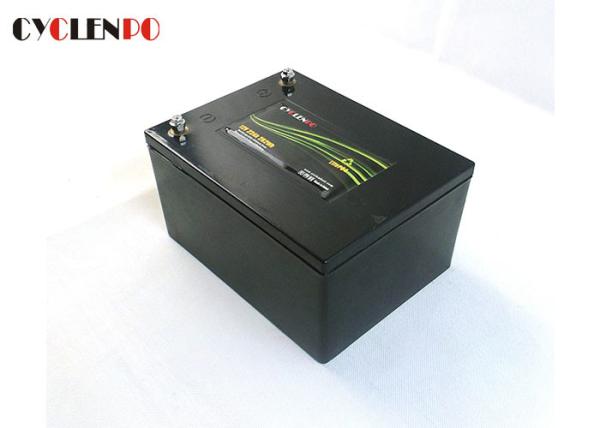

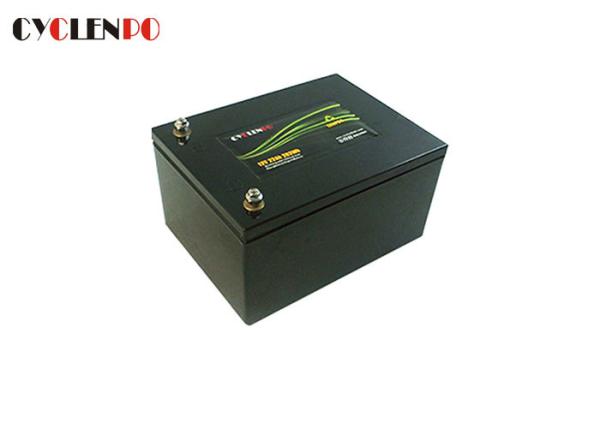

Deep Cycle Lifepo4 12v 22ah Lithium Ion Battery Pack for Golf Trolley

This 12v 22ah lifepo4 module is typically used for golf carts.These lifepo4 batteries are superior compared to

lead acid batteries because of their advanced features:

1. Maintenance-Free Design
2. Low Self Discharge
3. Long Designed service Life ,Deep Cycles
4. Excellent Discharge Performance
5. Environment Friendliness
6. Wide suitability of ambient temperature range

Parameters

NO.

 Item Specifications
1 Typical Capacity 22Ah @ 0.2C Discharge
Minimum capacity 22Ah @ 0.2C Discharge
2 Nominal voltage 12.8V
3 Standard Charge CC/CV,0.2C5A,12.6V
4 Standard Discharge CC,0.2C5A, 9.00V
5 End-of-charge Voltage 12.6V±0.1V
6 End-of-charge Current 0.02C5A (At CV mode)
7 End-of-discharge Voltage 9.00 V
8 Charging Time 8.0hours(standard charge)
9 Quick Charge Current 11A (0.5C5rate)
10 Quick Discharge Current 22A (1.0C5rate)
11 Max Discharge Current 44A (2.0C5rate)
12 Initial Impedance Max: 180mW
13 Weight Approx:2.0Kg
14 Operating temperature

Charging: 0℃~45℃

Discharging:-20℃~60℃
15 Storage temperature -5℃~35℃
16 Storage Humidity ≤75% RH
17 Appearance Without scratch, distortion, contamination and leakage
18

Standard environmental condition

Temperature : 25±2℃

Humidity : 45-75%RH

Atmospheric Pressure : 86-106 KPA

Why Choose US

1. Provide OEM&ODM services with various designs.
2. Complete production lines, reliable quality, factory direct price.
3. 100% test before shipping, fast delivery with solid package.
4. Timely and professional pre-sales service and after-sales service.


FAQ

1. Where can I get the price?
Please Click Contact Now or Request a Quote. We will offer you the best quote in 24 hours after we get

the product specifications such as voltage capacity application etc.

2. How can you guarantee your quality?
Normally we will send you a sample to confirm everything first. We will make the big order exactly

the same as you request. And we offer 1 year warranty for small battery packs, 2-3 years for battery

packs of large capacity.

3. What about the lead time for mass production?
It depends on your order quantity.Normally 2-5 days if we have sample in stock, 5-10 days for
newly produced samples.10-20 day for big order.

4. What shipping method can I choose? How about the shipping time?
By Express (3-7 working days), suitable for urgent time or small quantity.
By Sea (15-30 days), it suitable for mass production.
By Air (4-7 days), from airport to airport.

5. What is your term for payment?
We accept T/T,L/C,Paypal, Western Union,Money Gram,Ali Express,Cash,etc.
