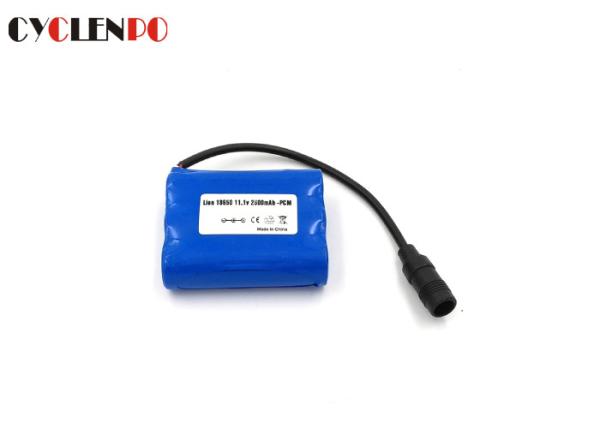

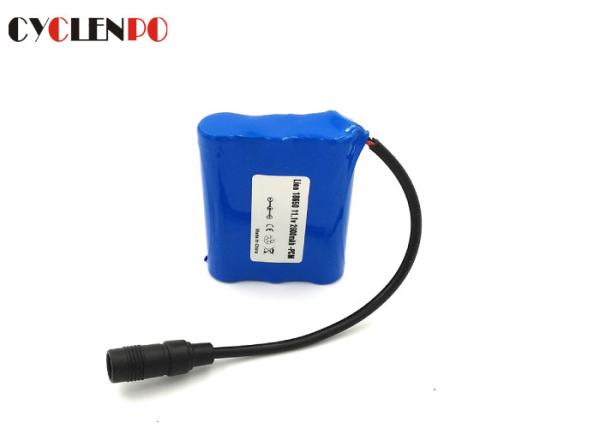

3s1p 18650 Rechargeable Lithium Ion Battery Pack Portable Deep Cycle 11.1v 2600mah
3s1p 18650 Rechargeable Lithium Ion Battery Pack Portable Deep Cycle 11.1v 2600mah
3s1p 18650 Rechargeable Lithium Ion Battery Pack Portable Deep Cycle 11.1v 2600mah
3s1p 18650 Rechargeable Lithium Ion Battery Pack Portable Deep Cycle 11.1v 2600mah
Specifications
Brand Name :
Cyclenpo
Model Number :
11.1v 2600mah
Certification :
CE ROHS UN38.3 MSDS
Place of Origin :
Shenzhen,China
MOQ :
50
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union, T/T, MoneyGram
Supply Ability :
150000 pieces per month
Delivery Time :
1~2weeks for samples; 3~6weeks for mass production
Packaging Details :
Standard carton box packing,filled with epe foam.
Assembly pack :
3s1p
Initial Impedance :
Max:260
Storage Humidity :
≤75% RH
Standard Charge :
CC/CV,0.2C5A, 12.60V
Charging Time :
5 hours
Spare parts :
connector, wires pcb
Description

Rechargeable deep cycle 3s1p 18650 11.1v 2600mah lithium ion battery pack

Feature

  • Environmental Friendly Chemistry
  • Factory price & High quality
  • High Power Density
  • Fast Charge Capability
  • Easy to assemble with mounted connectors (Molex, Tyco and so on).
  • Can customize Dimension, Capacity, Discharge Current and more

Main Application

1 ) Tags, plugs and connectors are available


2 ) GPS Tracker, Electric Toy,Smart Watch,Bluetooth


3 ) Small Solar System,Smart small appliances


4 ) Lightings: Solar Street Light, LED lights,Lawn Lamp,Miner's lamp etc..


5 ) Medical Equipment


6 ) Portable Devices:GPS,PDA,E-book,PMP,PSP,laptop,walkie-talkies, portable medical device,etc.

NO.

Item

Specifications

1

Typical Capacity

2600mAh @ 0.2C Discharge

Minimum capacity

2580mAh @ 0.2C Discharge

2

Nominal voltage

11.1V

3

Standard Charge

CC/CV,0.2C5A, 12.60V

4

Standard Discharge

CC,0.2C5A, 9.00V

5

End-of-charge Voltage

12.60V±0.05V

6

End-of-charge Current

0.02C5A (At CV mode)

7

End-of-discharge Voltage

9.00 V

8

Charging Time

8.0hours(standard charge)

9

Quick Charge Current

2600mA (1.0C5rate)

10

Quick Discharge Current

5200mA (2.0C5rate)

11

Max Discharge Current

7800mA (3.0C5rate)

12

Initial Impedance

Max:260mW

13

Weight

Approx:142±2g

14

Operating temperature

Charging: 0℃~45℃

Discharging:-20℃~60℃

15

Storage temperature

-5℃~35℃

16

Storage Humidity

≤75% RH

17

Appearance

Without scratch, distortion, contamination and leakage

18

Standard environmental condition

Temperature : 25±2℃

Humidity : 45-75%RH

Atmospheric Pressure : 86-106 KPA

19

Temperature Dependence of Discharge Capacity

@ 0.2C Discharge

Charge temperature

Discharge temperature

25℃

-10℃

0℃

15℃

25℃

40℃

Relative Capacity

50%

80%

90%

100%

100%
